Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
8.0 Outside park Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 5/5/2005 End: 20/7/2005 Person Days: 5.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: West Interior Year 2005
Condition

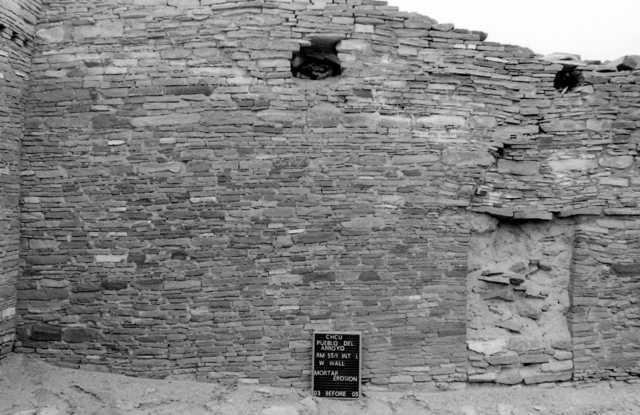

Photo type: Before 76358
Image #: 076358
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor

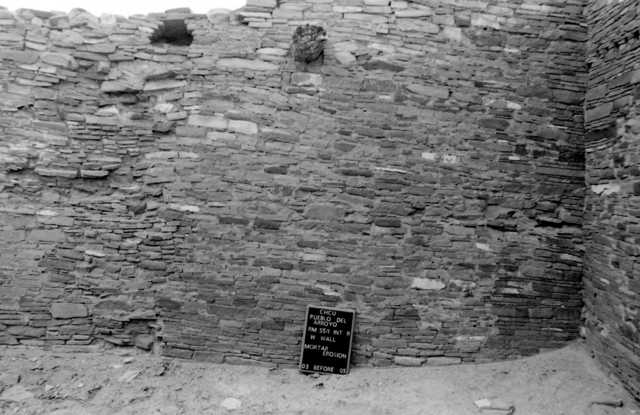

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: West Interior Year 2005
Condition
Photo type: Before 76357
Image #: 076357
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: West Interior Year 2005
Treatment

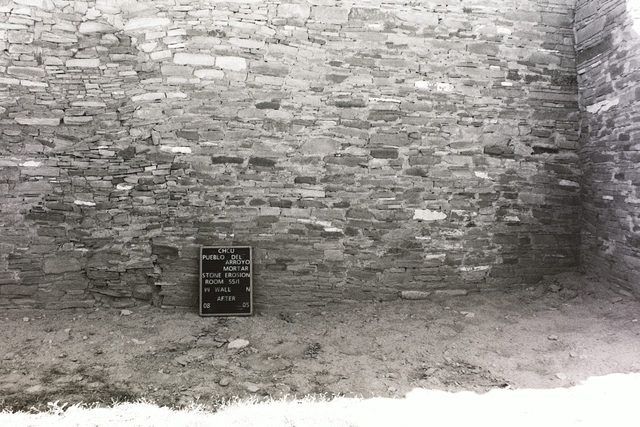

Photo type: After 76663
Image #: 076663
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 26.0
Stone replaced (#): 3.0
Mortar (# buckets): 0.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Replaced Mortar

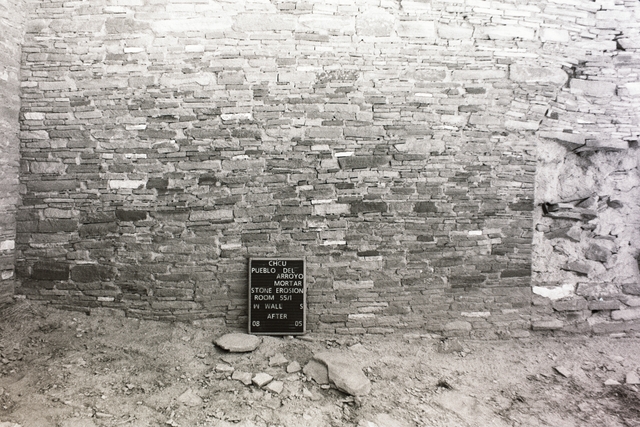

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: West Interior Year 2005
Treatment
Photo type: After 76662
Image #: 076662
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 26.0
Stone replaced (#): 3.0
Mortar (# buckets): 0.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Replaced Mortar

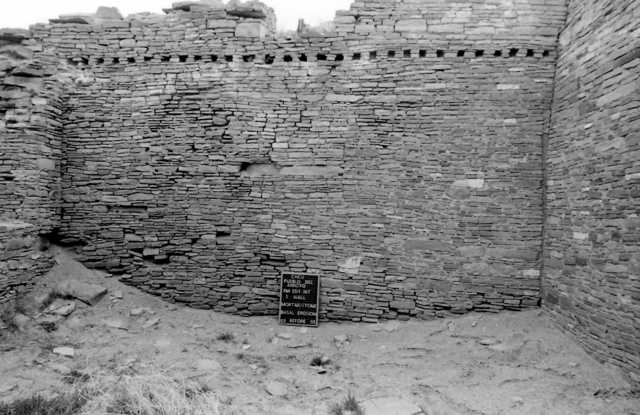

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: South Interior Year 2005
Condition
Photo type: Before 76355
Image #: 076355
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: South Interior Year 2005
Treatment

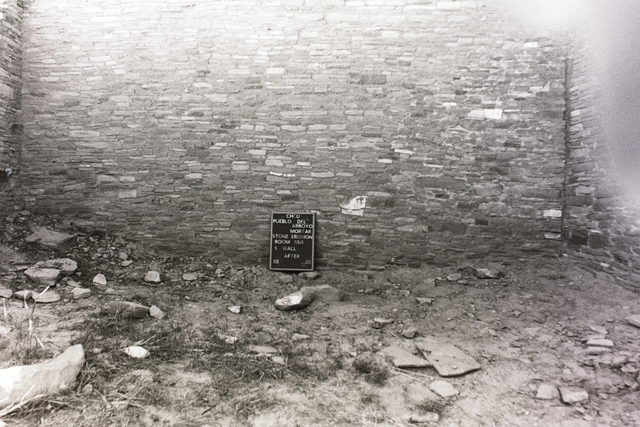

Photo type: After 76661
Image #: 076661
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 17.0
Stone replaced (#): 22.0
Mortar (# buckets): 5.0
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Replaced Stone(s)
     Repaired Basal erosion (mortar/stone)
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: East Interior Year 2005
Condition

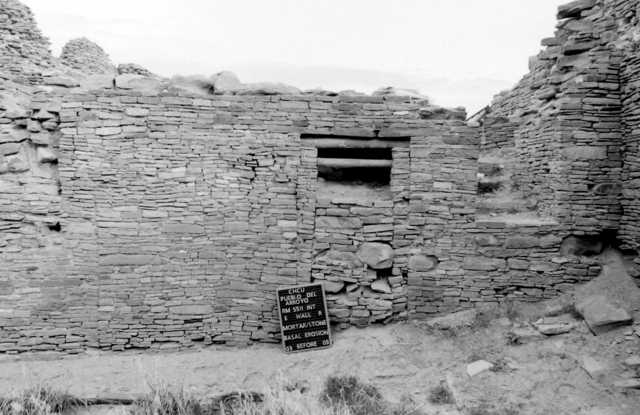

Photo type: Before 76353
Image #: 076353
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor
     Mortar Erosion Poor

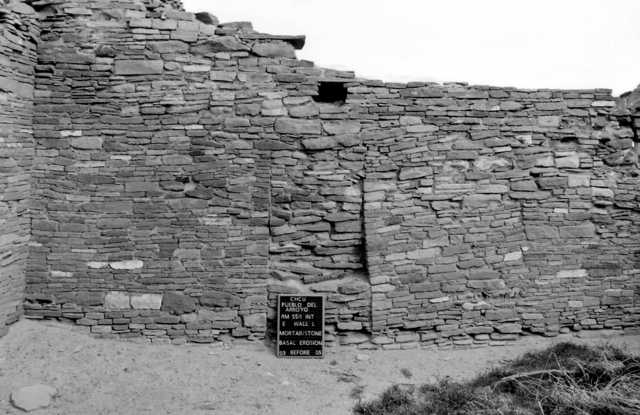

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: East Interior Year 2005
Condition
Photo type: Before 76354
Image #: 076354
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor
     Mortar Erosion Poor

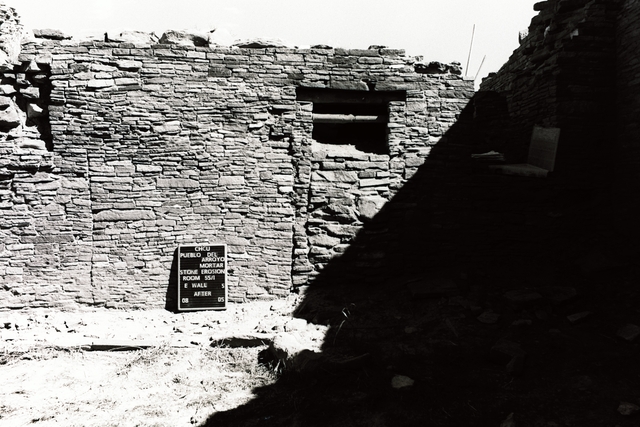

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: East Interior Year 2005
Treatment
Photo type: After 76660
Image #: 076660
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 22.0
Masonry: 9.0
Stone replaced (#): 39.0
Mortar (# buckets): 3.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Stone(s)
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: East Interior Year 2005
Treatment
Photo type: After 76659
Image #: 076659
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 22.0
Masonry: 9.0
Stone replaced (#): 39.0
Mortar (# buckets): 3.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Stone(s)
     Replaced Mortar

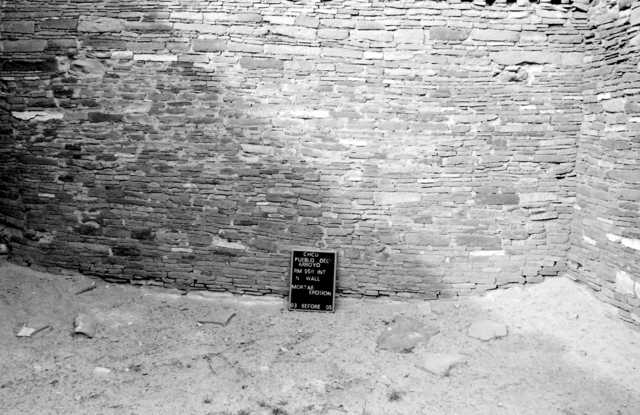

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76356
Image #: 076356
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Story: 1st Story Wall: North Interior Year 2005
Treatment

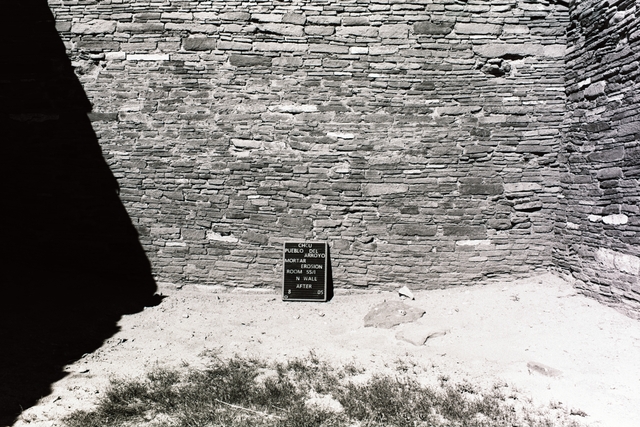

Photo type: After 76658
Image #: 076658
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 18.0
Stone replaced (#): 5.0
Mortar (# buckets): 0.25
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Year 2005
Backfill
Start: 29/8/2005 End: 30/8/2005 Person days: 2
Comments:
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

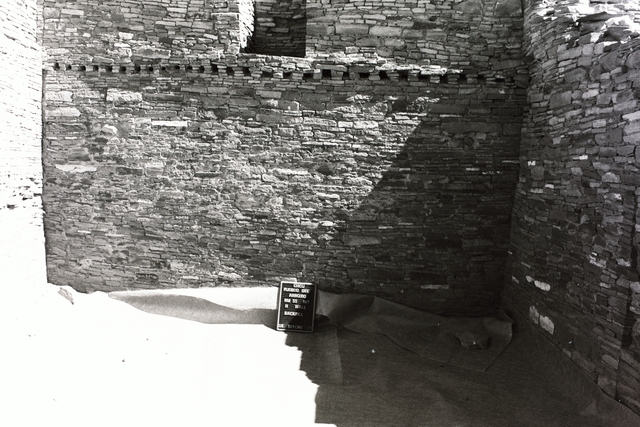

Photo type: Before Backfill 76669
Image #: 076669
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

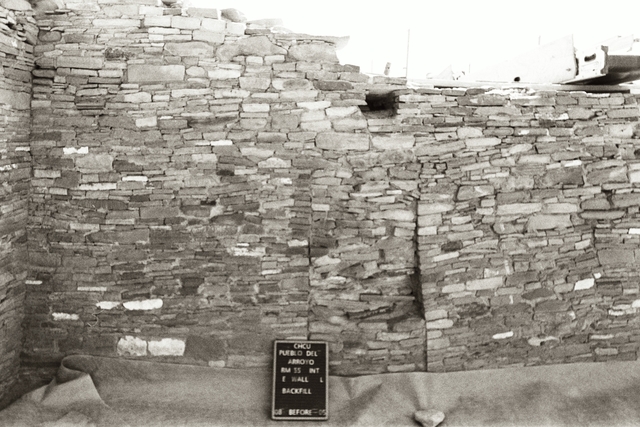

Photo type: Before Backfill 76670
Image #: 076670
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

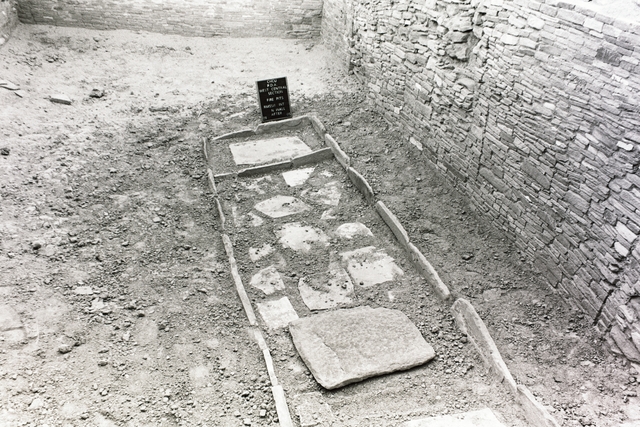

Photo type: During Backfill 76595
Image #: 076595
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

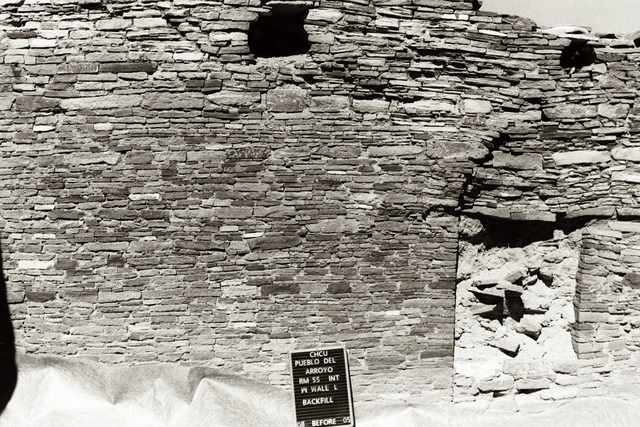

Photo type: Before Backfill 76672
Image #: 076672
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

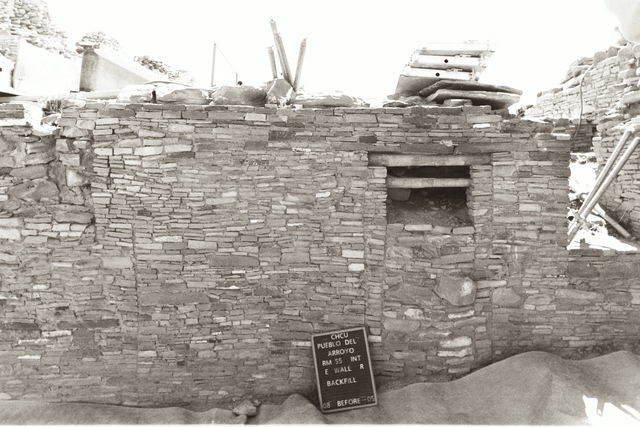

Photo type: Before Backfill 76671
Image #: 076671
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

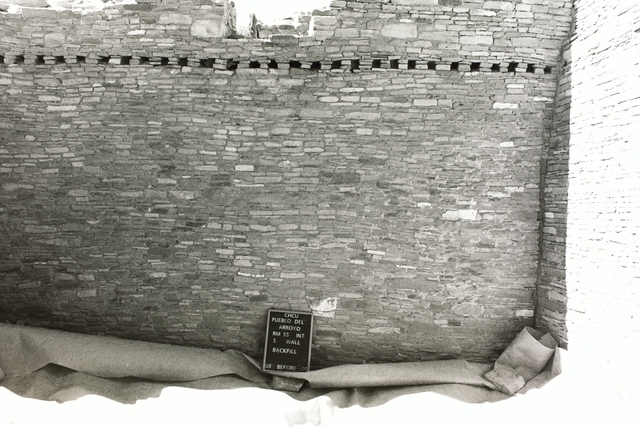

Photo type: Before Backfill 76668
Image #: 076668
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill
Photo type: Before Backfill 76672
Image #: 076673
Catalog #:        Accession #: 801

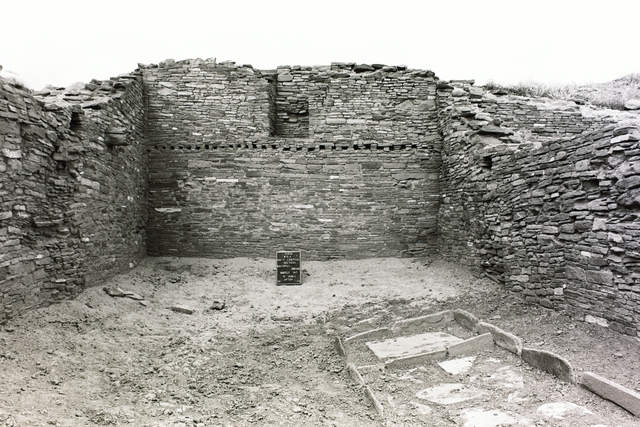

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill
Photo type: During Backfill 76615
Image #: 076615
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

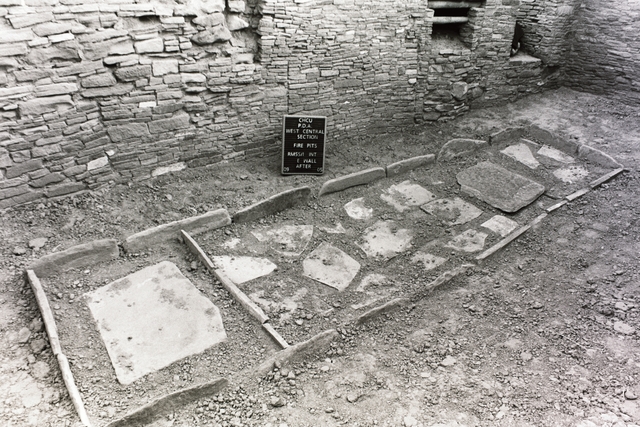

Photo type: During Backfill 76596
Image #: 076596
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

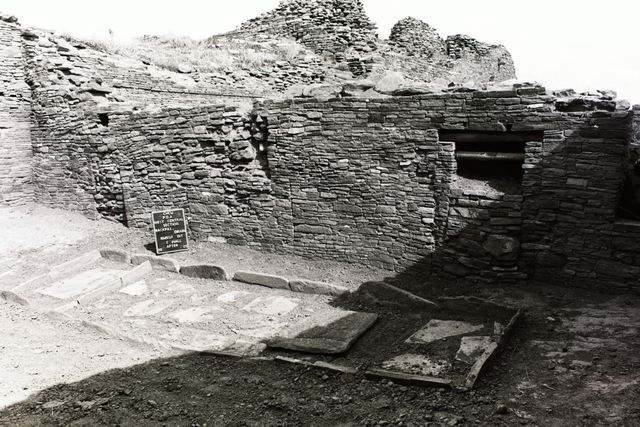

Photo type: During Backfill 76616
Image #: 076616
Catalog #:        Accession #: 801

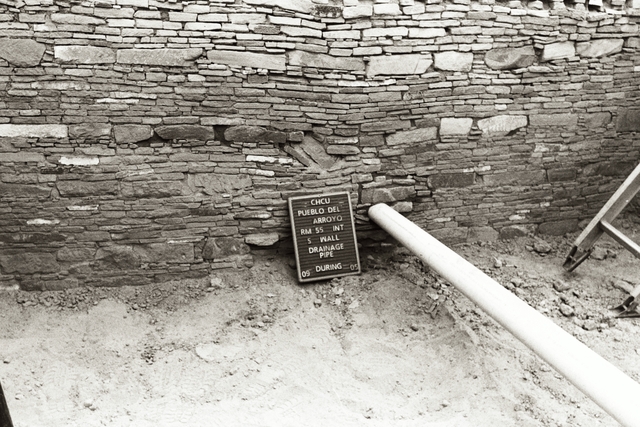

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill
Photo type: During Backfill 76685
Image #: 076685
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

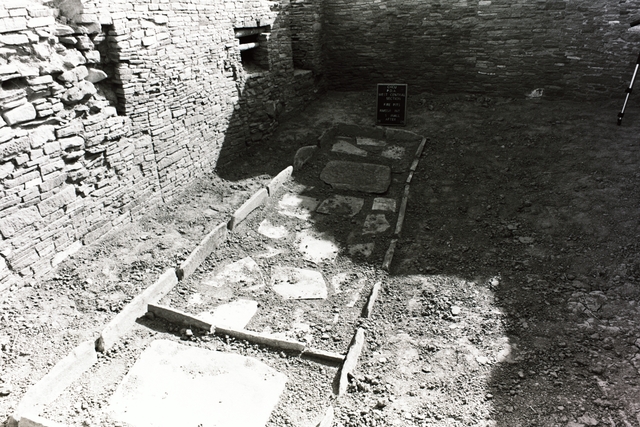

Photo type: During Backfill 76597
Image #: 076597
Catalog #:        Accession #: 801

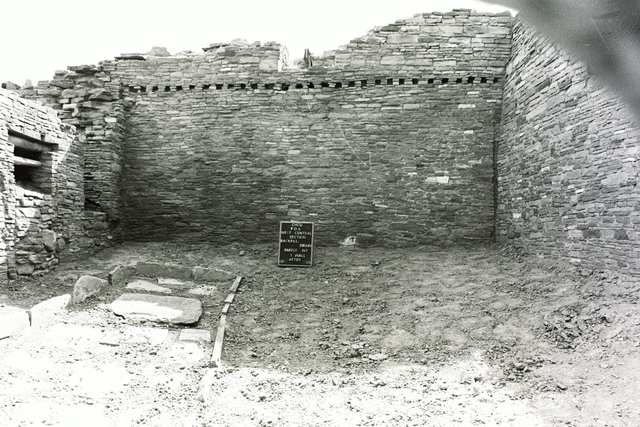

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill
Photo type: During Backfill 76617
Image #: 076617
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

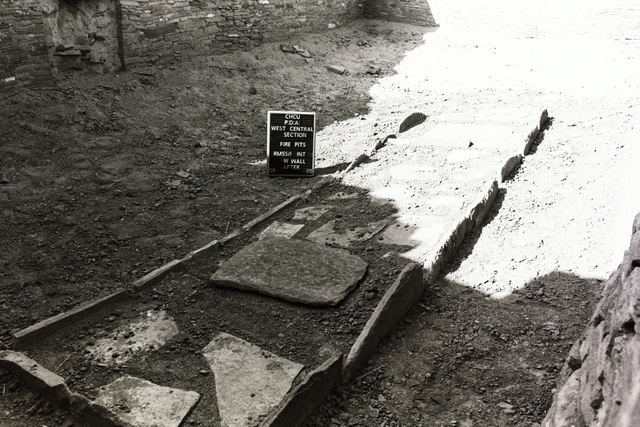

Photo type: During Backfill 76598
Image #: 076598
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 55 Wall: Year 2005
Backfill

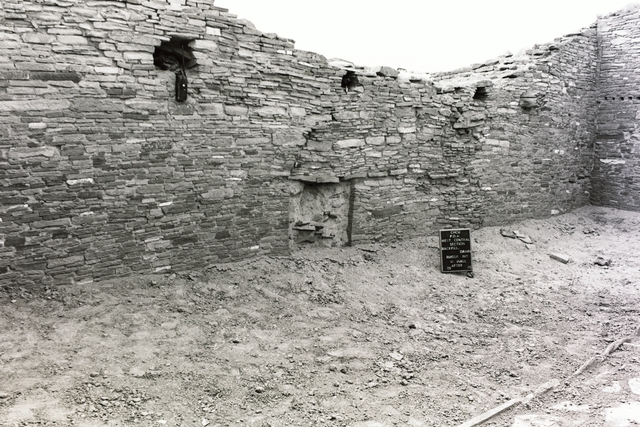

Photo type: After Backfill 76594
Image #: 076594
Catalog #:        Accession #: 801
