Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Story: 2nd Story Year 2013
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
Dirt Duraweld C (1:4)
Sand Duraweld (other)
Clay
Comments:
Walls recorded: North, East
Start: 27/8/2013 End: 28/8/2013 Person Days: 2.0

Overall Comments:

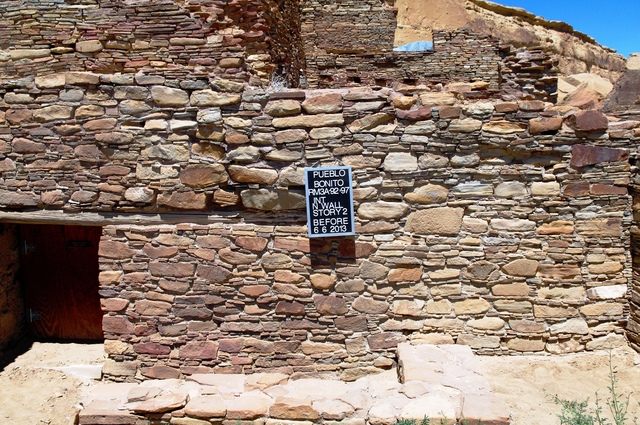

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Story: 2nd Story Wall: North Interior Year 2013
Condition
Photo type: Before 118508
Image #: 118508
Catalog #:        Accession #: 880
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor

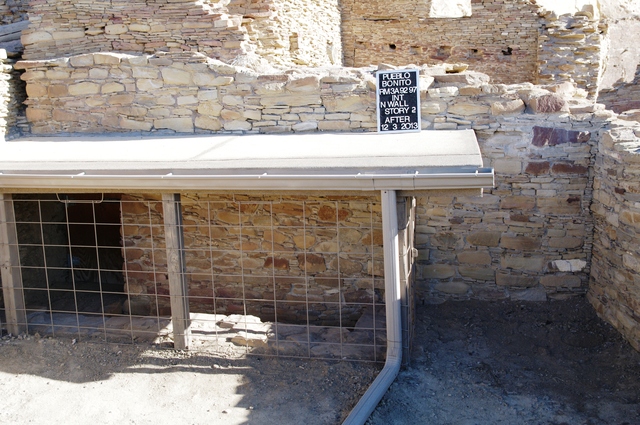

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Story: 2nd Story Wall: North Interior Year 2013
Treatment
Photo type: After 118619
Image #: 118619
Catalog #:        Accession #: 880
Treatment:
Basal Wall Repair:
Repointing (sq ft): 25.0
Mortar (# buckets): 1.75

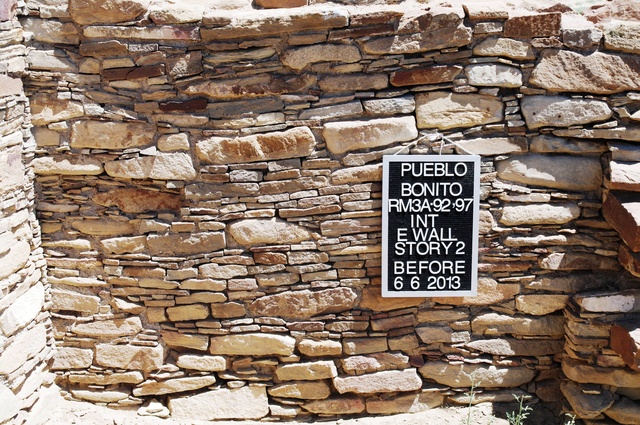

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Story: 2nd Story Wall: East Interior Year 2013
Condition
Photo type: Before 118509
Image #: 118509
Catalog #:        Accession #: 880
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor

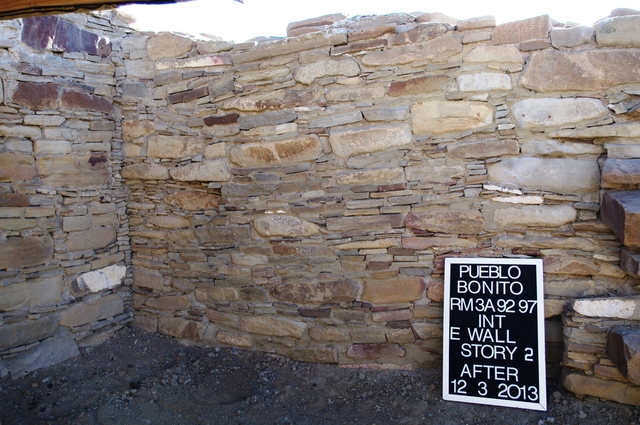

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Story: 2nd Story Wall: East Interior Year 2013
Treatment
Photo type: After 118620
Image #: 118620
Catalog #:        Accession #: 880
Treatment:
Basal Wall Repair:
Repointing (sq ft): 20.0
Mortar (# buckets): 1.5







Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Year 2013
Backfill
Start: 16/7/2013 End: 17/7/2013 Person days: 8
Comments: A roof shelter was built to cover a stairway leading to lower rooms. The shelter was gated and locked for protection. A gutter was added onto the edge of the roof which drains to an inlet installed in the middle of the room. The inlet drains to a basin installed in Room 108. Before the room was backfilled, a 3' x 12" x 2" wall was built between the west wall and the exterior western wall of the stairway. Another wall (18" x 6" x 12") was built between the north wall and the exterior northern wall of the stairway. The existing wall in the doorway on the west wall was rebuilt, this wall covers the drainage pipe. The room was backfilled with dirt, the backfill was placed all around the room and sloped downward at a 2-5% grade to the center of the room. The crew hauled 4 bucket loads of dirt in the Bobcat.
Specific Information
Cubic yards of fill: 45.0
Backfill source type:
Backfill other:
Cloth barrier type:
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: 1 Other: Other type:
Joint:
Y: 90: 1 45: 1 22: Other: Other type:
Drain pipe length: 10 feet      Drain pipe diameter: inches
Avgerage height above geotextile: 1.0 feet
Drain pipe enters room through: Originates in Room      Other:
Drain pipe leaves room through: Doorway      Other:
Drain pipe leaves goes to: 108
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note:

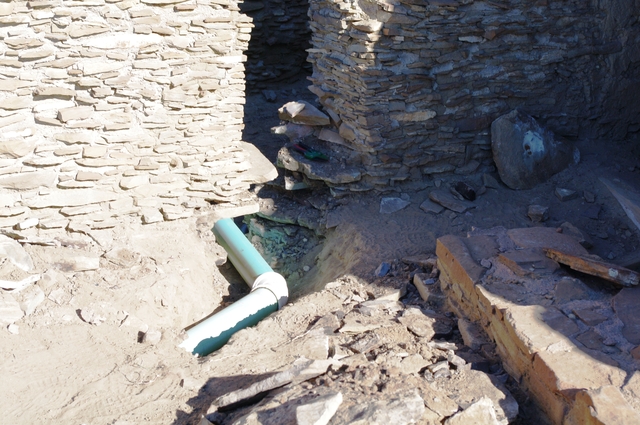

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: West Year 2013
Backfill
Photo type: During Backfill 118690
Image #: 118690
Catalog #:        Accession #: 880

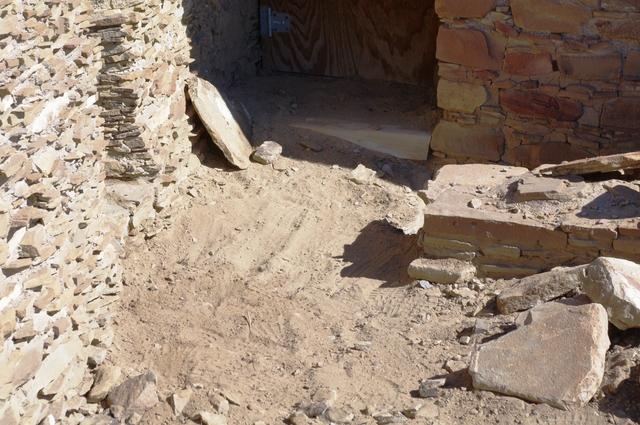

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: West Year 2013
Backfill
Photo type: During Backfill 118693
Image #: 118693
Catalog #:        Accession #: 880

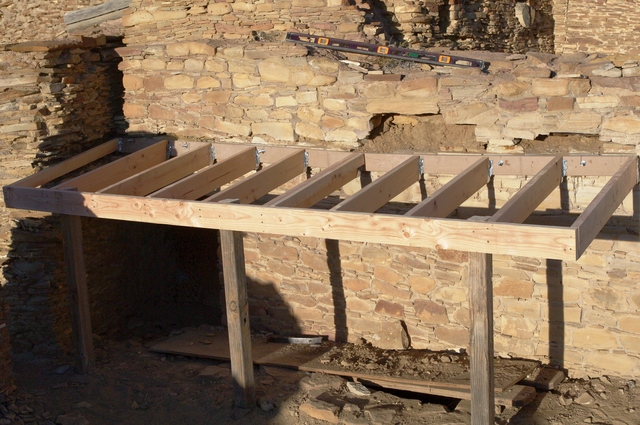

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: During Backfill 118696
Image #: 118696
Catalog #:        Accession #: 880

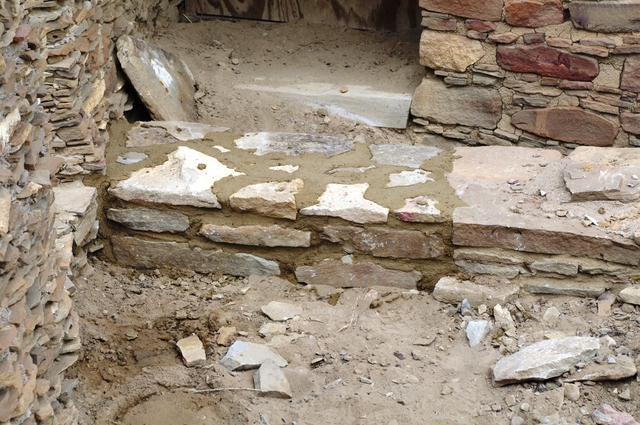

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: During Backfill 118695
Image #: 118695
Catalog #:        Accession #: 880

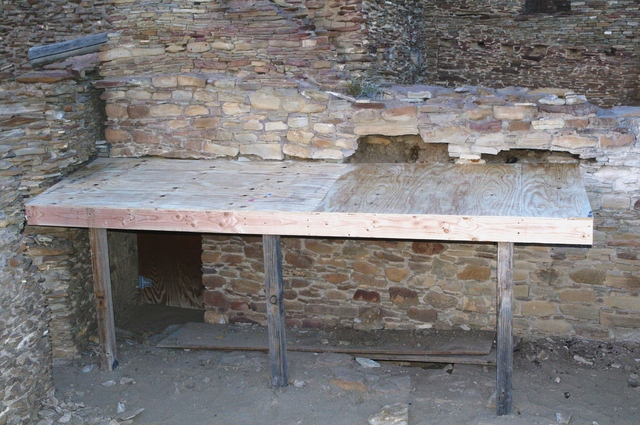

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: During Backfill 118697
Image #: 118697
Catalog #:        Accession #: 880

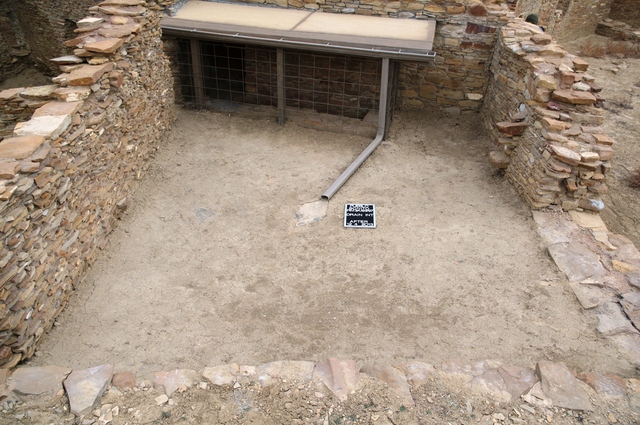

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: All Year 2013
Backfill
Photo type: After Backfill 118677
Image #: 118677
Catalog #:        Accession #: 880

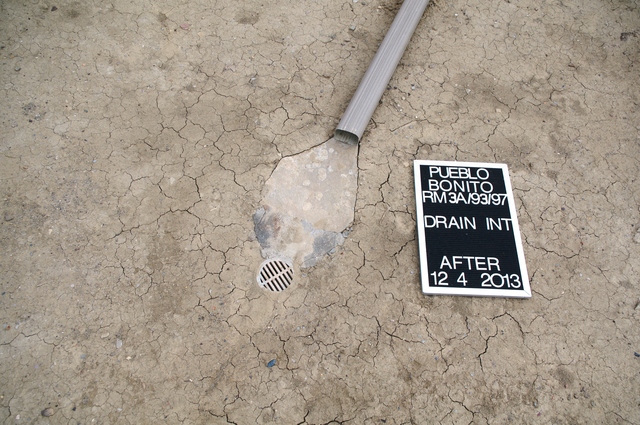

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: Floor Year 2013
Backfill
Photo type: After Backfill 118678
Image #: 118678
Catalog #:        Accession #: 880

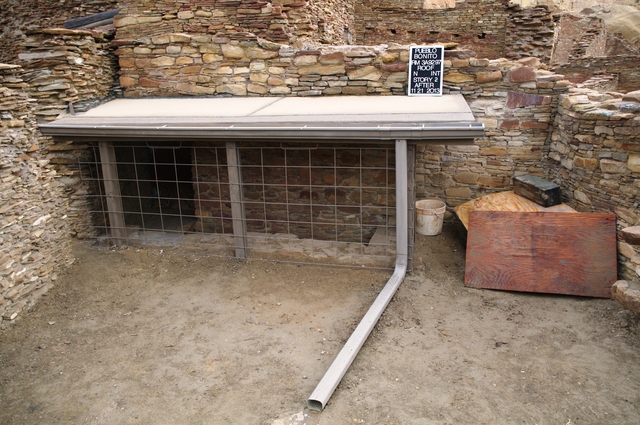

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: After Backfill 118687
Image #: 118687
Catalog #:        Accession #: 880

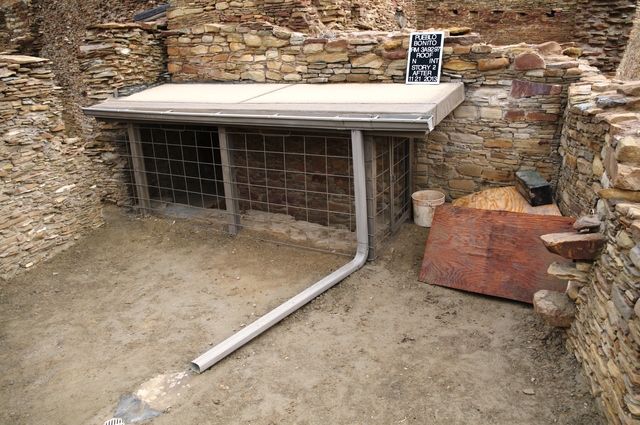

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: After Backfill 118688
Image #: 118688
Catalog #:        Accession #: 880

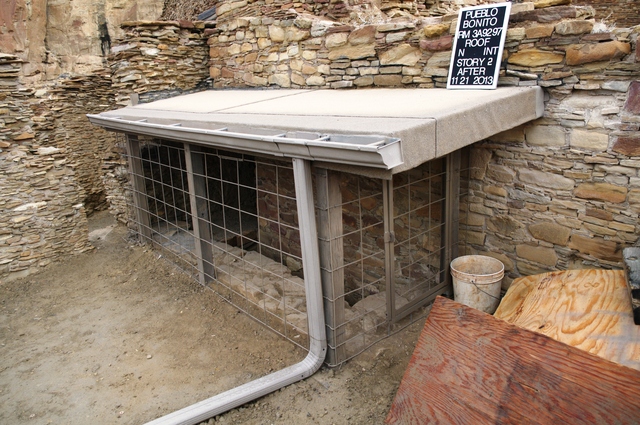

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: After Backfill 118689
Image #: 118689
Catalog #:        Accession #: 880

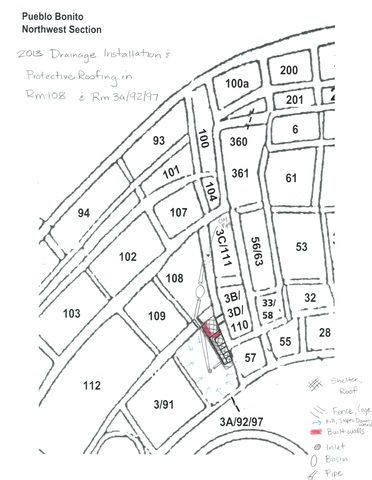

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: Other Year 2013
Backfill
Photo type: Unknown 118834
Image #: 118834
Catalog #:        Accession #: 880

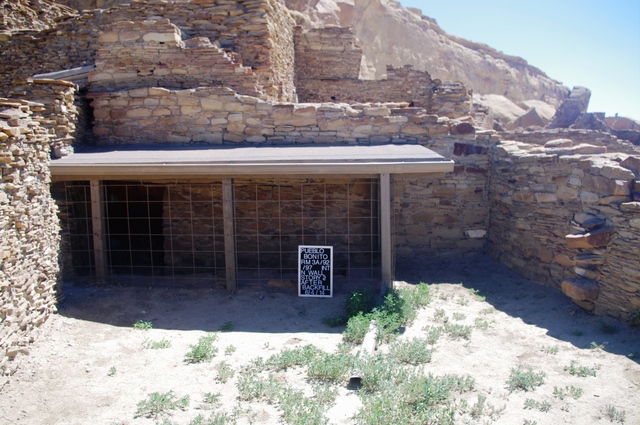

Pueblo Bonito 29SJ 387 Room: Room 3A/92/97 Wall: North Year 2013
Backfill
Photo type: After Backfill 118911
Image #: 118911
Catalog #:        Accession #: 880
