Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Story: 2nd Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 BLM quarry Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West
Start: 31/8/2004 End: 23/9/2004 Person Days: 3.0

Overall Comments: soft/wetter


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Story: 2nd Story Wall: West Interior Year 2004
Condition
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Story: 2nd Story Wall: West Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 40.0
Masonry: 10.0
Stone replaced (#): 30.0
Mortar (# buckets): 4.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: per drawing drain runs west through "bean hole" from 143 to 147. SE corner, dirt is 1" high
Specific Information
Cubic yards of fill: 2.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 90 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to: room 147, outside roomblock North
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Wall: Year 2004
Backfill

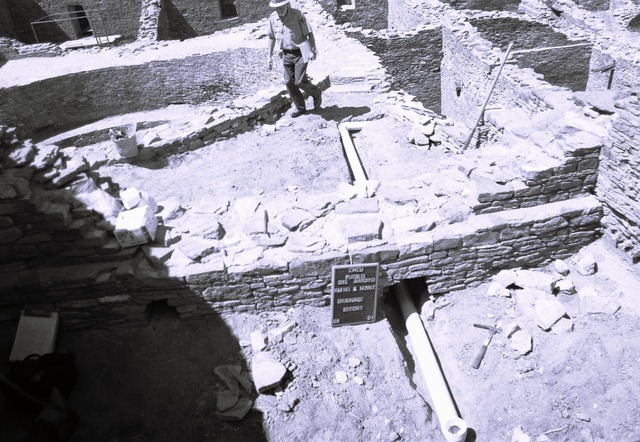

Photo type: Before Backfill 94379
Image #: 094379
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Wall: Year 2004
Backfill

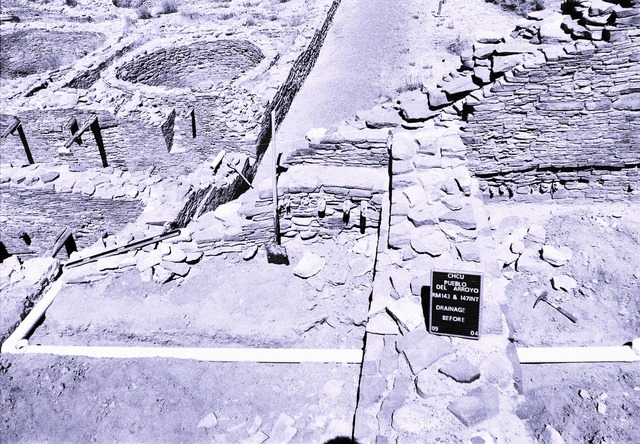

Photo type: Before Backfill 94380
Image #: 094380
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Wall: Year 2004
Backfill

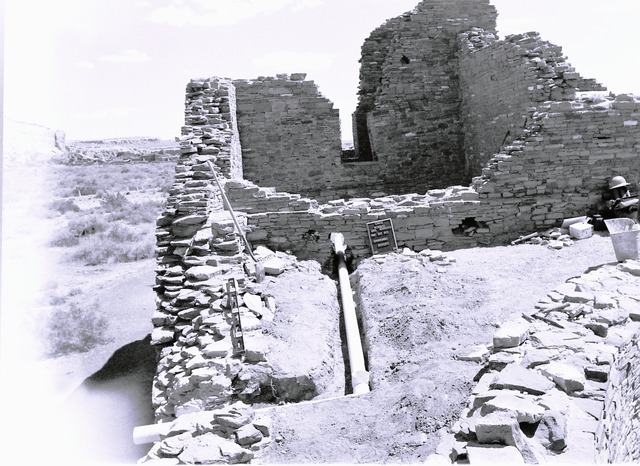

Photo type: Before Backfill 94382
Image #: 094382
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Wall: Year 2004
Backfill

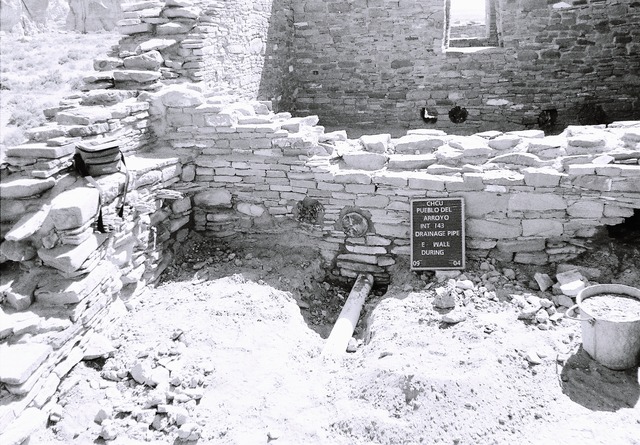

Photo type: During Backfill 94289
Image #: 094289
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Wall: Year 2004
Backfill
Photo type: During Backfill 94290
Image #: 094290
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 143 Wall: Year 2004
Backfill

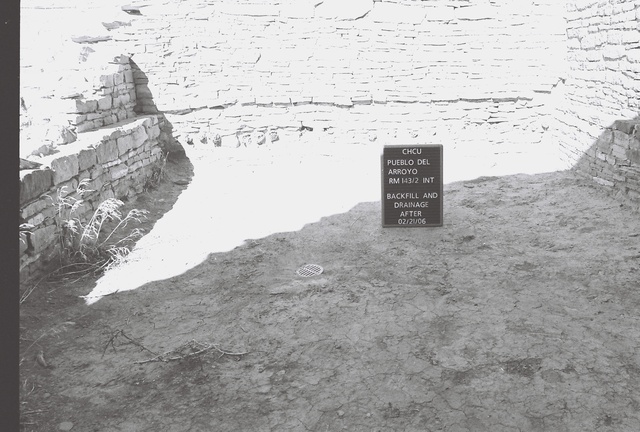

Photo type: After Backfill 82627
Image #: 082627
Catalog #:        Accession #: 806
