Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Story: 2nd Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
9.0 Outside park Dirt Duraweld C (1:4)
3.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, North
Start: 9/8/2004 End: 9/8/2004 Person Days: 0.5

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Story: 2nd Story Wall: West Interior Year 2004
Condition

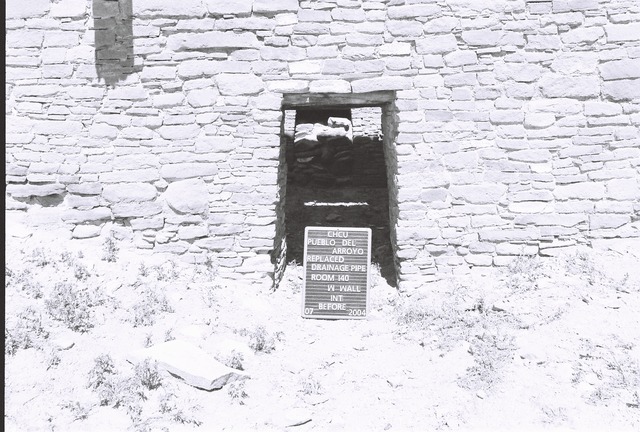

Photo type: Before 94157
Image #: 094157
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Story: 2nd Story Wall: West Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 2.0
Stone replaced (#): 3.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Story: 2nd Story Wall: North Interior Year 2004
Condition
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Story: 2nd Story Wall: North Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 6.0
Stone replaced (#): 5.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: per drawing "backfill slopes down (from S Wall) to drain pipe" which runs W/E. East wall abuts rm 142, W wall abuts rm 144
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: 20 feet      Drain pipe diameter: 6 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through: Doorway      Other:
Drain pipe leaves goes to: room 138-outside to East
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 140 Wall: Year 2004
Backfill

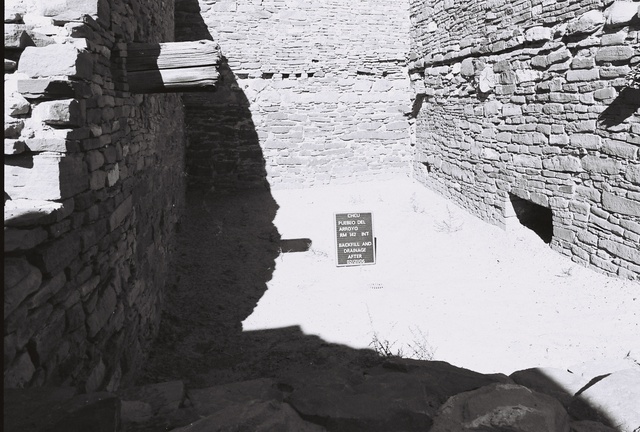

Photo type: After Backfill 82628
Image #: 082628
Catalog #:        Accession #: 806
