Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 27/7/2004 End: 2/8/2004 Person Days: 5.0

Overall Comments:

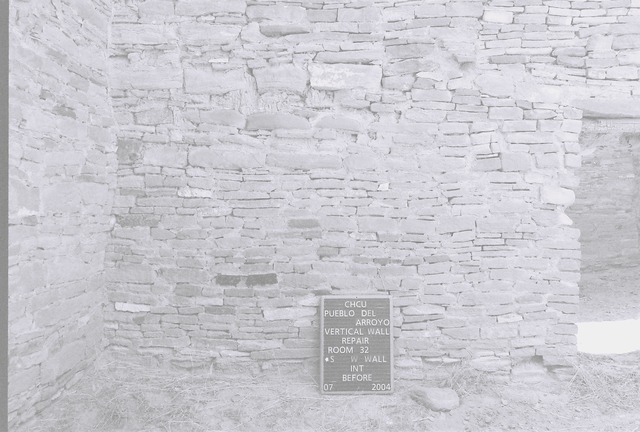

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94107
Image #: 094107
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor

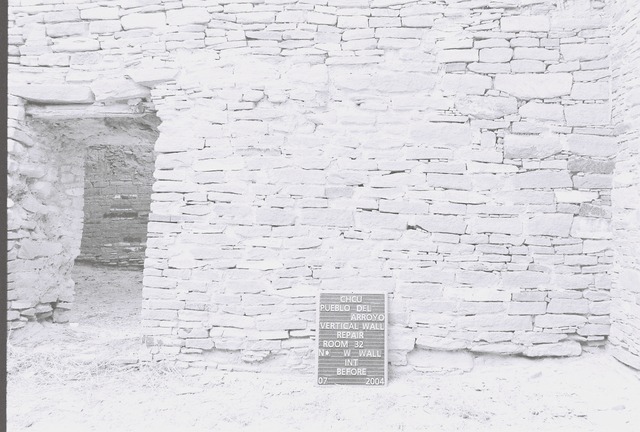

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94108
Image #: 094108
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: West Interior Year 2004
Treatment

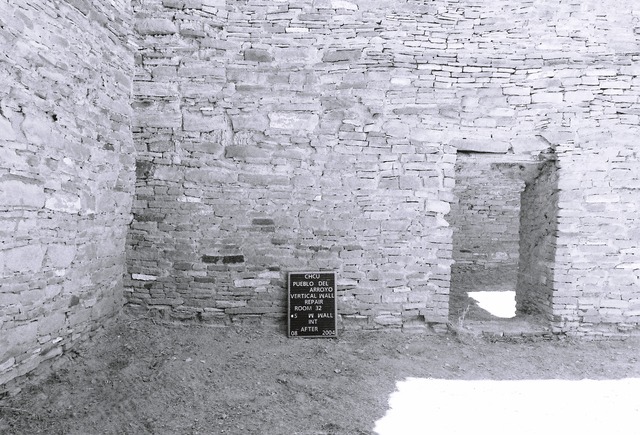

Photo type: After 94220
Image #: 094220
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 42.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: West Interior Year 2004
Treatment

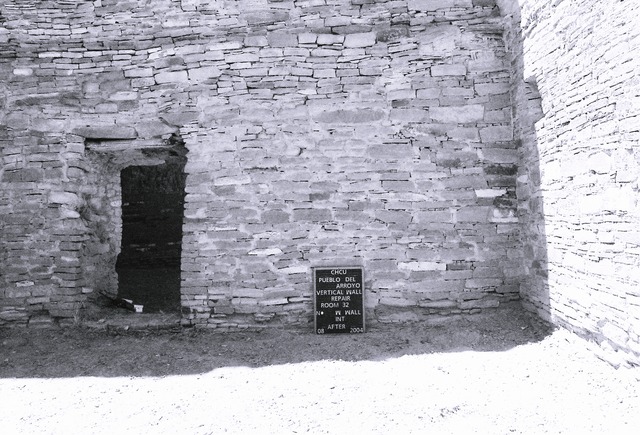

Photo type: After 94221
Image #: 094221
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 42.0
Mortar (# buckets): 0.5

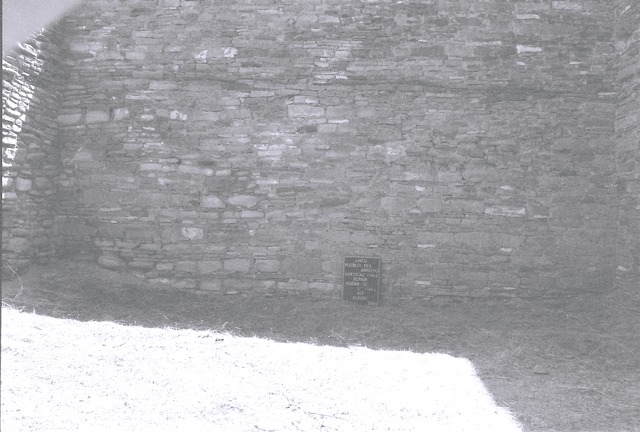

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94106
Image #: 094106
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor

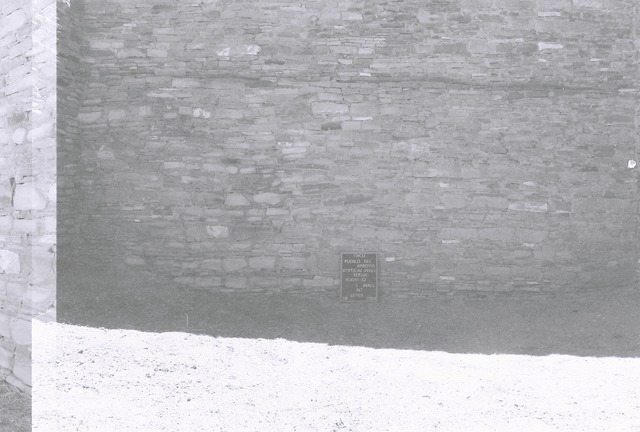

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 94219
Image #: 094219
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 30.0
Masonry: 2.0
Stone replaced (#): 13.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: East Interior Year 2004
Condition

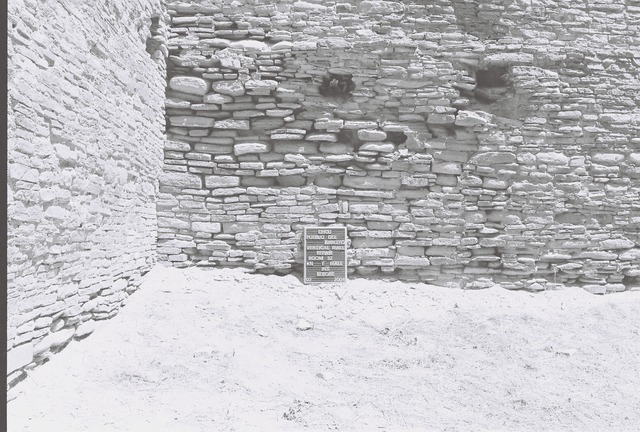

Photo type: Before 94104
Image #: 094104
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before
Image #: 094105
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor

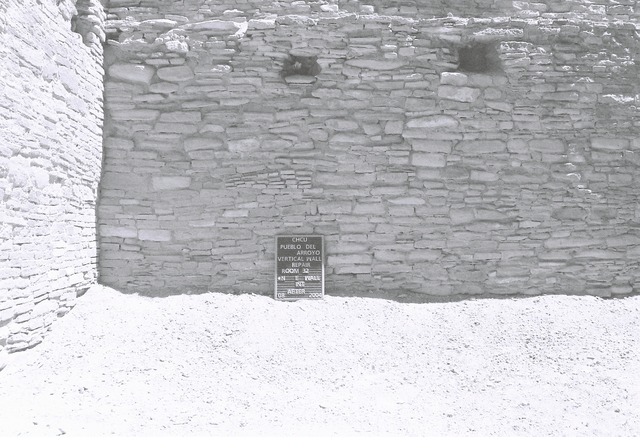

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94217
Image #: 094217
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 64.0
Masonry: 6.0
Stone replaced (#): 68.0
Mortar (# buckets): 12.0

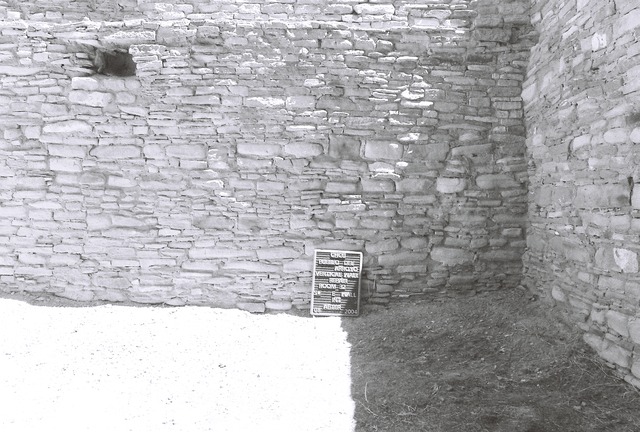

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94218
Image #: 094218
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 64.0
Masonry: 6.0
Stone replaced (#): 68.0
Mortar (# buckets): 12.0

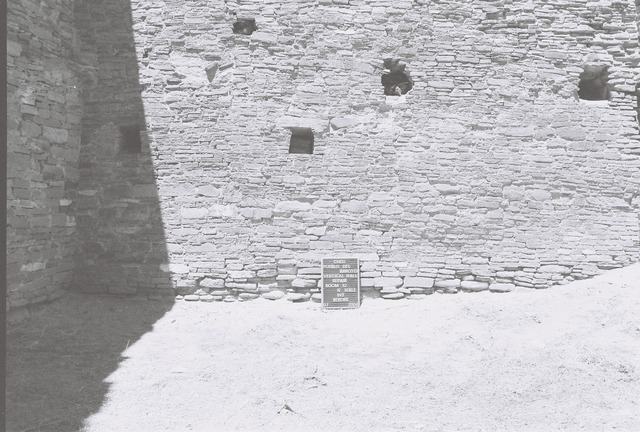

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94103
Image #: 094103
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Poor

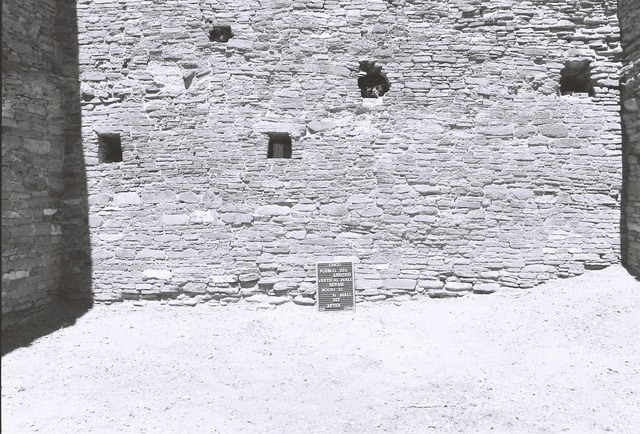

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 94216
Image #: 094216
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 16.0
Masonry: 4.0
Stone replaced (#): 14.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: per drawing "doorway drains into next room 31(W Wall)...dirt is 4 feet high in center". "No evap basins installed in room 32...it drains into next room 31."
Specific Information
Cubic yards of fill: 30.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 32 Wall: Year 2004
Backfill

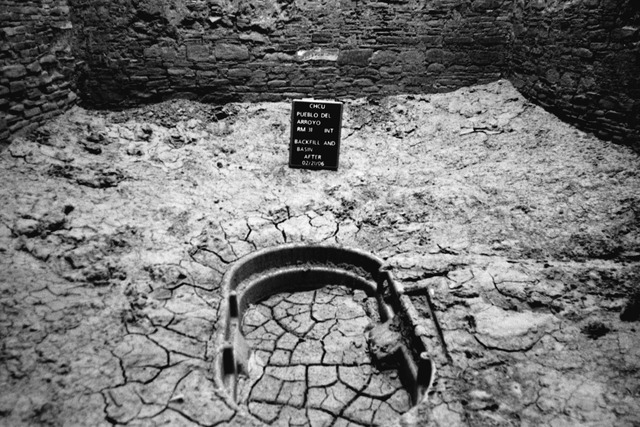

Photo type: After Backfill 82626
Image #: 082626
Catalog #:        Accession #: 806
