Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 27/7/2004 End: 27/7/2004 Person Days: 1.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94027
Image #: 094027
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: West Interior Year 2004
Condition

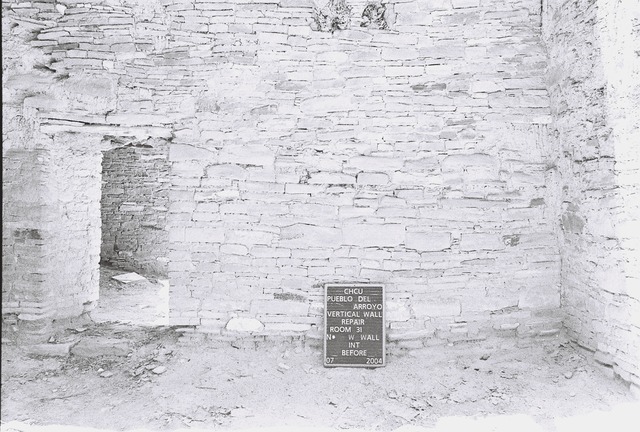

Photo type: Before 94023
Image #: 094023
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: West Interior Year 2004
Treatment

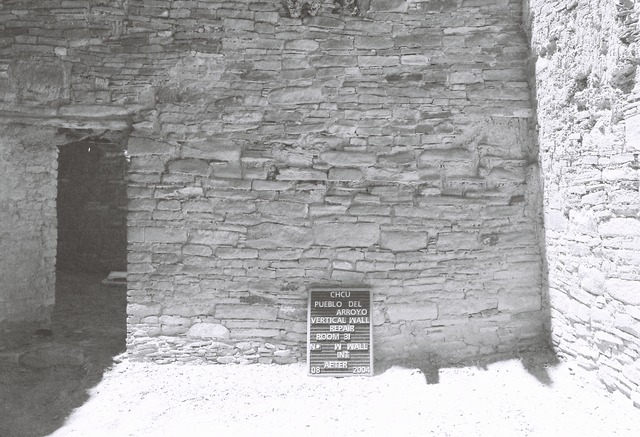

Photo type: After 94210
Image #: 094210
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 14.0
Masonry: 0.5
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: West Interior Year 2004
Treatment

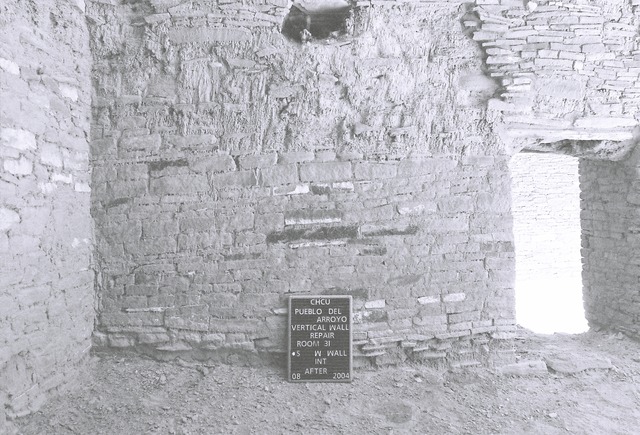

Photo type: After 94215
Image #: 094215
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 14.0
Masonry: 0.5
Mortar (# buckets): 0.5

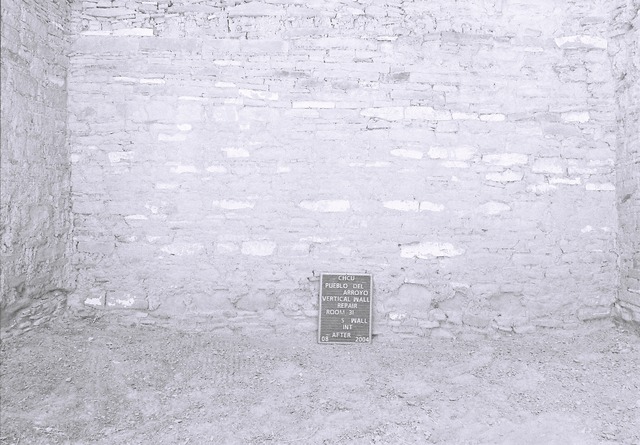

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 94214
Image #: 094214
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 7.0
Masonry: 0.5
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94026
Image #: 094026
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: East Interior Year 2004
Condition

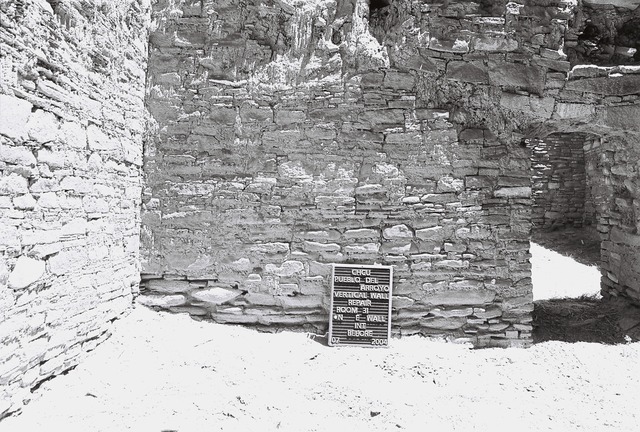

Photo type: Before 94024
Image #: 094024
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: East Interior Year 2004
Condition

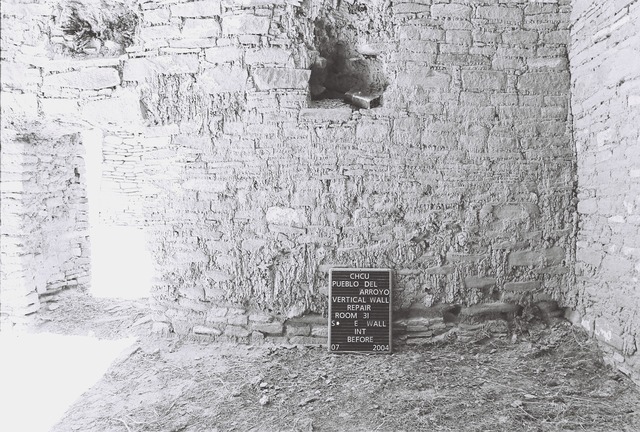

Photo type: Before 94025
Image #: 094025
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: East Interior Year 2004
Treatment

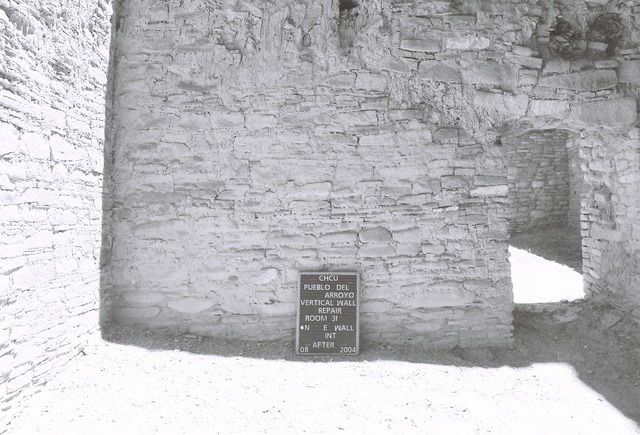

Photo type: After 94212
Image #: 094212
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 14.0
Masonry: 0.5
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: East Interior Year 2004
Treatment

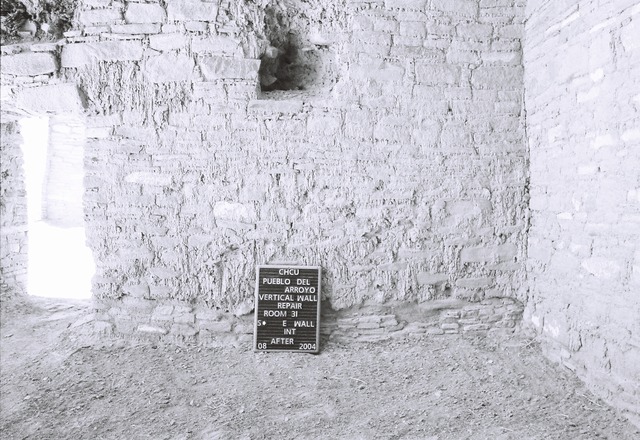

Photo type: After 94213
Image #: 094213
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 14.0
Masonry: 0.5
Mortar (# buckets): 0.5

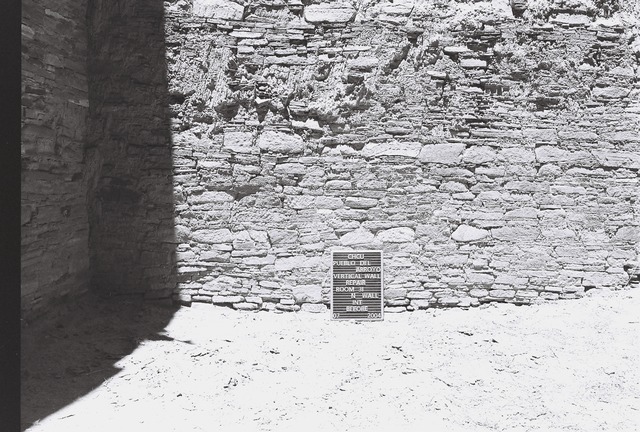

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94030
Image #: 094030
Catalog #:        Accession #: 806
Condition:

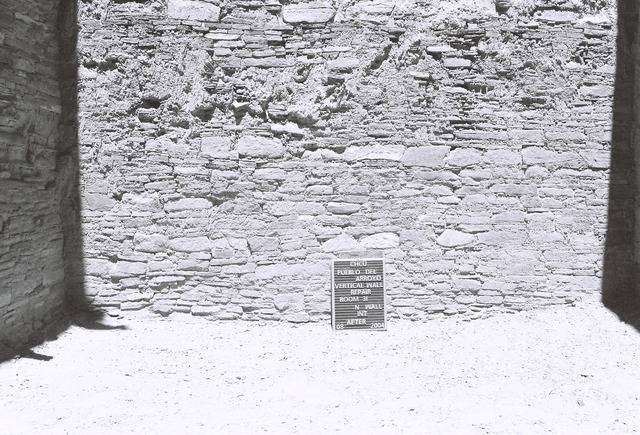

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 94211
Image #: 094211
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 7.0
Masonry: 0.5
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: comments per drawing: "doorway drywall" at w wall. Doorway drain on East wall
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size: 12"
Capacity: 50.0 gallons
Wood
Number of pieces buried: none
Note:

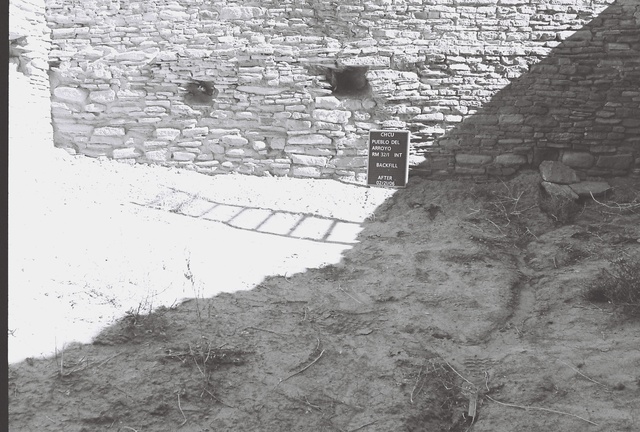

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 31 Wall: Year 2004
Backfill
Photo type: After Backfill 82625
Image #: 082625
Catalog #:        Accession #: 806
