Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, North
Start: 28/7/2004 End: 29/7/2004 Person Days: 2.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Wall: West Interior Year 2004
Condition

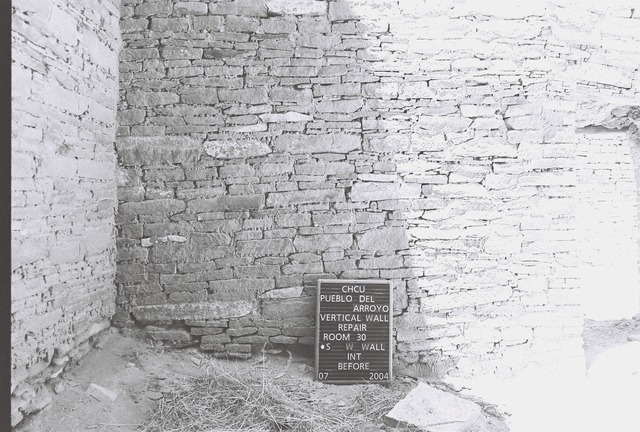

Photo type: Before 94029
Image #: 094029
Catalog #:        Accession #: 806
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Wall: West Interior Year 2004
Treatment

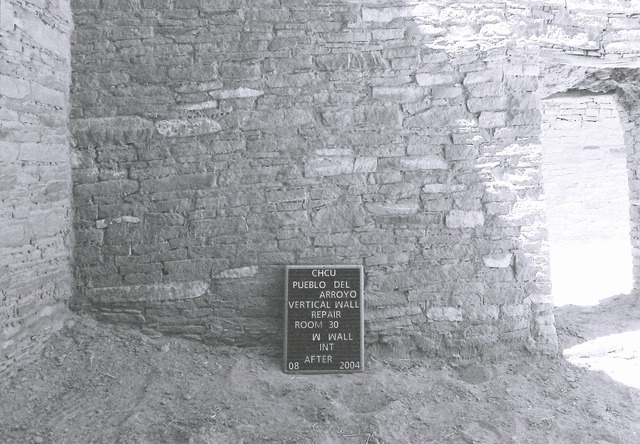

Photo type: After 94209
Image #: 094209
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 32.0
Masonry: 32.5
Stone replaced (#): 2.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Wall: South Interior Year 2004
Condition

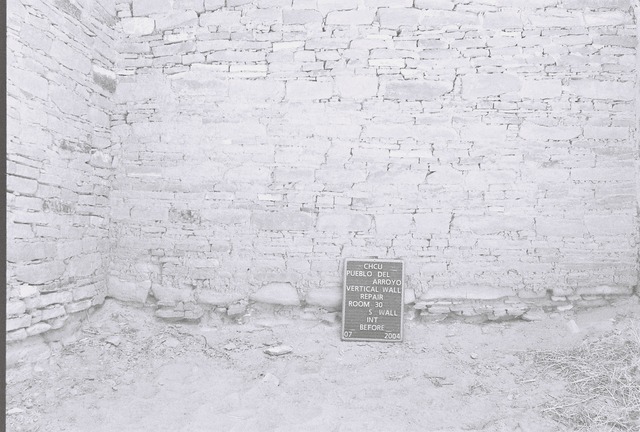

Photo type: Before 94028
Image #: 094028
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Wall: South Interior Year 2004
Treatment

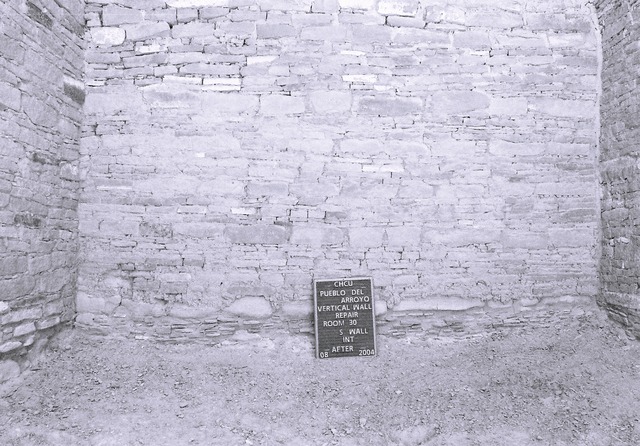

Photo type: After 94208
Image #: 094208
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 9.0
Masonry: 9.5
Stone replaced (#): 5.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Wall: North Interior Year 2004
Condition
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Story: 1st Story Wall: North Interior Year 2004
Treatment
Treatment:
Basal Wall Repair:
Repointing (sq ft): 5.0
Masonry: 5.5
Stone replaced (#): 5.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: Per notes on drawing "Doorway drain to next room 29" (no indication of which wall). Wall opposite is drywall doorway
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 30 Wall: Year 2004
Backfill

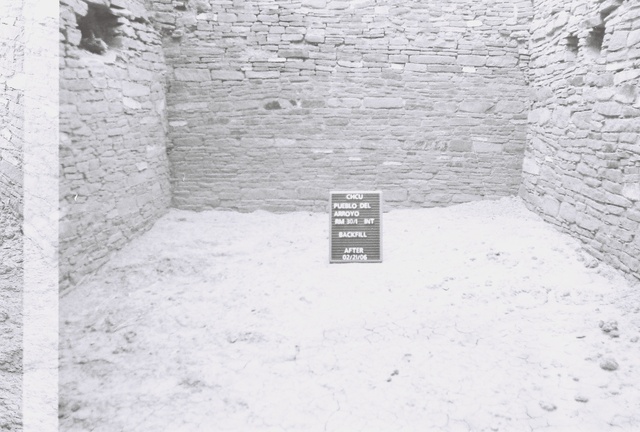

Photo type: After Backfill 82634
Image #: 082634
Catalog #:        Accession #: 806
