Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
6.0 Outside park Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 26/7/2004 End: 2/8/2004 Person Days: 5.0

Overall Comments:

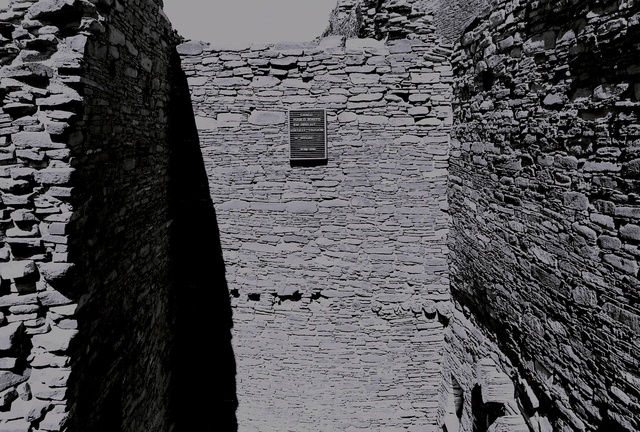

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 95104
Image #: 094014
Catalog #:        Accession #:
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

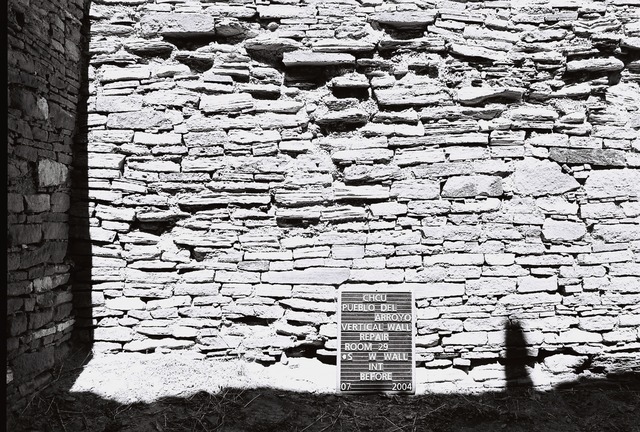

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94018
Image #: 094018
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: West Interior Year 2004
Treatment

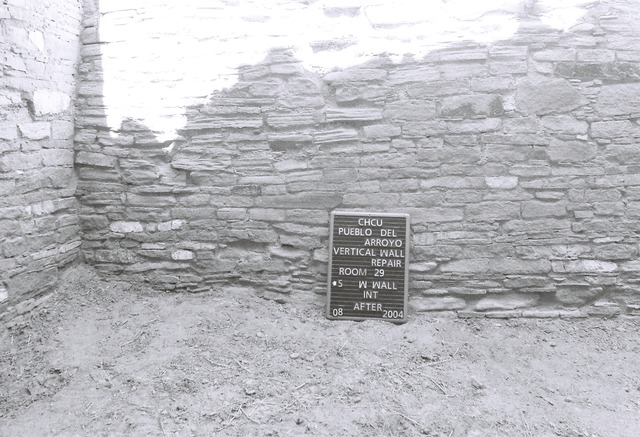

Photo type: After 94202
Image #: 094202
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 63.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0

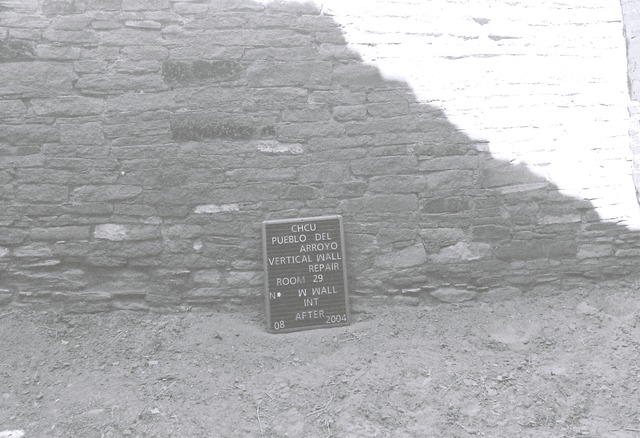

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: After 94203
Image #: 094203
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 63.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: South Interior Year 2004
Condition

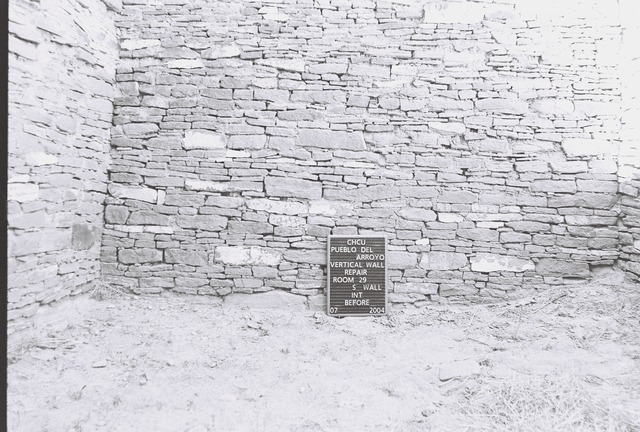

Photo type: Before 94016
Image #: 094016
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: South Interior Year 2004
Treatment

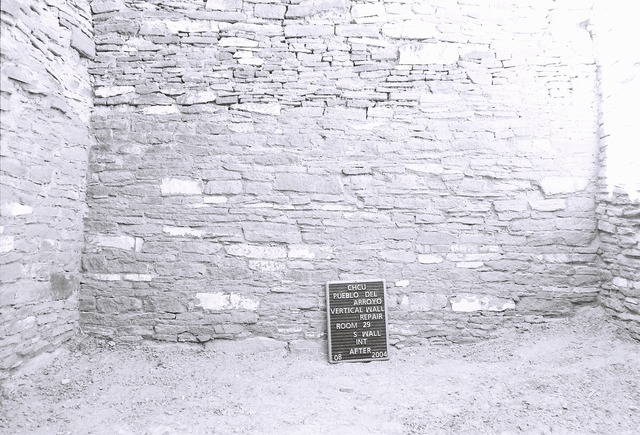

Photo type: After 94201
Image #: 094201
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 36.0
Stone replaced (#): 3.0
Mortar (# buckets): 1.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: East Interior Year 2004
Condition

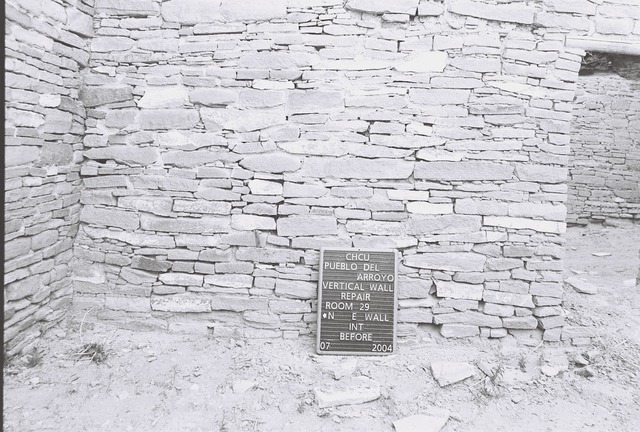

Photo type: Before 94015
Image #: 094015
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: East Interior Year 2004
Condition

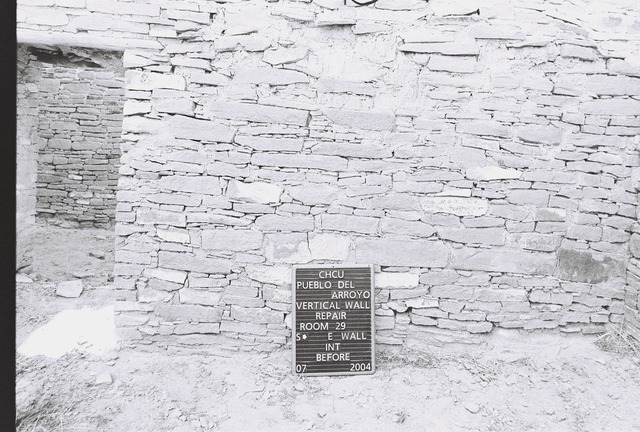

Photo type: Before 94017
Image #: 094017
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: East Interior Year 2004
Treatment

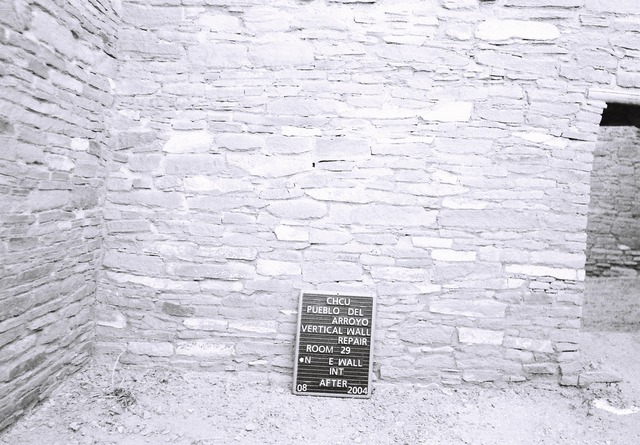

Photo type: After 94199
Image #: 094199
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 76.25
Mortar (# buckets): 3.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: East Interior Year 2004
Treatment

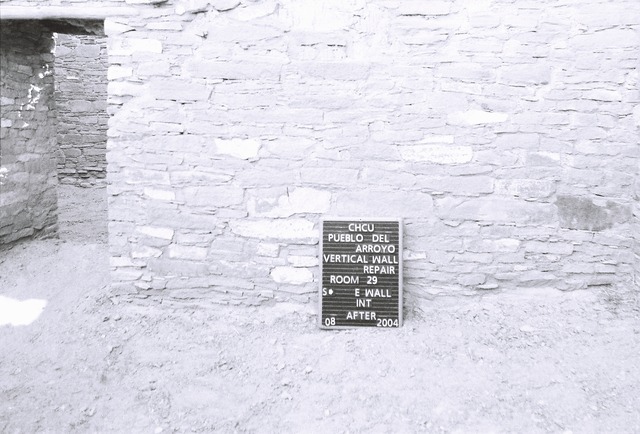

Photo type: After 94200
Image #: 094200
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 76.25
Mortar (# buckets): 3.0

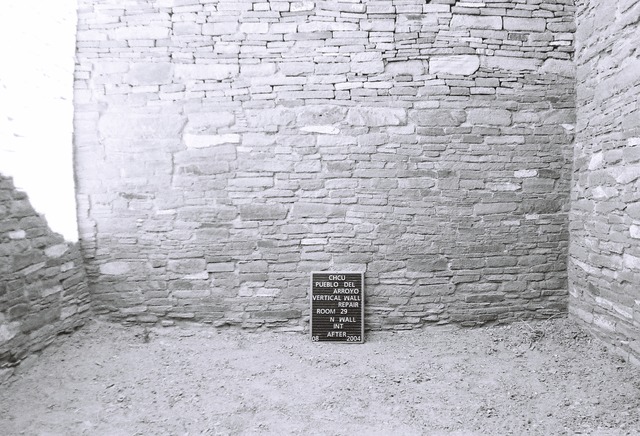

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 94198
Image #: 094198
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 41.0
Stone replaced (#): 5.0
Mortar (# buckets): 1.5

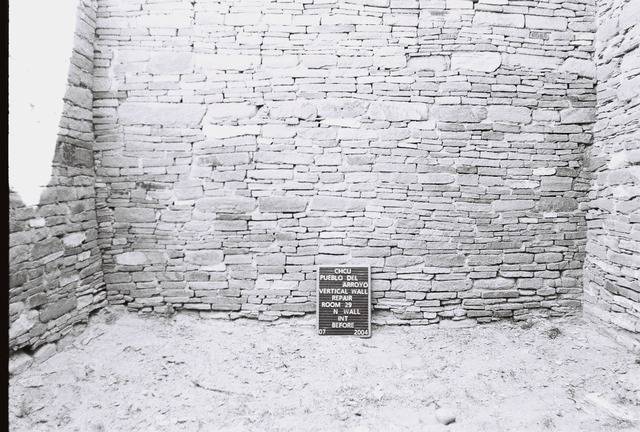

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94013
Image #: 094013
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: comments per drawing "doorway drain from room 30" - no indication of which wall
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size: 18"
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 29 Wall: Year 2004
Backfill

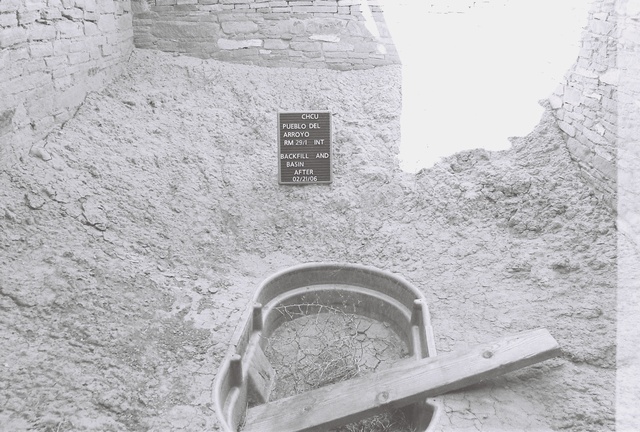

Photo type: After Backfill 82633
Image #: 082633
Catalog #:        Accession #: 806
