Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 26/7/2004 End: 4/8/2004 Person Days: 3.0

Overall Comments:


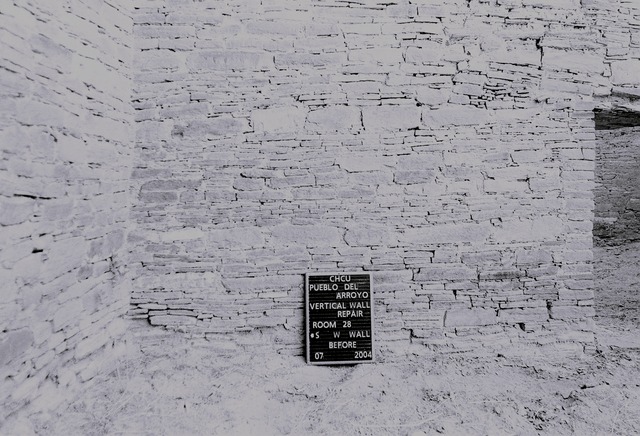

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: West Interior Year 2004
Condition

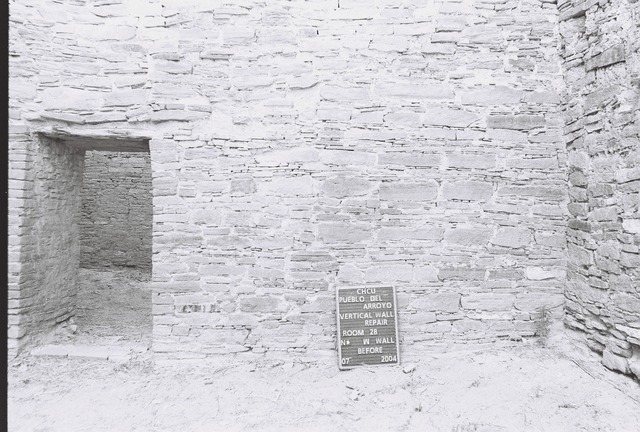

Photo type: Before 94012
Image #: 094012
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Good







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94063
Image #: 094063
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor
Basal Erosion: Good







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: West Interior Year 2004
Treatment

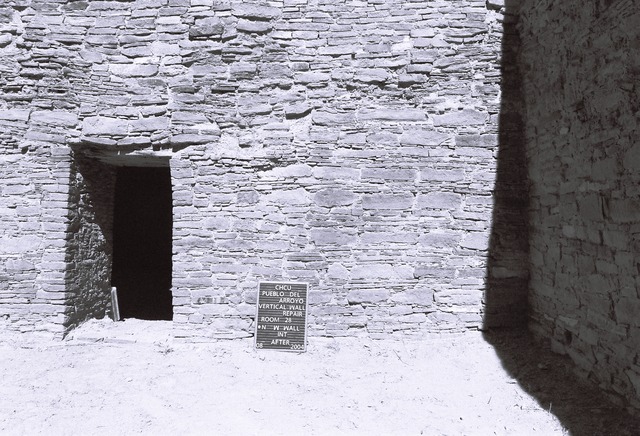

Photo type: After 94365
Image #: 094365
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 3.0
Mortar (# buckets): 0.5

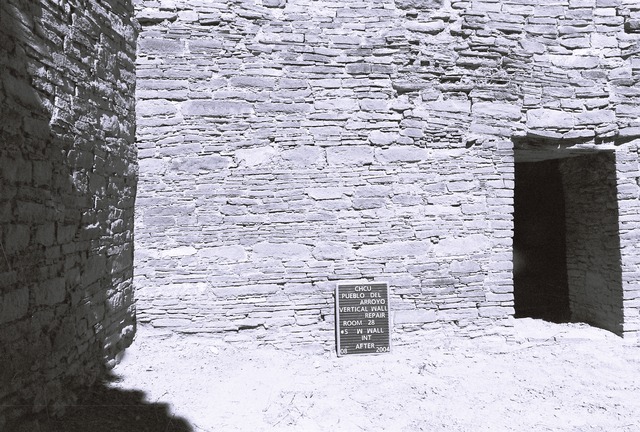

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: After 94366
Image #: 094366
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 3.0
Mortar (# buckets): 0.5

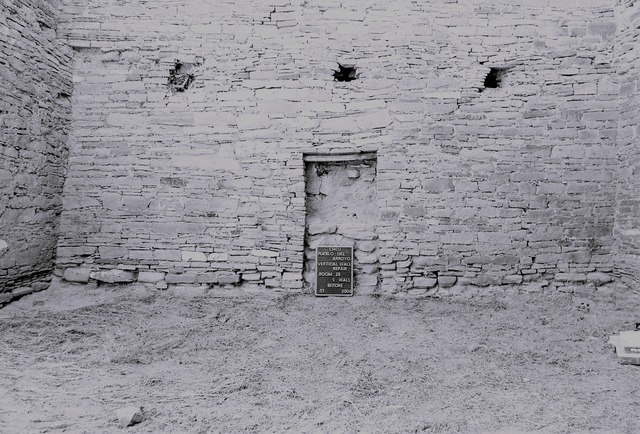

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94062
Image #: 094062
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: South Interior Year 2004
Treatment

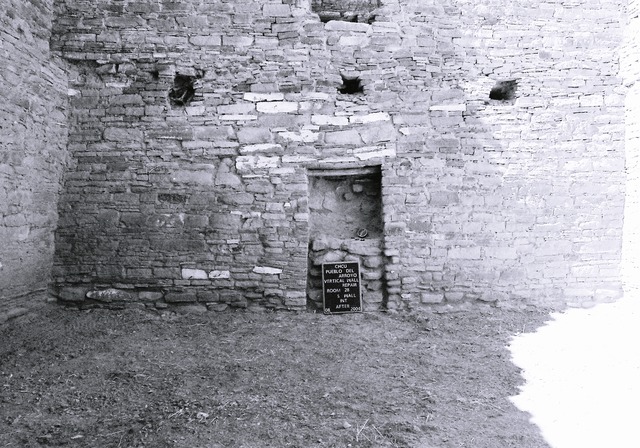

Photo type: After 94367
Image #: 094367
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 7.0
Stone replaced (#): 4.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: East Interior Year 2004
Condition

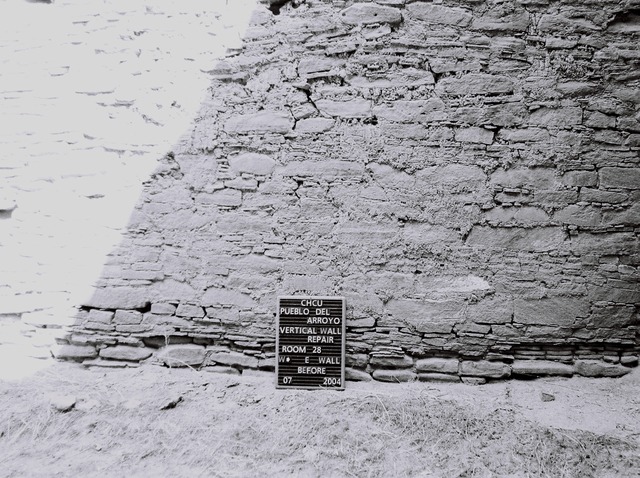

Photo type: Before 94064
Image #: 094064
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: East Interior Year 2004
Treatment

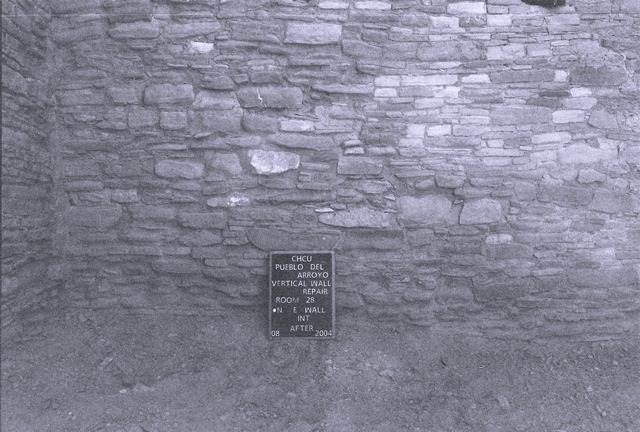

Photo type: After 94196
Image #: 094196
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 15.0
Stone replaced (#): 11.0
Mortar (# buckets): 4.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: East Interior Year 2004
Treatment

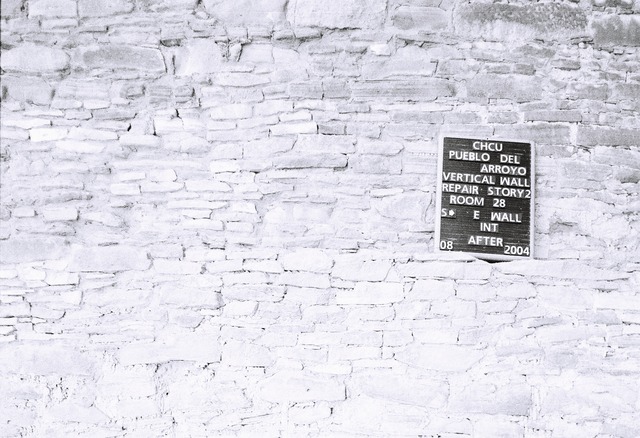

Photo type: After 94197
Image #: 094197
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 15.0
Stone replaced (#): 11.0
Mortar (# buckets): 4.0

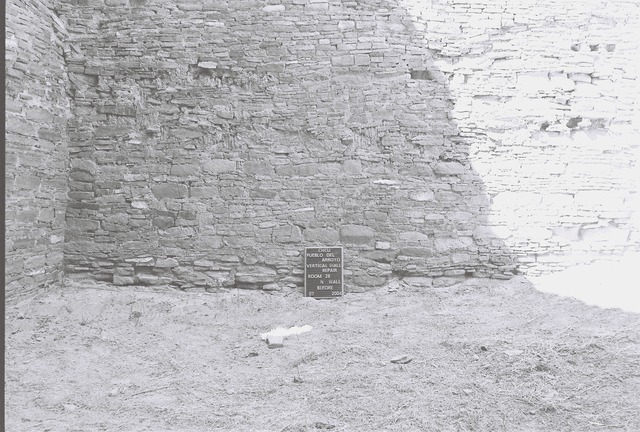

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94011
Image #: 094011
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 94365
Image #: 094364
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 6.0
Stone replaced (#): 10.0
Mortar (# buckets): 2.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: "No evap basin installed in Rm 28 - It just drains to the next room. Dirt 4' high in corners"...comments per drawing.
Specific Information
Cubic yards of fill: 30.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

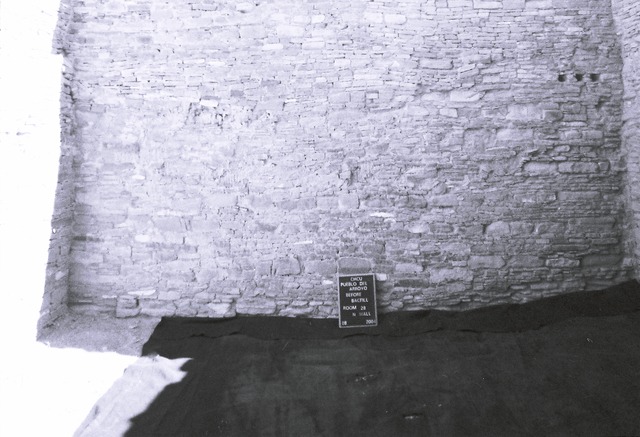

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Wall: Year 2004
Backfill
Photo type: Before Backfill 94343
Image #: 094343
Catalog #:        Accession #:

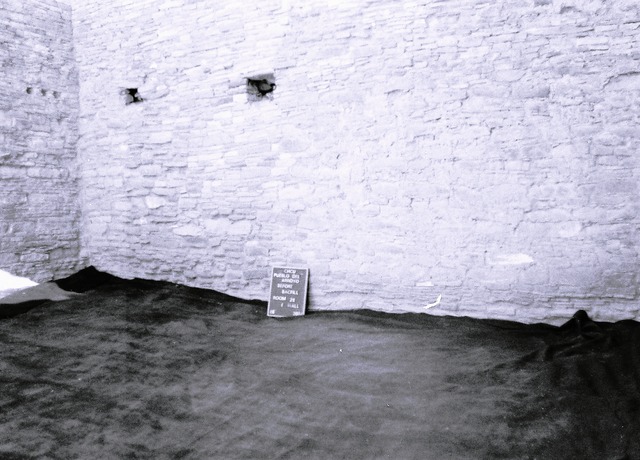

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Wall: Year 2004
Backfill
Photo type: Before Backfill 94345
Image #: 094345
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Wall: Year 2004
Backfill

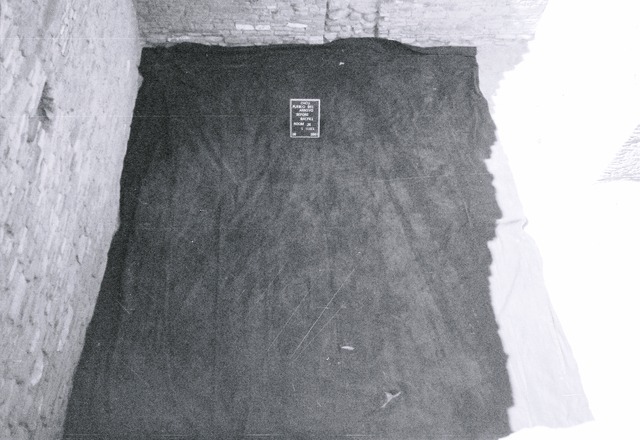

Photo type: Before Backfill 94314
Image #: 094314
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Wall: Year 2004
Backfill

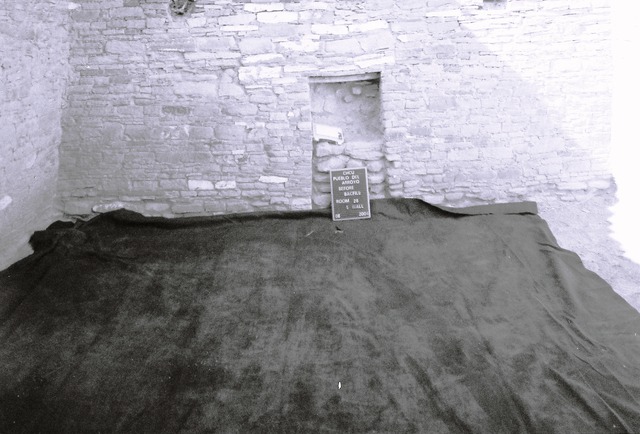

Photo type: Before Backfill 94342
Image #: 094342
Catalog #:        Accession #:

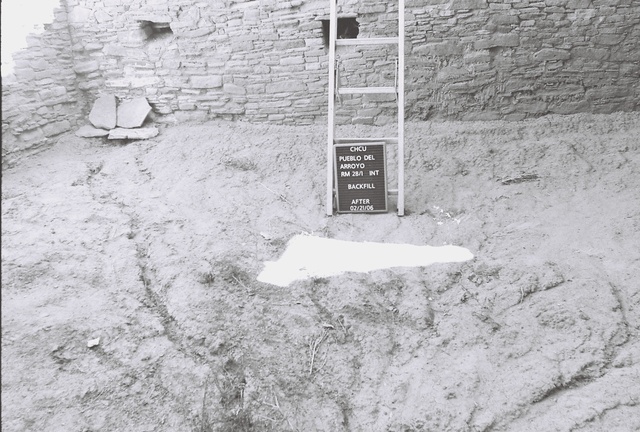

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Wall: Year 2004
Backfill
Photo type: After Backfill 82624
Image #: 082624
Catalog #:        Accession #: 806

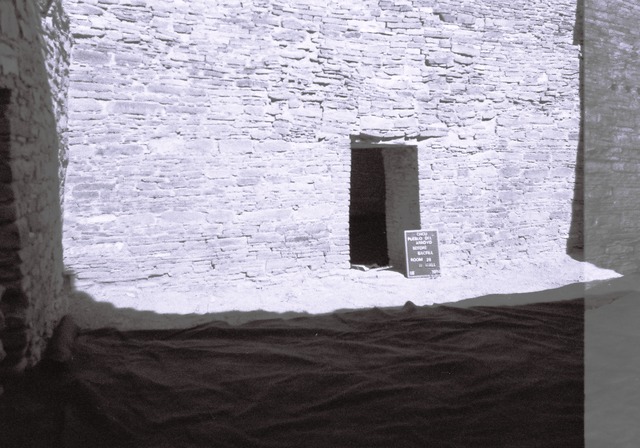

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 28 Wall: Year 2004
Backfill
Photo type: Before Backfill 94344
Image #: 094344
Catalog #:        Accession #: 806
