Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 26/7/2004 End: 26/7/2004 Person Days: 1.0

Overall Comments:

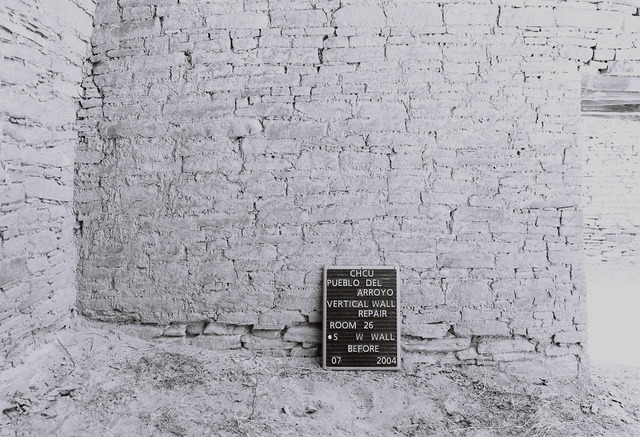

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94052
Image #: 094052
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

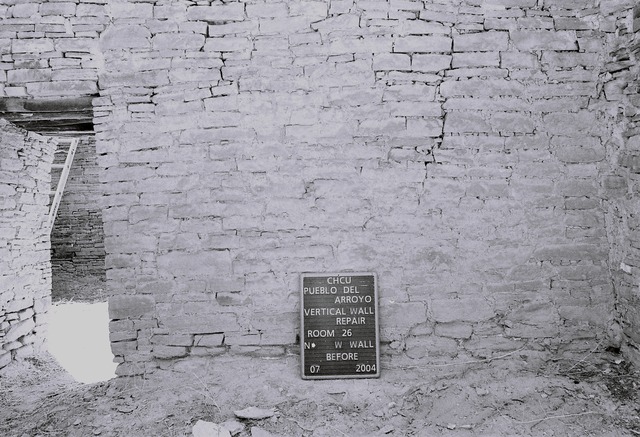

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94054
Image #: 094054
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: West Interior Year 2004
Treatment

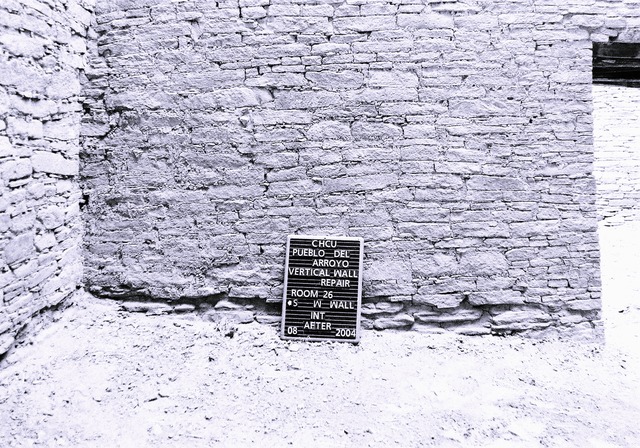

Photo type: After 94354
Image #: 094354
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment

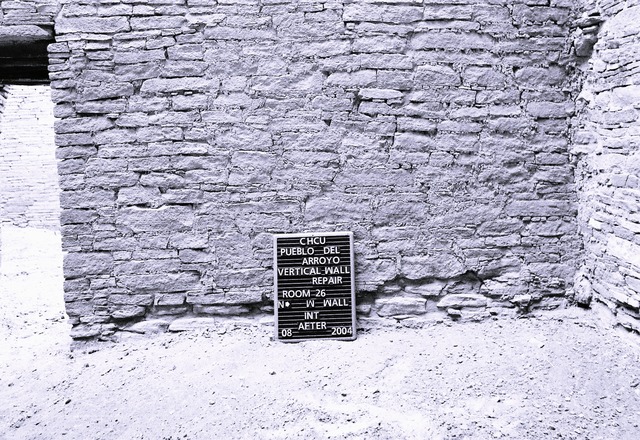

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: After 94355
Image #: 094355
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: South Interior Year 2004
Condition

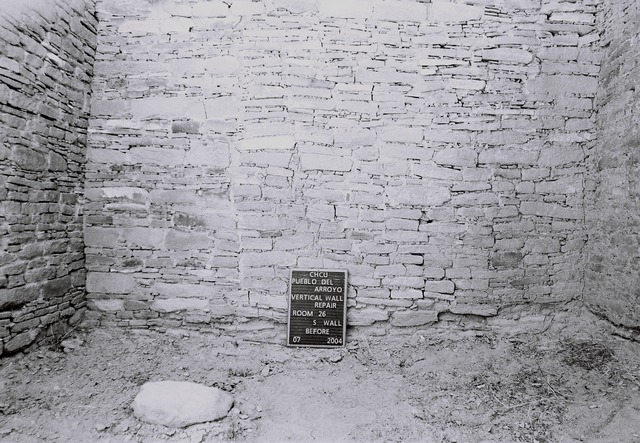

Photo type: Before 94050
Image #: 094050
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: South Interior Year 2004
Treatment

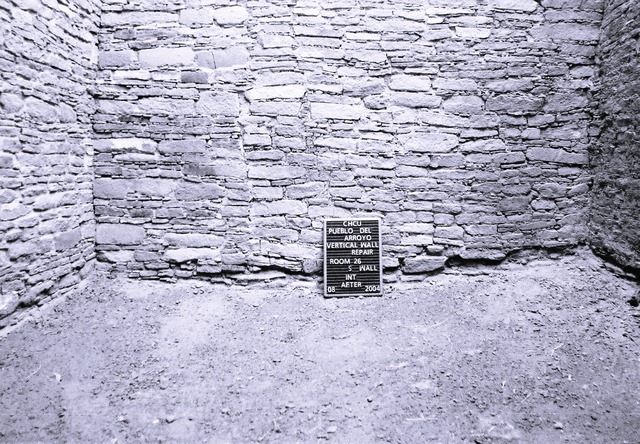

Photo type: After 94352
Image #: 094352
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 21.0
Mortar (# buckets): 0.25







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: East Interior Year 2004
Condition

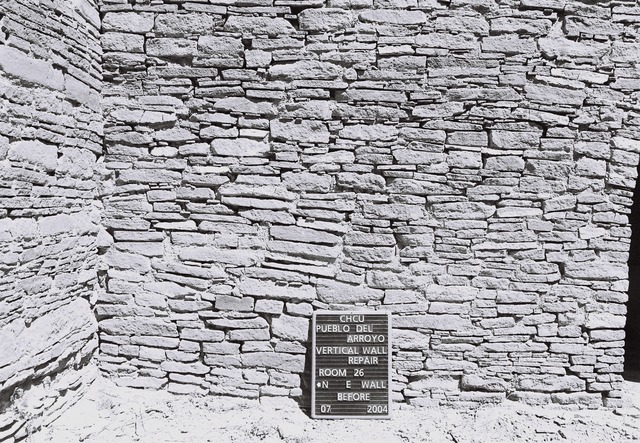

Photo type: Before 94055
Image #: 094055
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

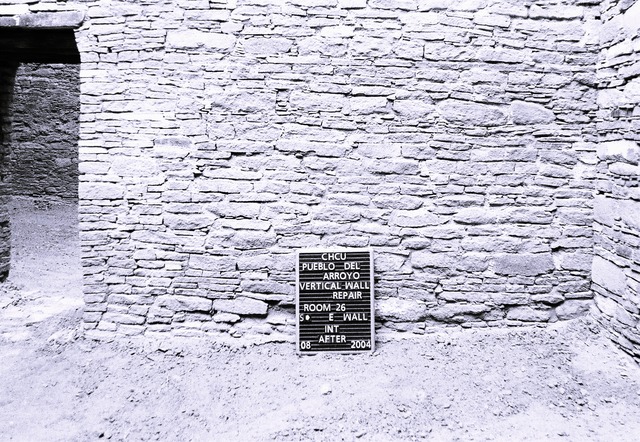

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94353
Image #: 094353
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 10.0
Mortar (# buckets): 0.25

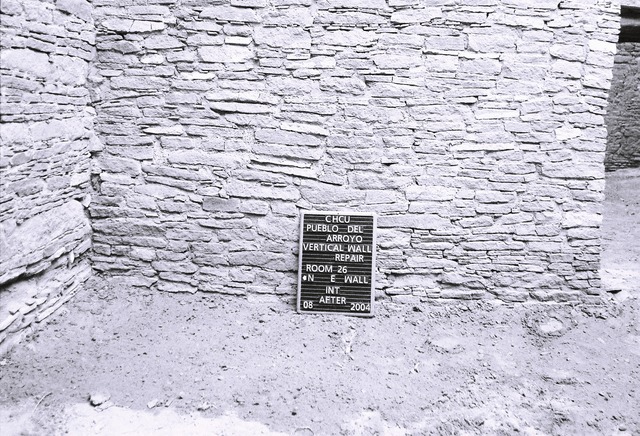

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94357
Image #: 094357
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 10.0
Mortar (# buckets): 0.25

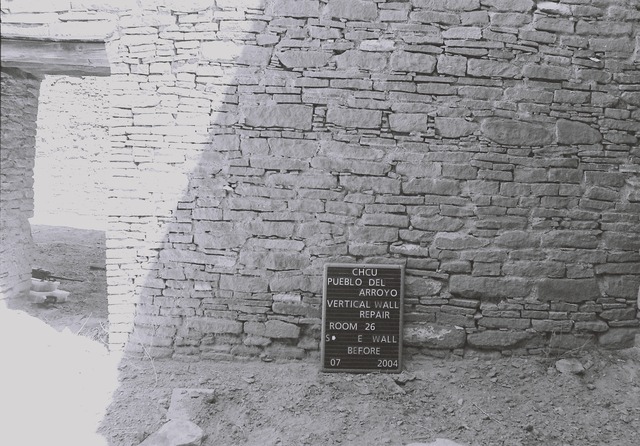

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94051
Image #: 094051
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

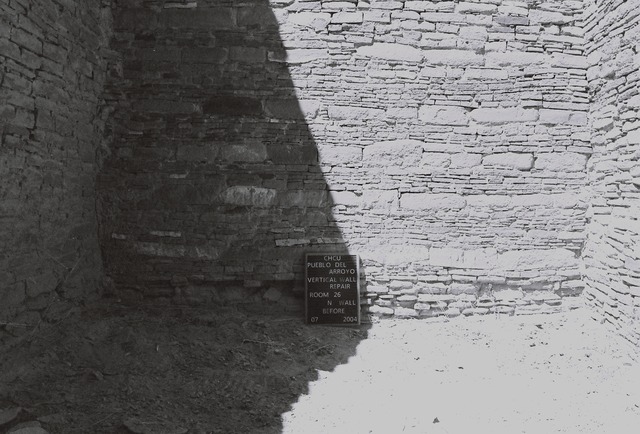

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94053
Image #: 094053
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

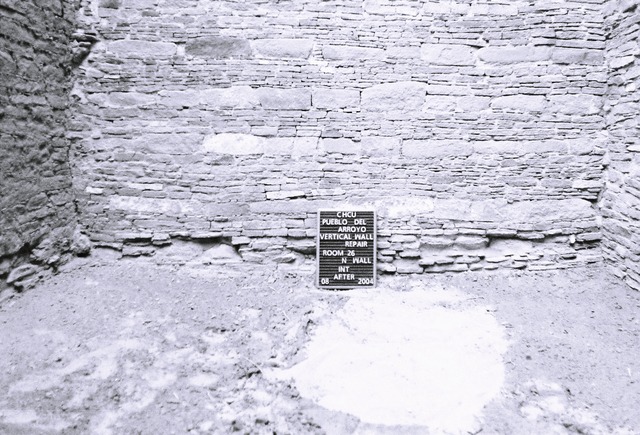

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 94356
Image #: 094356
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: date of before photos: 8/04 - after photos 2/21/06
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note: comments per drawing: "doorway (W Wall) drains to next room #25. Drywall doorway (E Wall)".

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Wall: Year 2004
Backfill

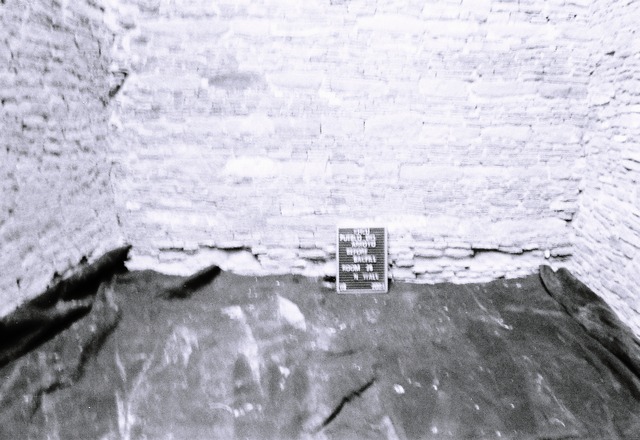

Photo type: Before Backfill 94326
Image #: 094326
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Wall: Year 2004
Backfill

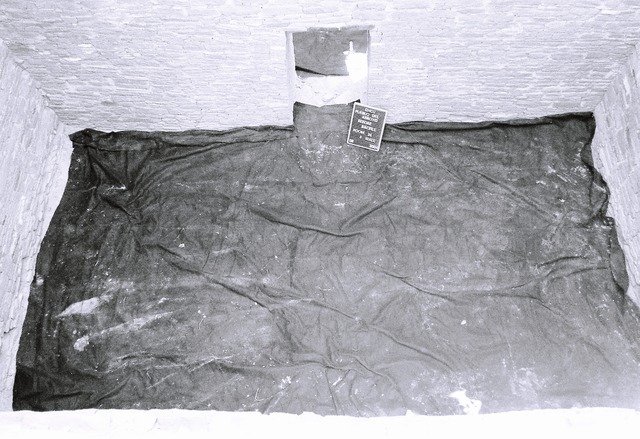

Photo type: Before Backfill 94313
Image #: 094313
Catalog #:        Accession #:

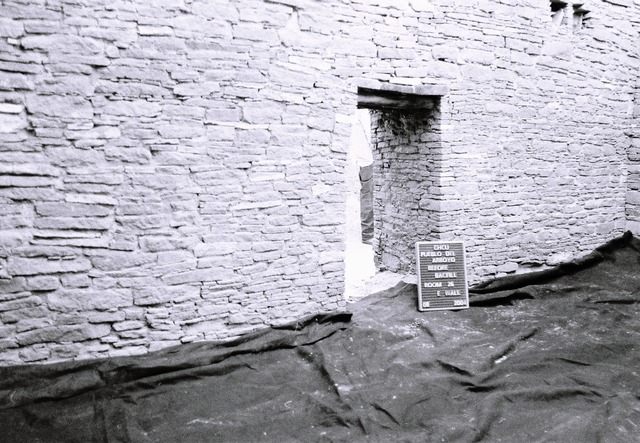

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Wall: Year 2004
Backfill
Photo type: Before Backfill 94328
Image #: 094328
Catalog #:        Accession #:

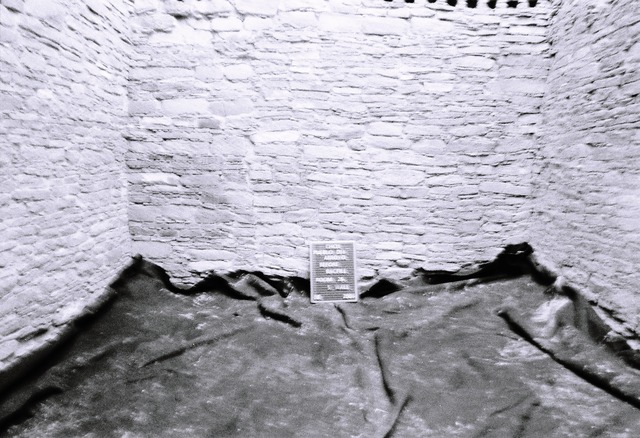

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Wall: Year 2004
Backfill
Photo type: Before Backfill 94327
Image #: 094327
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Wall: Year 2004
Backfill

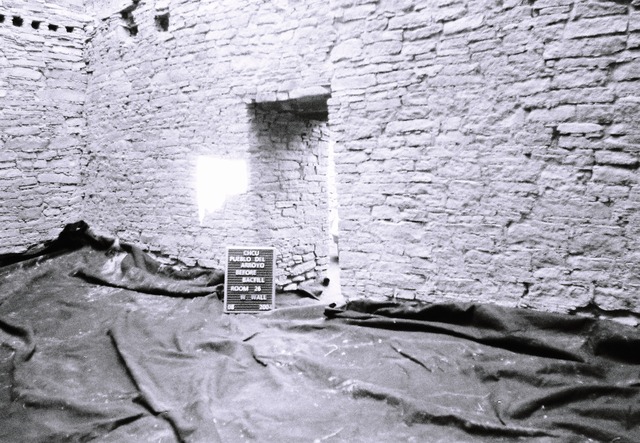

Photo type: Before Backfill 94329
Image #: 094329
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 26 Wall: Year 2004
Backfill

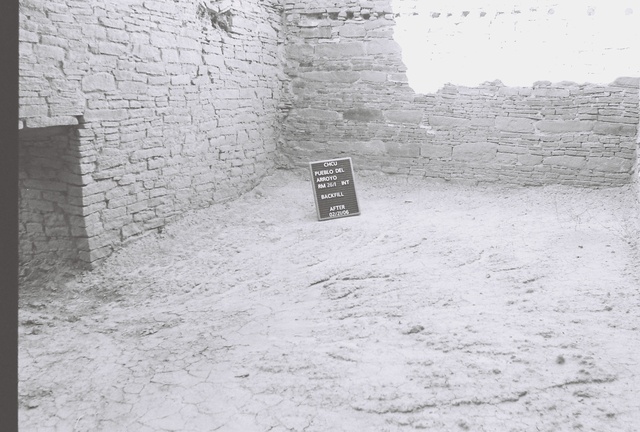

Photo type: After Backfill 82632
Image #: 082632
Catalog #:        Accession #: 806
