Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person Days:

Overall Comments: no treatment to walls


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94045

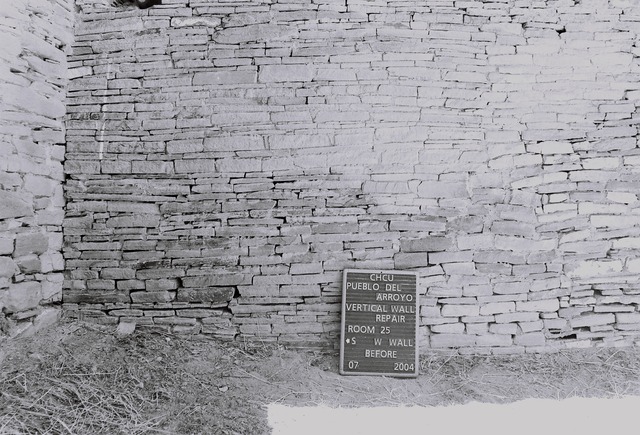

Image #: 094045
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94048

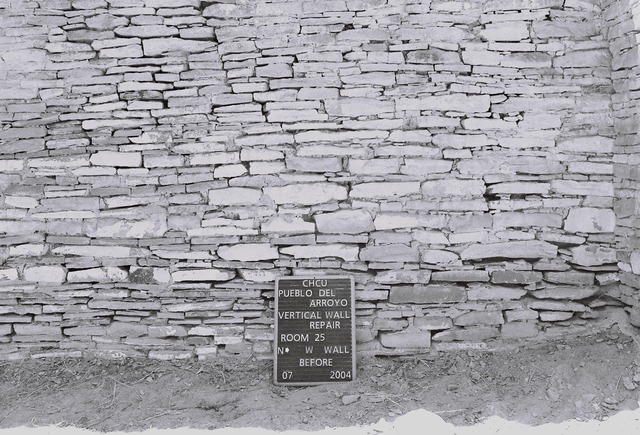

Image #: 094048
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: After 94349

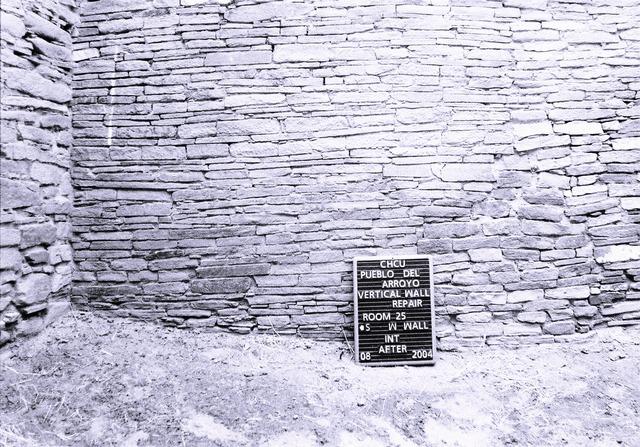

Image #: 094349
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: After 94350
Image #: 094350
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: South Interior Year 2004
Condition

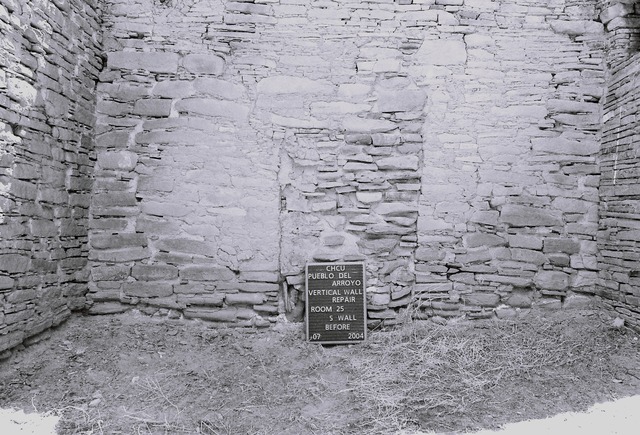

Photo type: Before 94044
Image #: 094044
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 94348
Image #: 094348
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: East Interior Year 2004
Condition

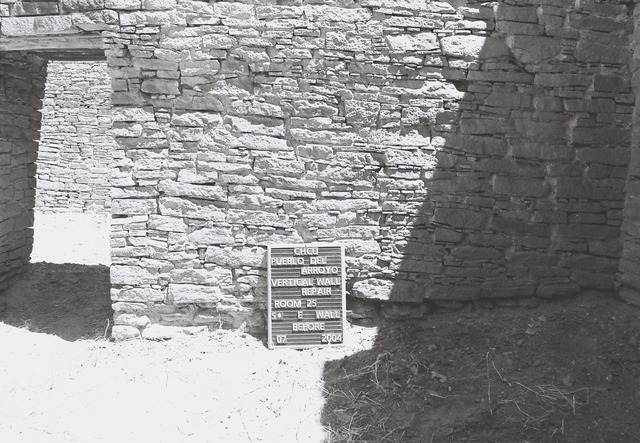

Photo type: Before 94046
Image #: 094046
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94049

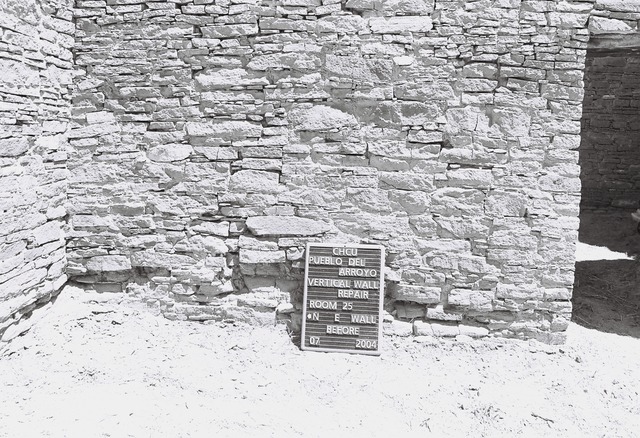

Image #: 094049
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94346

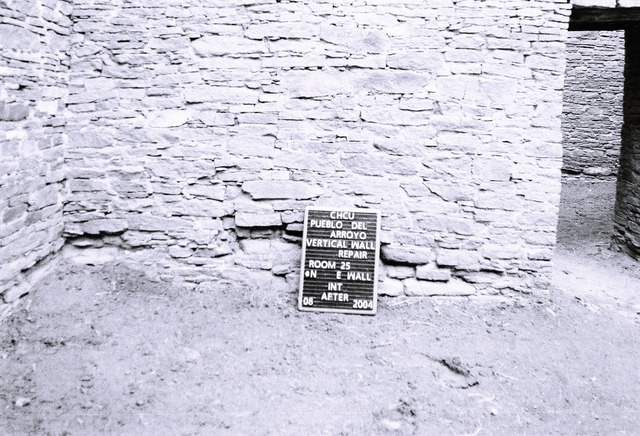

Image #: 094346
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94347
Image #: 094347
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: North Interior Year 2004
Condition

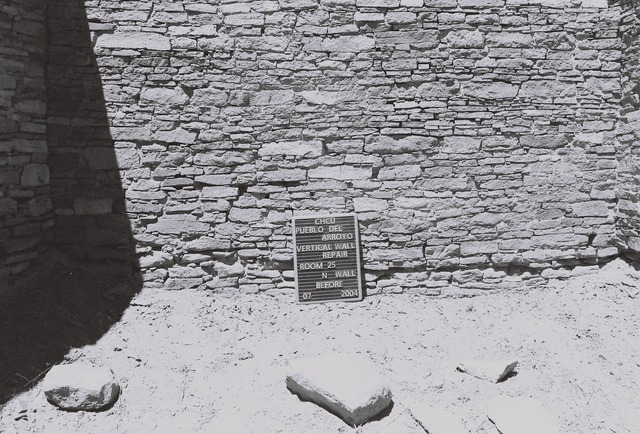

Photo type: Before 94047
Image #: 094047
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 94351

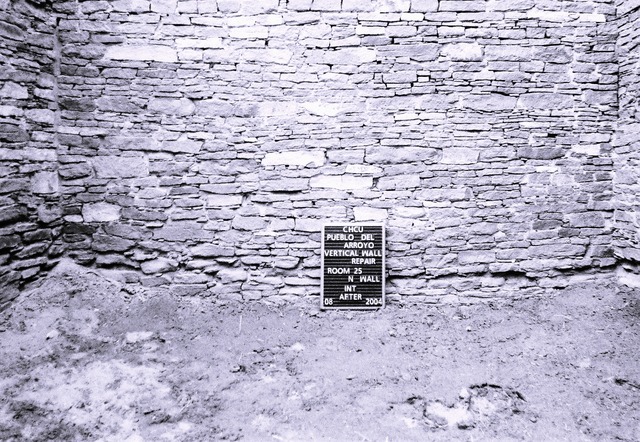

Image #: 094351
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Year 2004
Backfill
Start: Not specified/8/2004 End: Not specified/8/2004 Person days:
Comments: start and end date based on date of before photos
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size: 12"
Capacity: 55.0 gallons
Wood
Number of pieces buried: none
Note: per comments on drawing "doorway (E wall) drains from room 26"

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Wall: Year 2004
Backfill

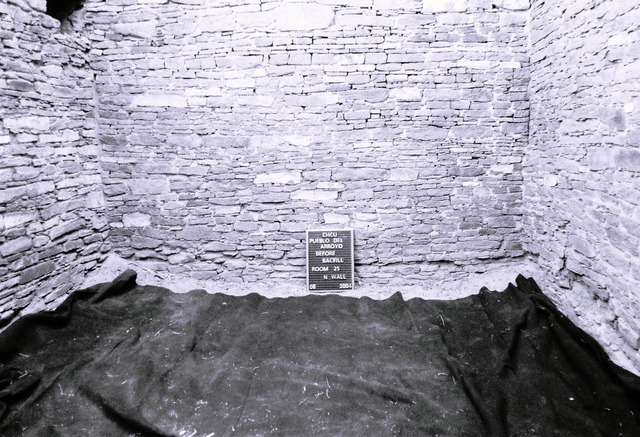

Photo type: Before Backfill 94323
Image #: 094323
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Wall: Year 2004
Backfill
Photo type: Before Backfill 94325

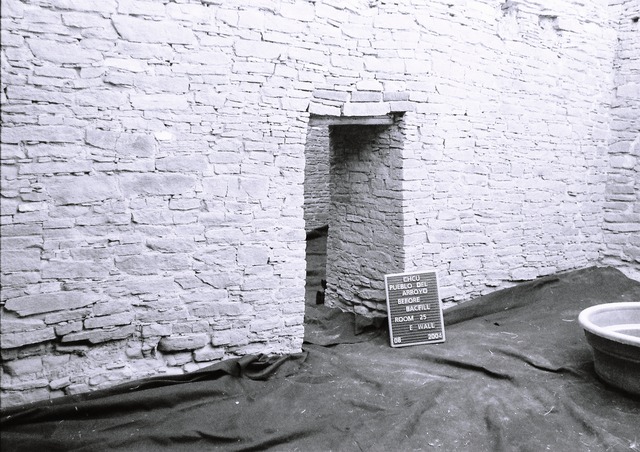

Image #: 094325
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Wall: Year 2004
Backfill

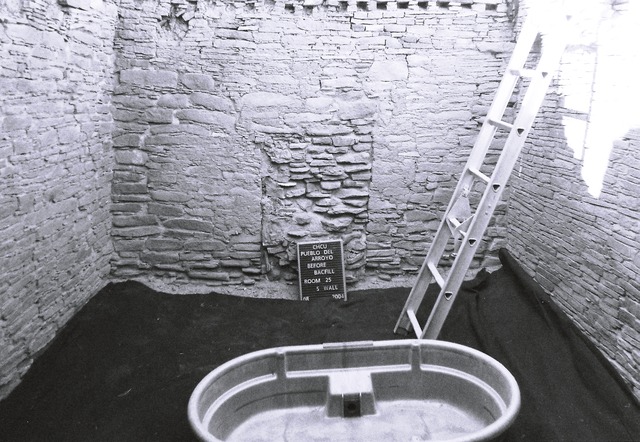

Photo type: Before Backfill 94324
Image #: 094324
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Wall: Year 2004
Backfill

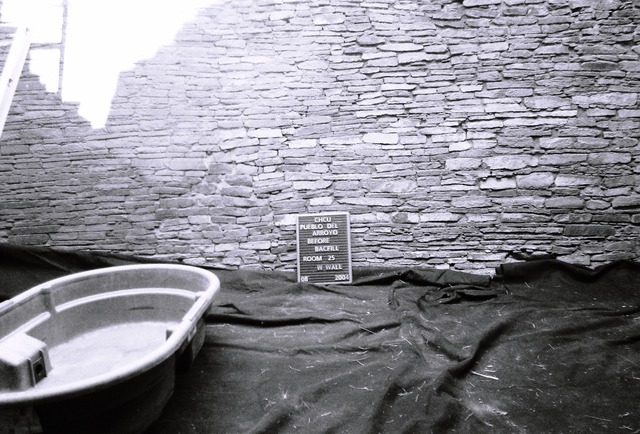

Photo type: Before Backfill 94322
Image #: 094322
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 25 Wall: Year 2004
Backfill

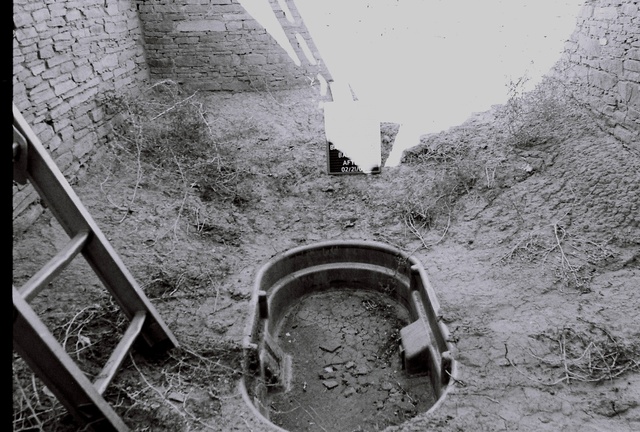

Photo type: After Backfill 82631
Image #: 082631
Catalog #:        Accession #: 806
