Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
6.0 Outside park Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 19/7/2004 End: 22/7/2004 Person Days: 3.0

Overall Comments: soft/wetter

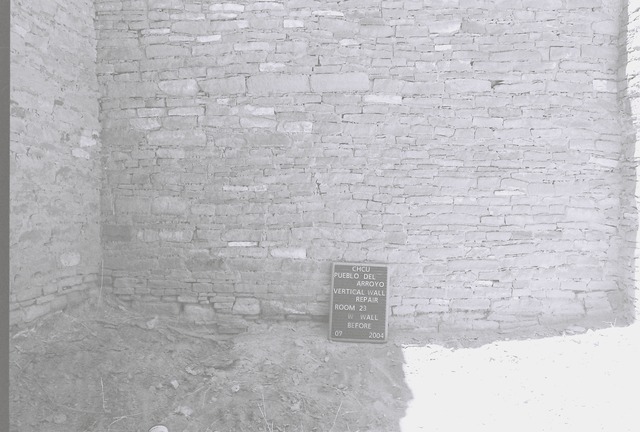

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94098
Image #: 094098
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

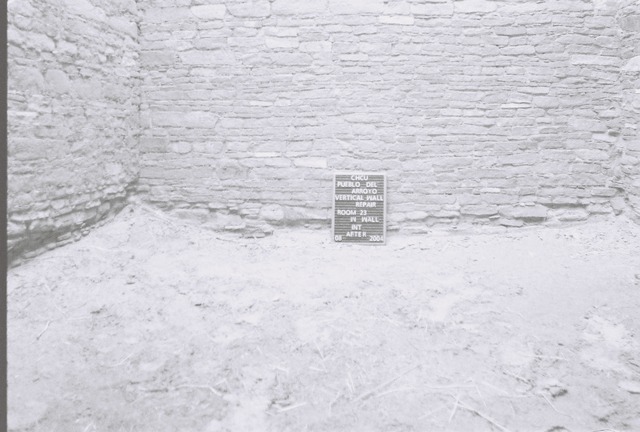

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: After 93986
Image #: 093986
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 36.0
Stone replaced (#): 55.0
Mortar (# buckets): 1.5

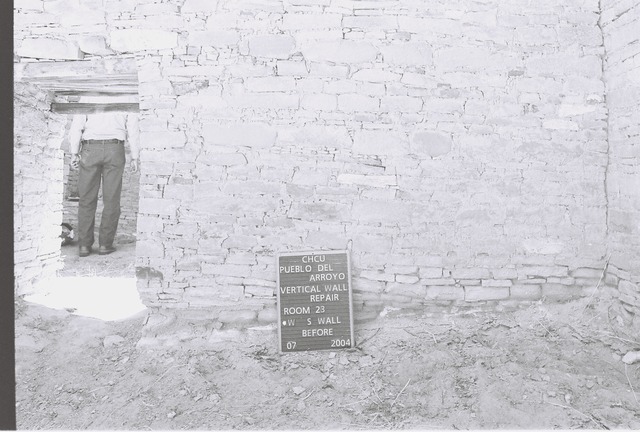

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94102
Image #: 094102
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

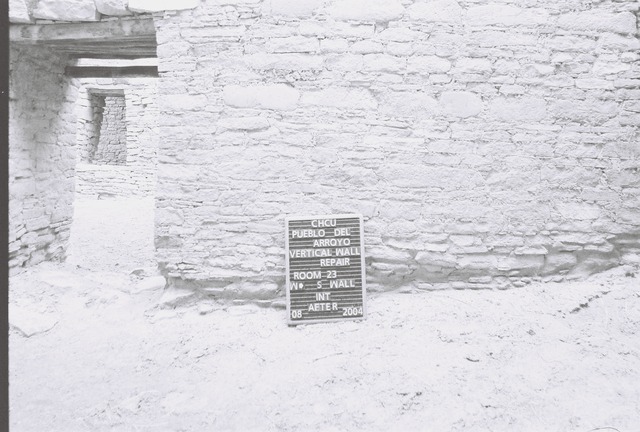

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 93987
Image #: 093987
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 72.5
Mortar (# buckets): 2.5

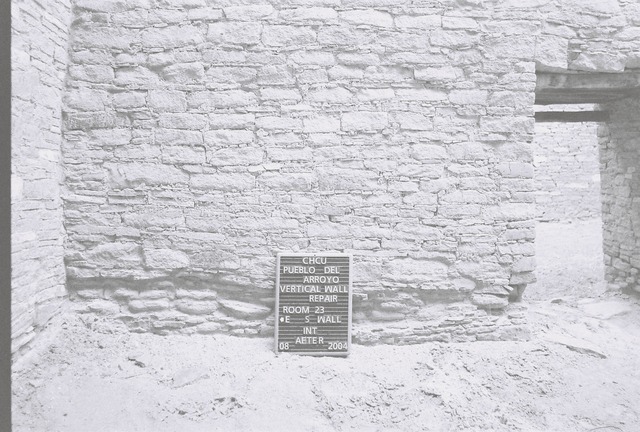

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 93988
Image #: 093988
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 72.5
Mortar (# buckets): 2.5

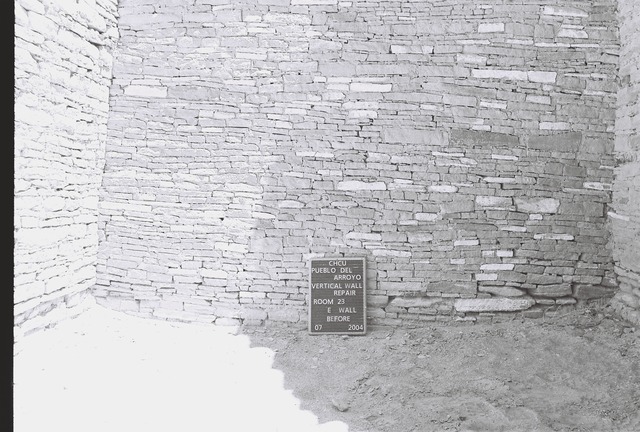

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94099
Image #: 094099
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

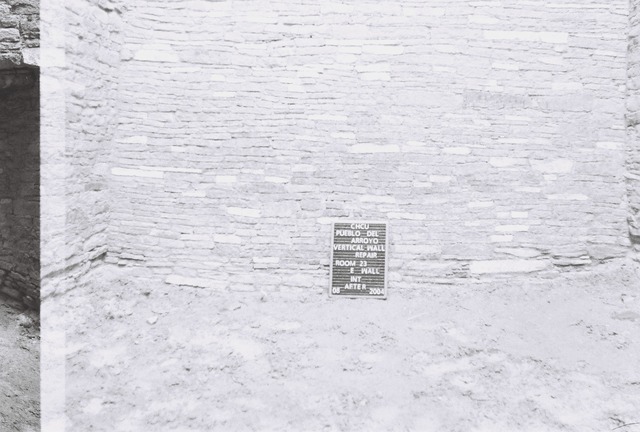

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 93989
Image #: 093989
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 38.0
Mortar (# buckets): 0.5
Treatment comment: pres record indicates 72.5 sq feet of pointing performed on EXT of E Wall, but no record created, no mortar used?? Was this just a memo for the next wall?

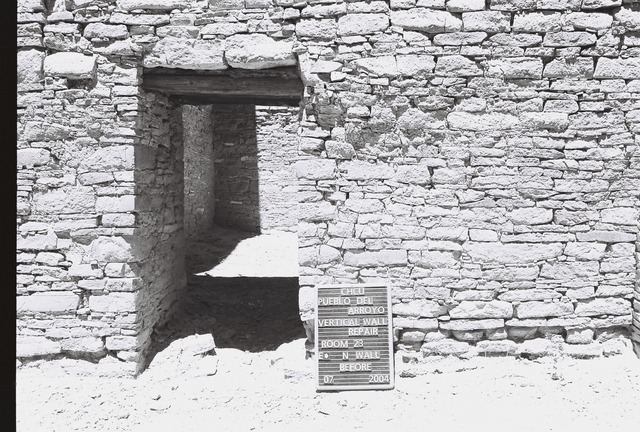

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94100
Image #: 094100
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

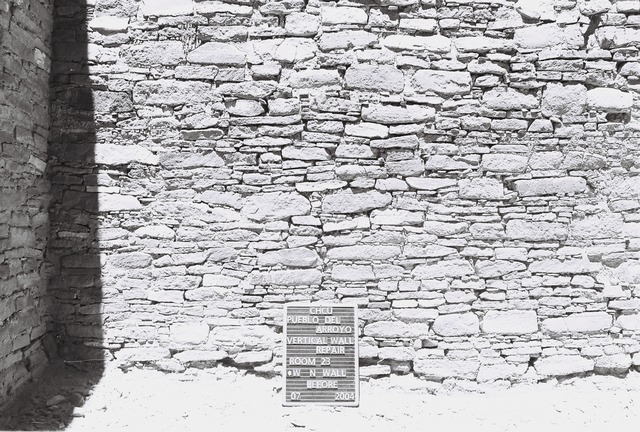

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94101
Image #: 094101
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

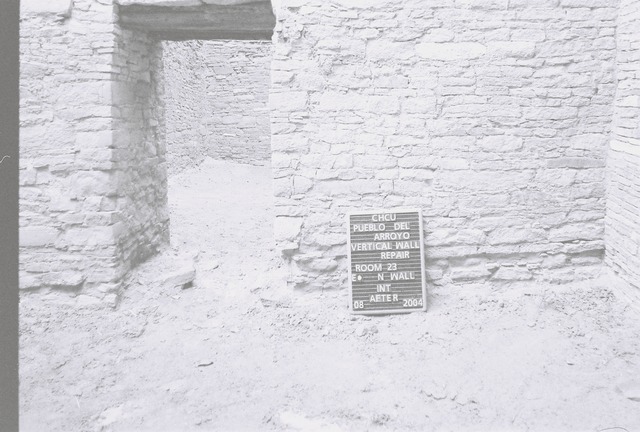

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 93984
Image #: 093984
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 60.0
Mortar (# buckets): 0.5

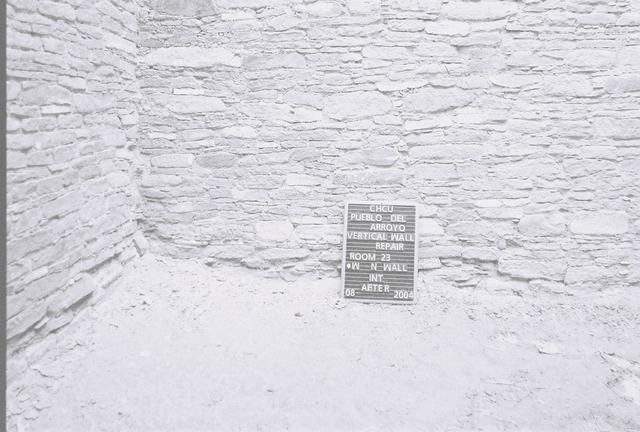

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Story: 1st Story Wall: North Interior Year 2004
Treatment
Photo type: After 93985
Image #: 093985
Catalog #:        Accession #: 806
Treatment:
Basal Wall Repair:
Repointing (sq ft): 60.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: comment: "There is no evap basin installed in this room 23. Water goes out into room 13." (South wall - per drawing)
Specific Information
Cubic yards of fill: 15.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

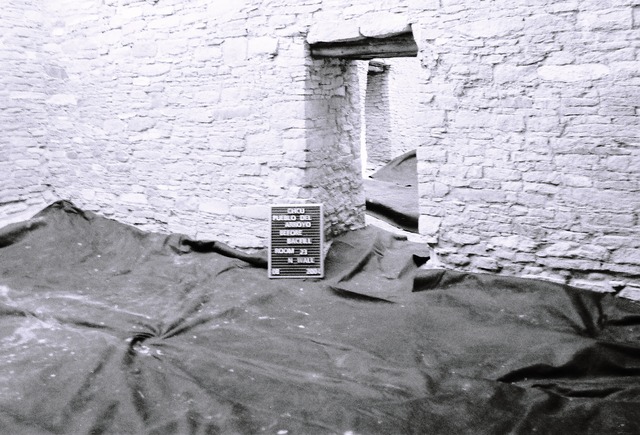

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Wall: Year 2004
Backfill
Photo type: Before Backfill 94336
Image #: 094336
Catalog #:        Accession #:

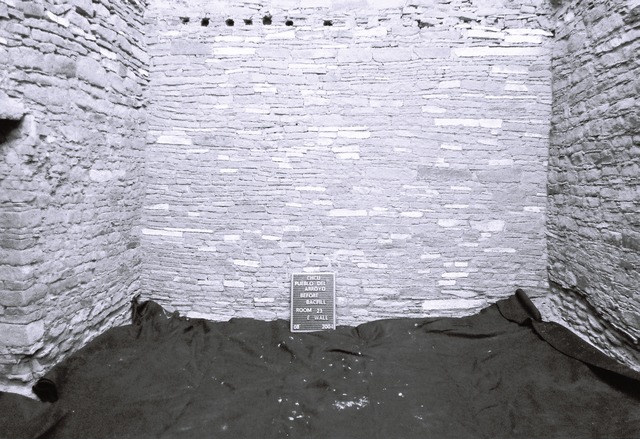

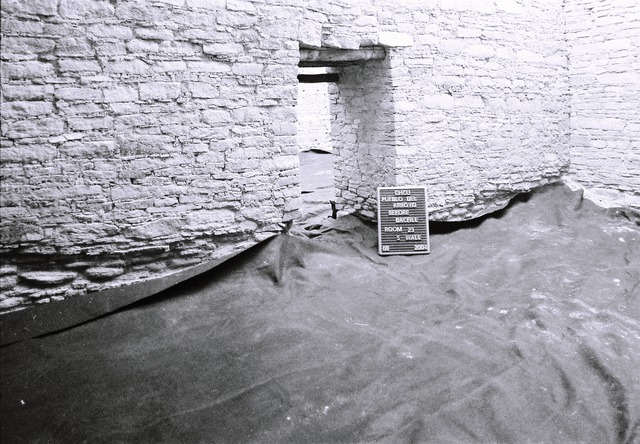

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Wall: Year 2004
Backfill
Photo type: Before Backfill 94337
Image #: 094337
Catalog #:        Accession #:

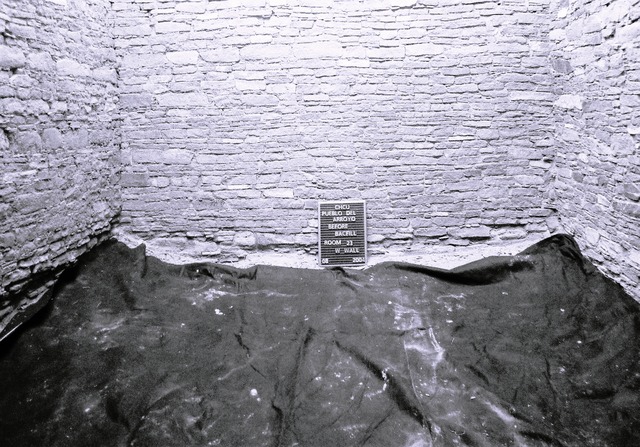

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Wall: Year 2004
Backfill
Photo type: Before Backfill 94334
Image #: 094334
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Wall: Year 2004
Backfill
Photo type: Before Backfill 94335
Image #: 094335
Catalog #:        Accession #:

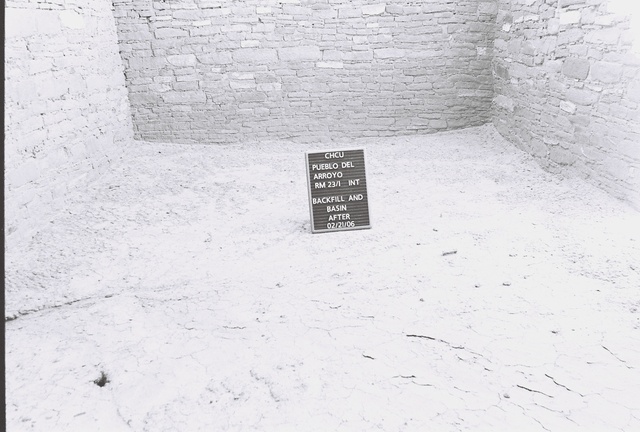

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Wall: Year 2004
Backfill
Photo type: After Backfill 82622
Image #: 082622
Catalog #:        Accession #: 806

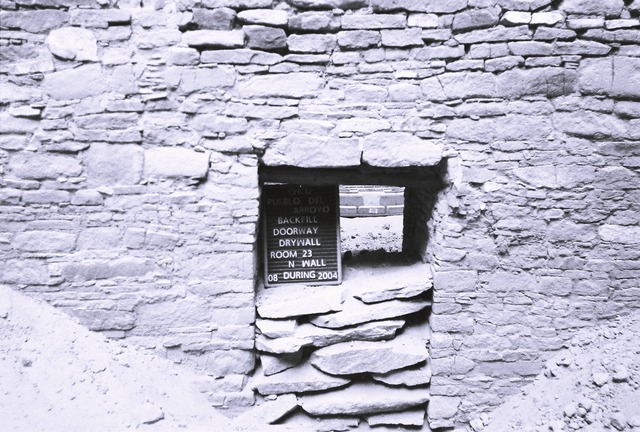

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 23 Wall: Year 2004
Backfill
Photo type: Before Backfill 94318
Image #: 094318
Catalog #:        Accession #: 806
