Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 4/8/2004 End: 9/8/2004 Person Days: 3.0

Overall Comments: soft/wetter

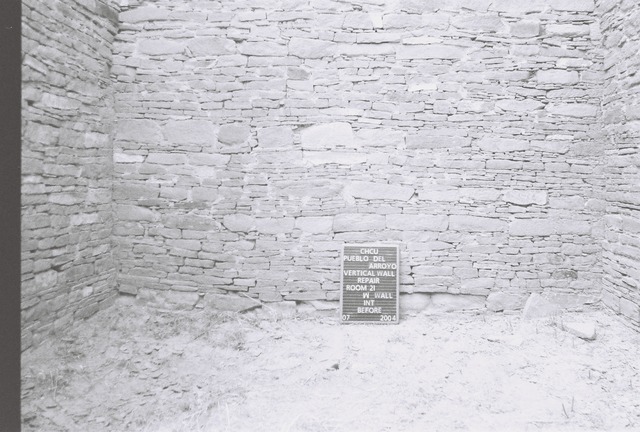

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: West Interior Year 2004
Treatment
Photo type: No After Photo Available 94118
Image #: 094118
Catalog #:        Accession #: 806
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 7.0
Mortar (# buckets): 0.5

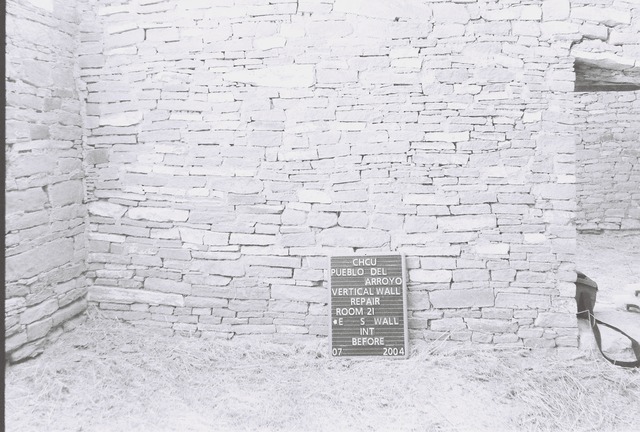

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94117
Image #: 094117
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

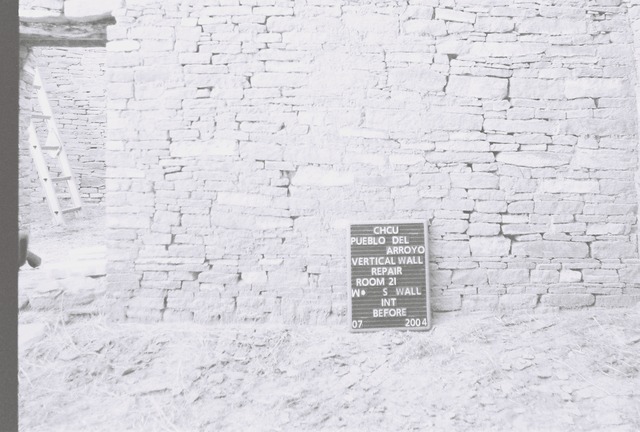

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94119
Image #: 094119
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: South Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 8.0
Masonry: 1.0
Stone replaced (#): 4.0
Mortar (# buckets): 1.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94115
Image #: 094115
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: East Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 9.0
Masonry: 2.0
Stone replaced (#): 41.0
Mortar (# buckets): 6.0
Treatment comment: 1/2 bucket mortar used on EXT E Wall, but no wall created.







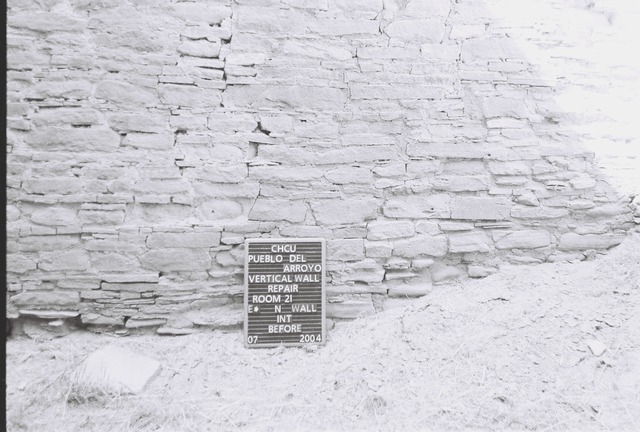

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94116
Image #: 094116
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

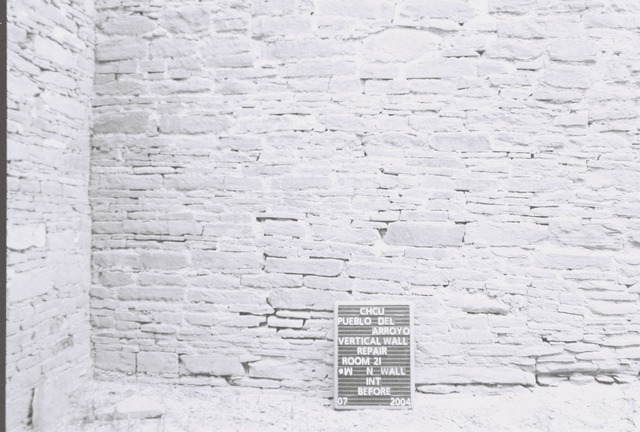

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94120
Image #: 094120
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Story: 1st Story Wall: North Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 14.0
Masonry: 2.0
Stone replaced (#): 6.0
Mortar (# buckets): 3.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 21 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: before photos taken July '04, after photos Feb '06
Specific Information
Cubic yards of fill: 25.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note: "contoured fill: drains water going down doorway (S wall) to Room #13" per comments on drawing
