Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 BLM quarry Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 9/8/2004 End: 24/8/2004 Person Days: 5.0

Overall Comments: soft/wetter


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: West Interior Year 2004
Condition

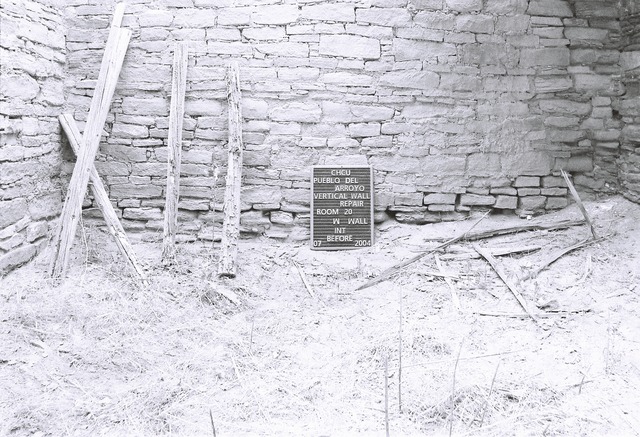

Photo type: Before 94131
Image #: 094131
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: West Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 8.0
Masonry: 2.0
Stone replaced (#): 12.0
Mortar (# buckets): 4.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94130
Image #: 094130
Catalog #:        Accession #: 806
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: South Interior Year 2004
Condition

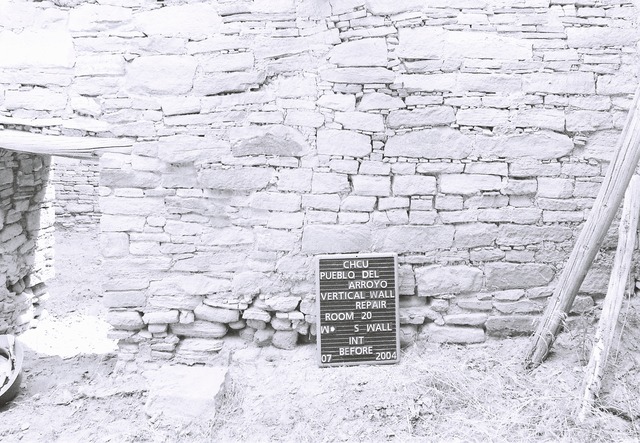

Photo type: Before 94133
Image #: 094133
Catalog #:        Accession #: 806
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: South Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 14.0
Masonry: 5.0
Stone replaced (#): 21.0
Mortar (# buckets): 9.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: East Interior Year 2004
Condition

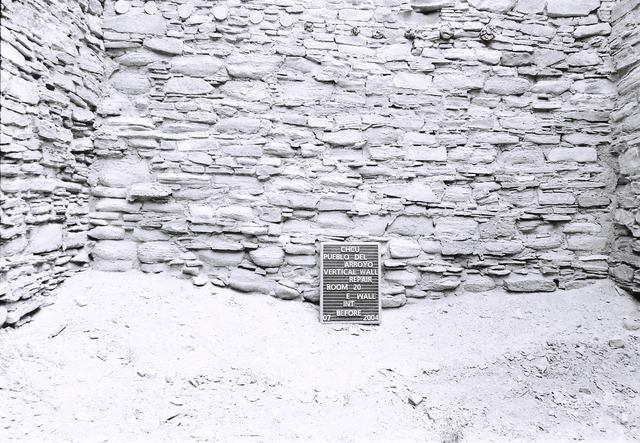

Photo type: Before 94128
Image #: 094128
Catalog #:        Accession #: 806
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: East Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 9.0
Masonry: 7.0
Stone replaced (#): 65.0
Mortar (# buckets): 12.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: North Interior Year 2004
Condition

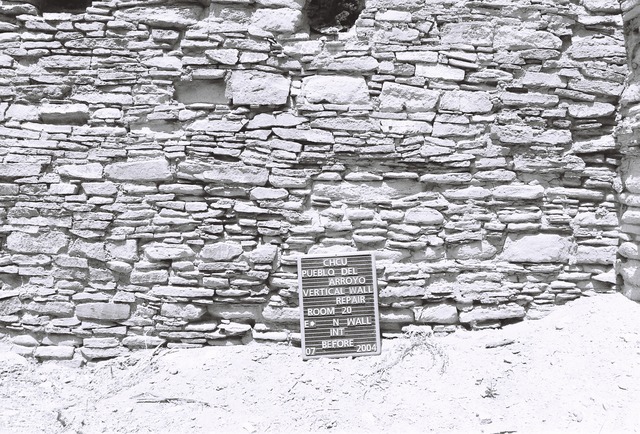

Photo type: Before 94129
Image #: 094129
Catalog #:        Accession #: 806
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: North Interior Year 2004
Condition

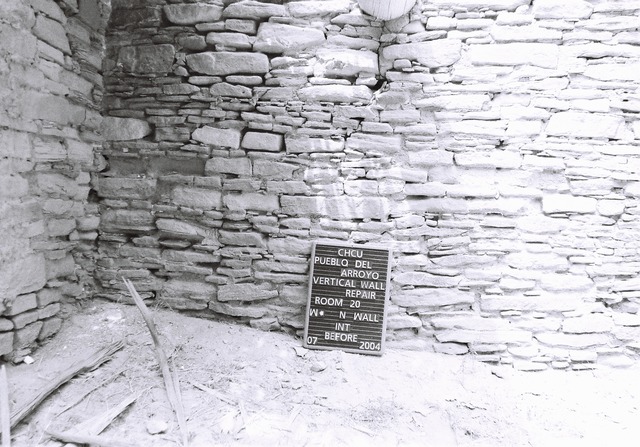

Photo type: Before 94132
Image #: 094132
Catalog #:        Accession #: 806
Condition:
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Story: 1st Story Wall: North Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 60.0
Masonry: 8.0
Stone replaced (#): 50.0
Mortar (# buckets): 14.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 20 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: wall treatment performed 8/'04, after photos taken 05/05
Specific Information
Cubic yards of fill: 25.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note: "drains water run down doorway to rm #12" (south) per comments on drawing No drains, no basins, no wood
