Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
9.0 Outside park Dirt Duraweld C (1:4)
3.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 4/8/2004 End: 9/8/2004 Person Days: 1.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: West Interior Year 2004
Condition

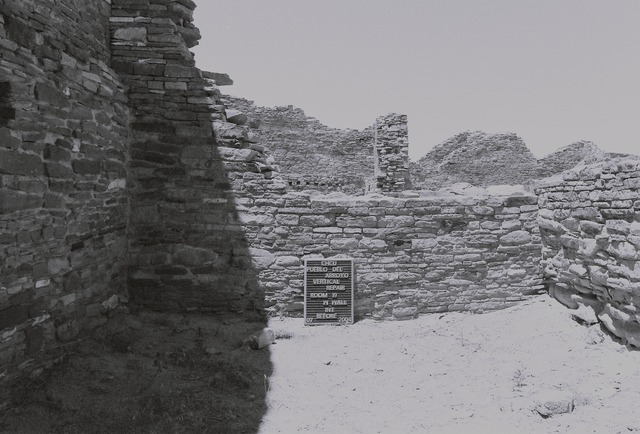

Photo type: Before 94065
Image #: 094065
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

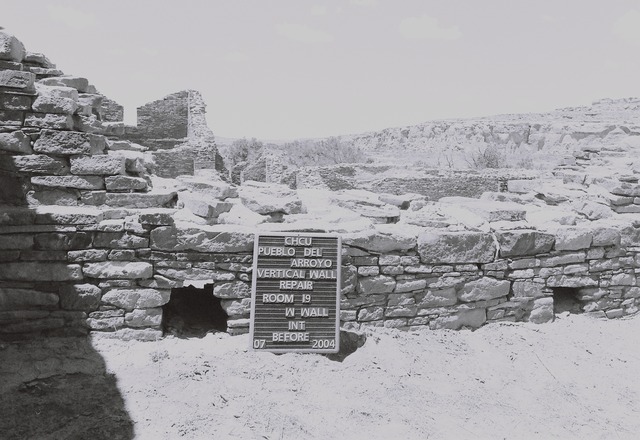

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: West Interior Year 2004
Condition
Photo type: Before 94066
Image #: 094066
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor

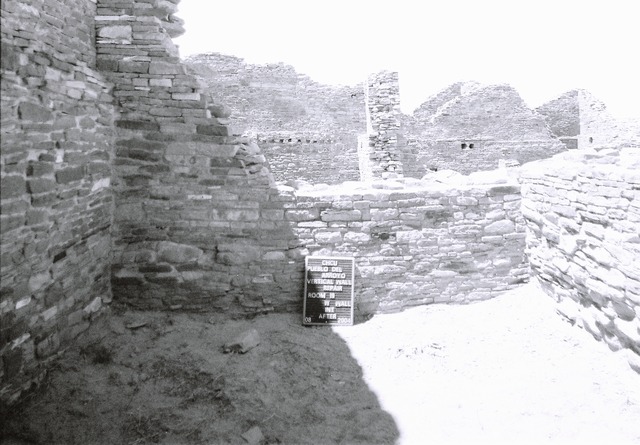

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: West Interior Year 2004
Treatment
Photo type: After 94270
Image #: 094270
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 1.0
Mortar (# buckets): 0.25







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: South Interior Year 2004
Treatment

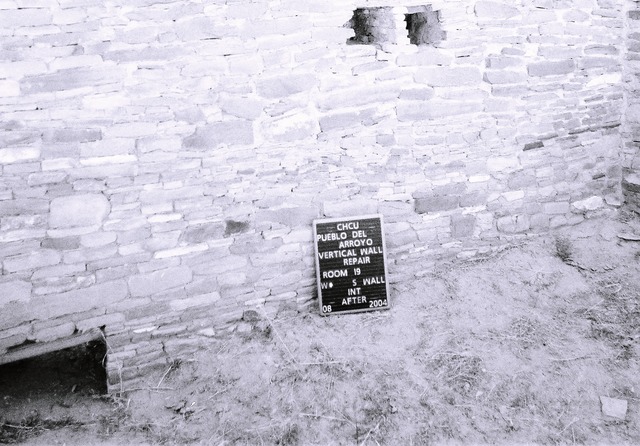

Photo type: After 94274
Image #: 094274
Catalog #:        Accession #:
Treatment:
Treatment comment: Wall repointed, stones replaced, and masonry reset.







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: South Interior Year 2004
Treatment

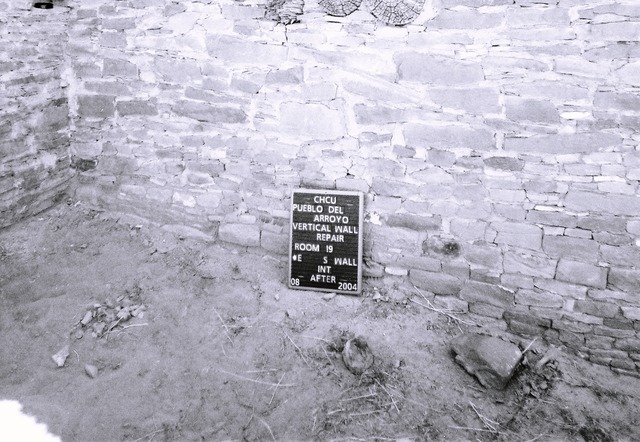

Photo type: After 94275
Image #: 094275
Catalog #:        Accession #:
Treatment:
Treatment comment: Wall repointed, stones replaced, and masonry reset.







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: South Interior Year 2004
Condition

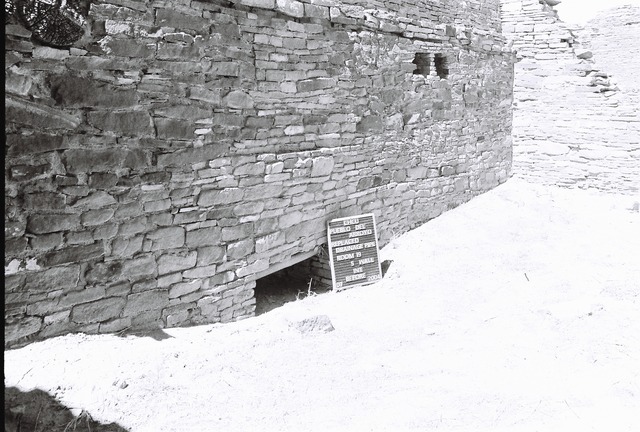

Photo type: Before 94158
Image #: 094158
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

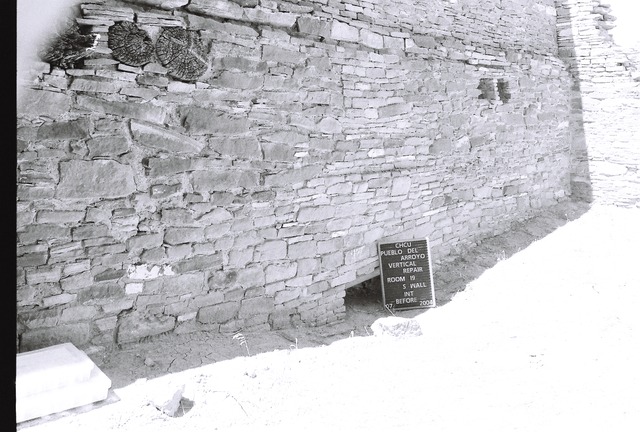

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: South Interior Year 2004
Condition
Photo type: Before 94171
Image #: 094171
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor

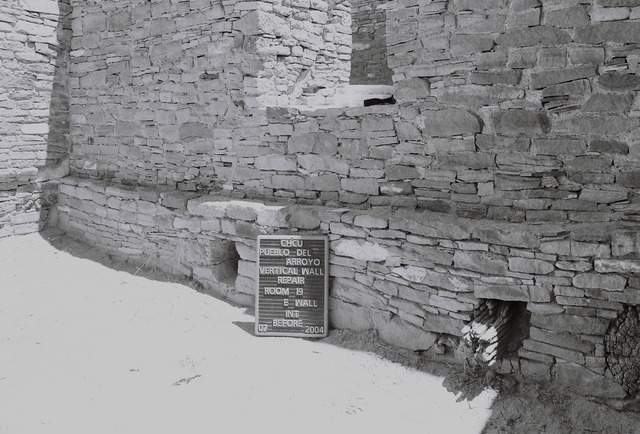

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: East Interior Year 2004
Condition
Photo type: Before 94068
Image #: 094068
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: East Interior Year 2004
Treatment
Photo type: After 94271
Image #: 094271
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 3.0
Stone replaced (#): 21.0
Mortar (# buckets): 0.5

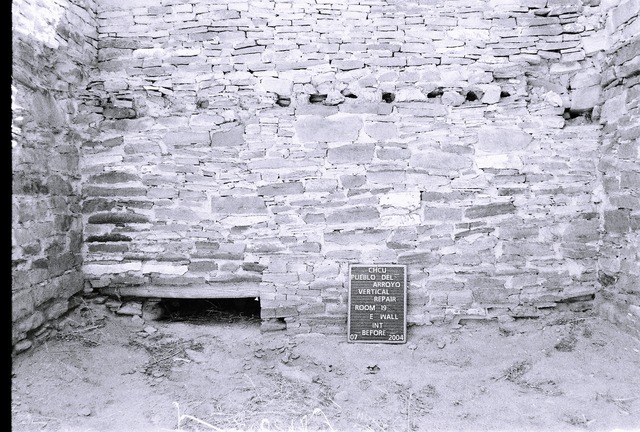

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: East Interior Year 2004
Condition
Photo type: Before 94169
Image #: 094169
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: North Interior Year 2004
Condition

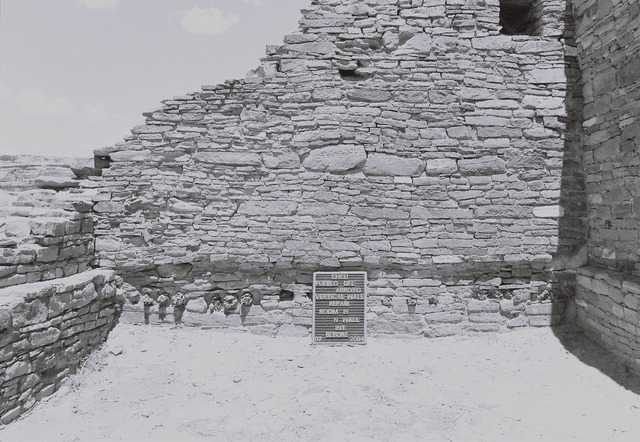

Photo type: Before 94067
Image #: 094067
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: North Interior Year 2004
Treatment

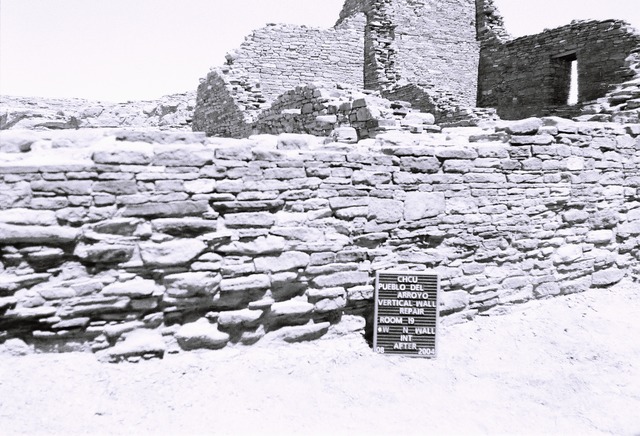

Photo type: After 94273
Image #: 094273
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 11.0
Stone replaced (#): 9.0
Mortar (# buckets): 1.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: North Interior Year 2004
Treatment

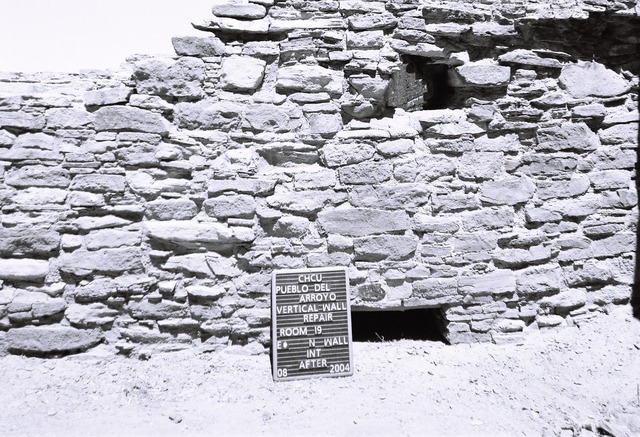

Photo type: After 94272
Image #: 094272
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 11.0
Stone replaced (#): 9.0
Mortar (# buckets): 1.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Story: 2nd Story Wall: North Interior Year 2004
Condition

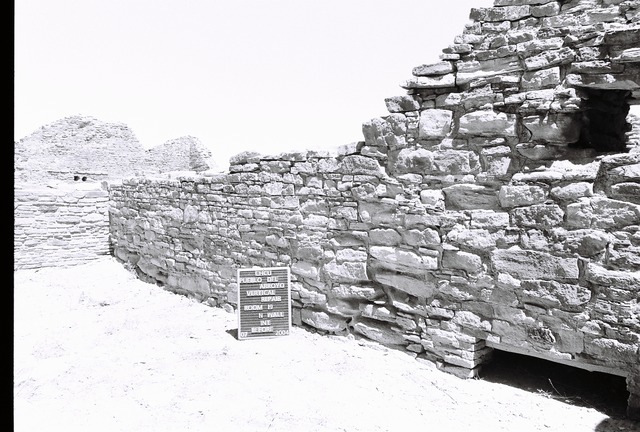

Photo type: Before 94170
Image #: 094170
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 19 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: walls treated July - aug 2004
Specific Information
Cubic yards of fill: 10.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 90 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through: Doorway      Other: 6
Drain pipe leaves goes to: room 146 outside roomblock to east
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note: no basins, no wood. No drawings on paper record
