Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
9.0 BLM quarry Dirt Duraweld C (1:4)
3.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 9/8/2004 End: 19/8/2004 Person Days: 6.5

Overall Comments: softer/wetter


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: West Interior Year 2004
Condition

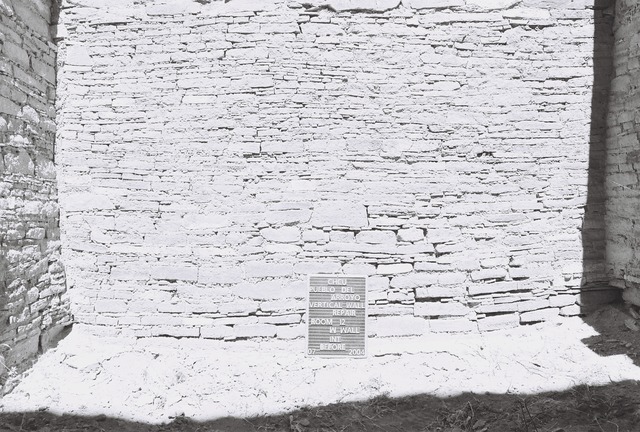

Photo type: Before 94121
Image #: 094121
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: West Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 90.0
Masonry: 1.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: South Interior Year 2004
Condition

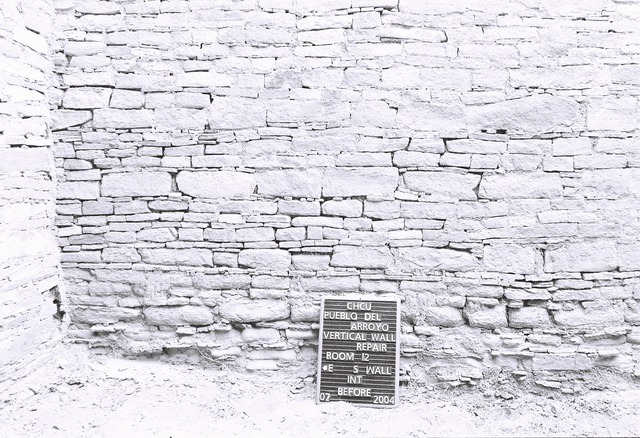

Photo type: Before 94127
Image #: 094127
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: South Interior Year 2004
Condition

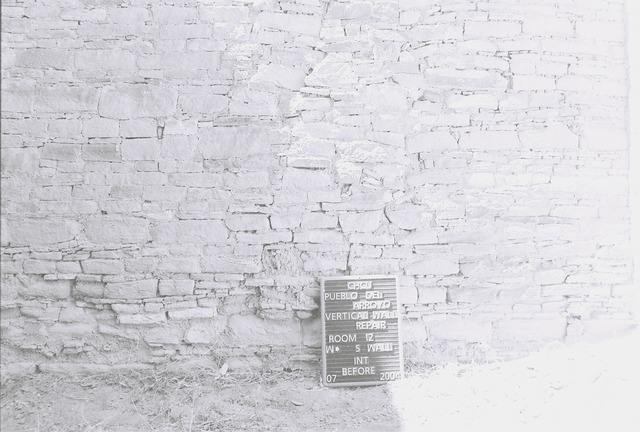

Photo type: Before 94123
Image #: 094123
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: South Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 90.0
Stone replaced (#): 2.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: East Interior Year 2004
Condition

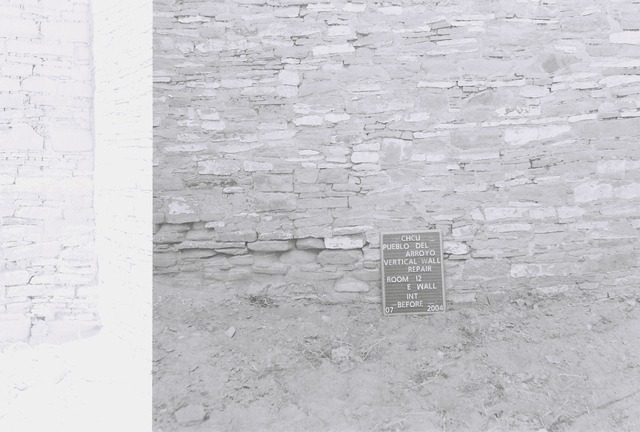

Photo type: Before 94124
Image #: 094124
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: East Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 36.0
Stone replaced (#): 4.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: North Interior Year 2004
Condition

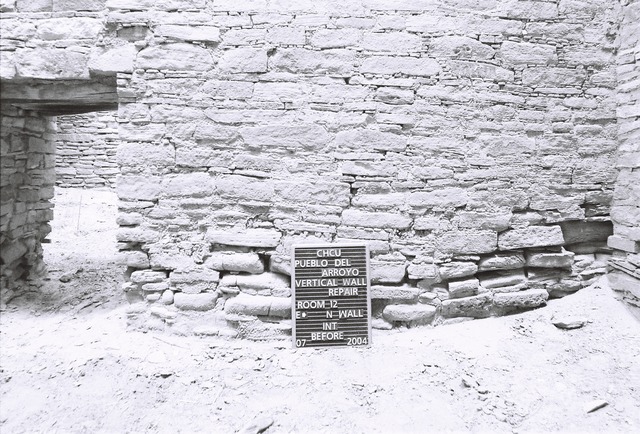

Photo type: Before 94126
Image #: 094126
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: North Interior Year 2004
Condition

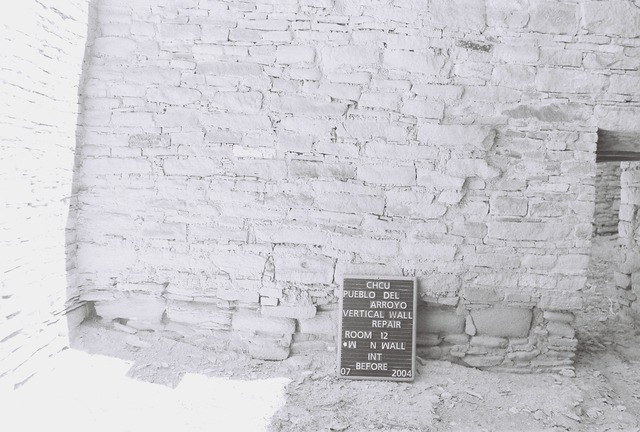

Photo type: Before 94122
Image #: 094122
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Story: 2nd Story Wall: North Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 60.0
Stone replaced (#): 6.0
Mortar (# buckets): 1.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 12 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments:
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size: 18" hi
Capacity: 50.0 gallons
Wood
Number of pieces buried: none
Note: no drains, no wood: drain water runs into doorway from room #20 @ N wall per drawing comments
