Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 9/8/2004 End: 11/8/2004 Person Days: 2.5

Overall Comments: westside doorway H. 26", W 15.5" missing wood beam, sockets; add one wood 2' x 24' long: comments "measurements are too large; walls are smaller - show roger"


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: West Interior Year 2004
Treatment

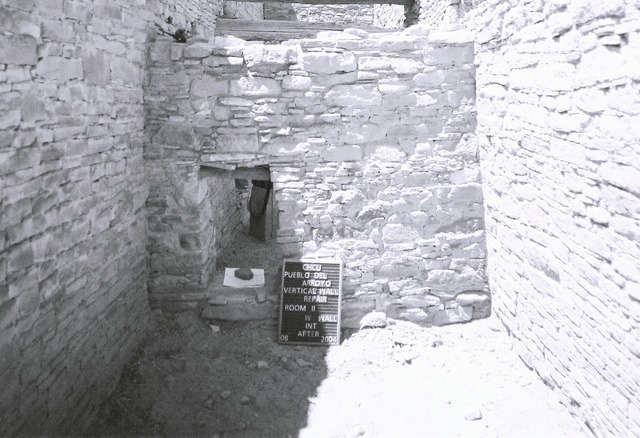

Photo type: After 94269
Image #: 094269
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 35.0
Stone replaced (#): 49.0
Mortar (# buckets): 4.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: West Interior Year 2004
Condition

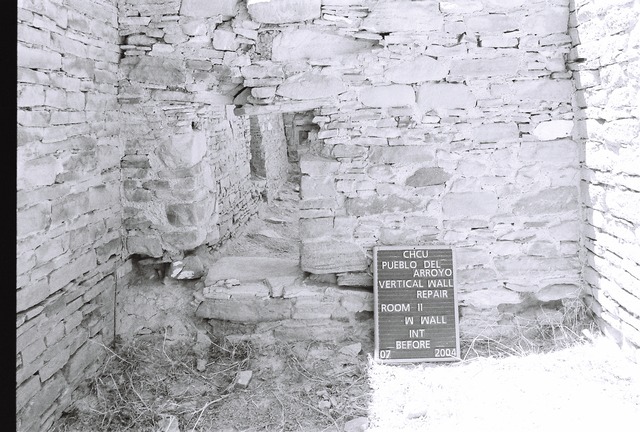

Photo type: Before 94192
Image #: 094192
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: South Interior Year 2004
Treatment

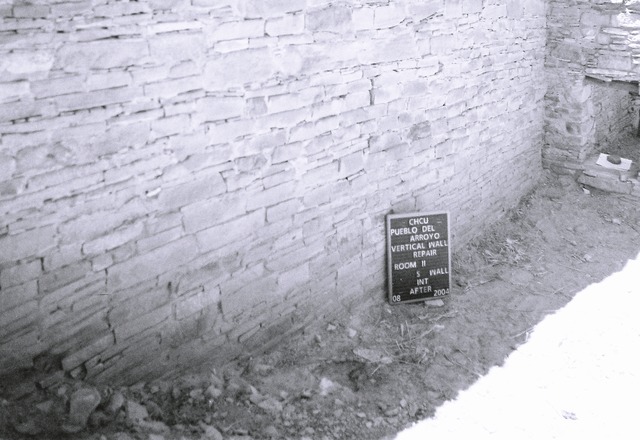

Photo type: After 94268
Image #: 094268
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 126.0
Stone replaced (#): 10.0
Mortar (# buckets): 2.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: South Interior Year 2004
Condition

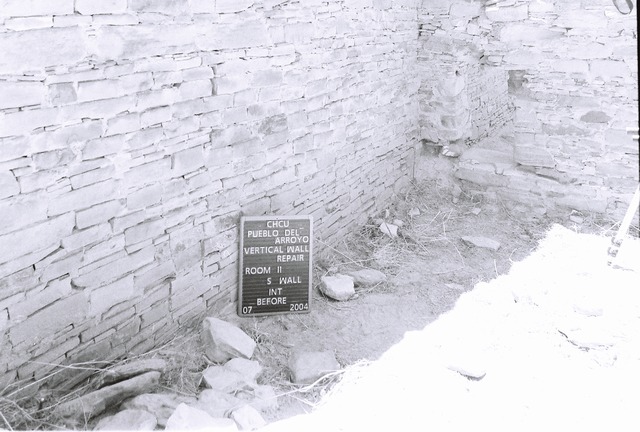

Photo type: Before 94194
Image #: 094194
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: East Interior Year 2004
Treatment

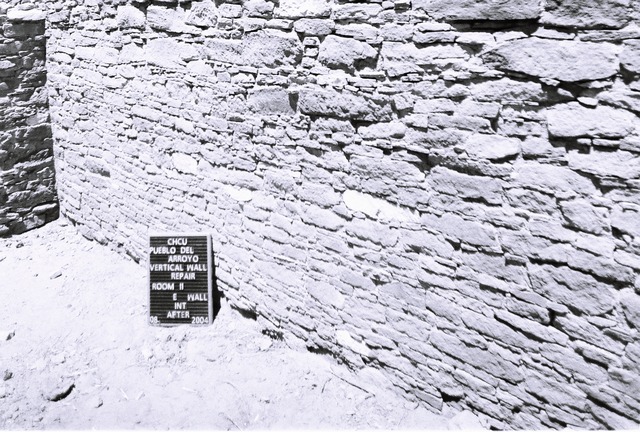

Photo type: After 94265
Image #: 094265
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: East Interior Year 2004
Treatment

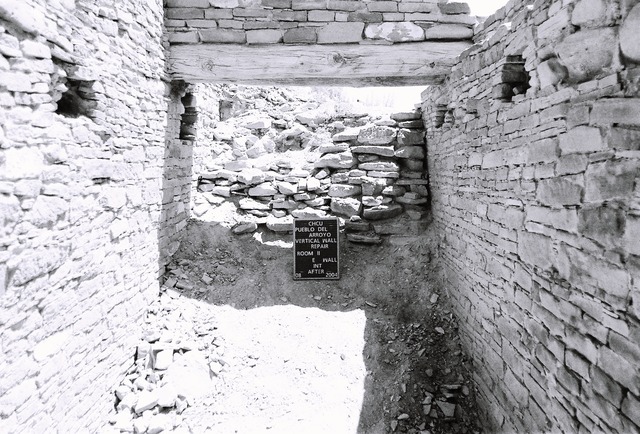

Photo type: After 94266
Image #: 094266
Catalog #:        Accession #:
Treatment:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: East Interior Year 2004
Condition

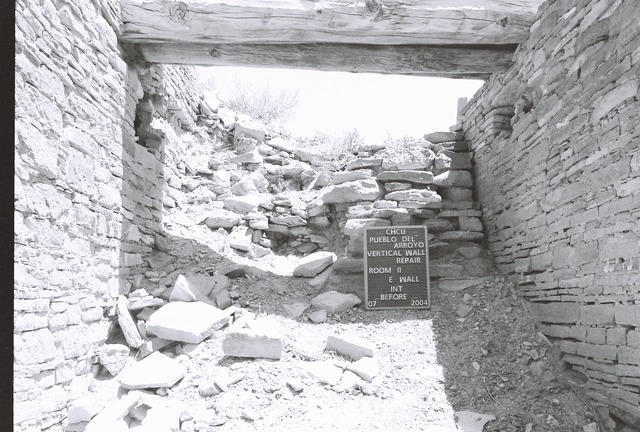

Photo type: Before 94191
Image #: 094191
Catalog #:        Accession #: 806
Condition:
Note:
     no comments re condition







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: North Interior Year 2004
Condition

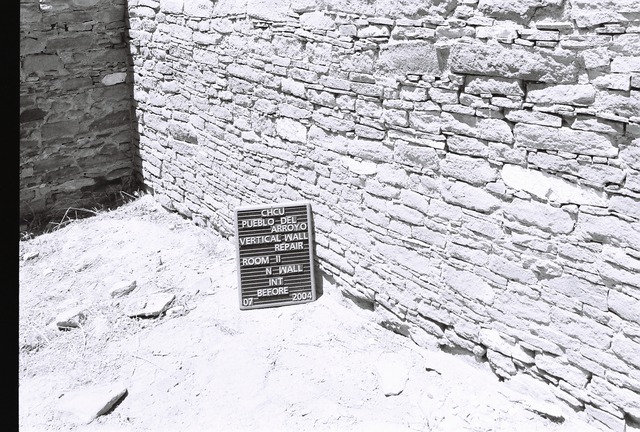

Photo type: Before 94193
Image #: 094193
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Story: 1st Story Wall: North Interior Year 2004
Treatment

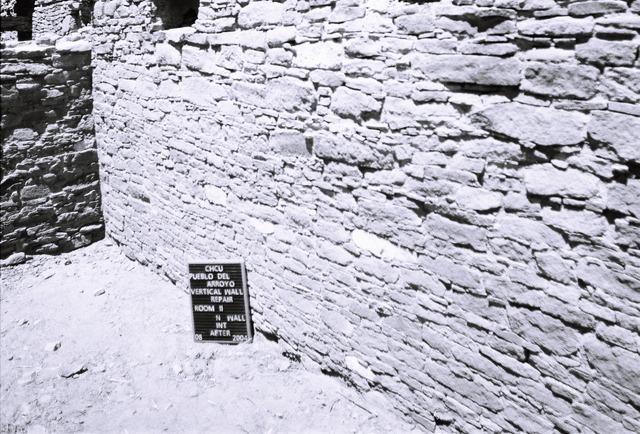

Photo type: After 94267
Image #: 094267
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 114.0
Stone replaced (#): 37.0
Mortar (# buckets): 3.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 11 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments:
Specific Information
Cubic yards of fill: 10.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note: no drains, no basins, no wood
