Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 BLM quarry Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 2/8/2004 End: 3/8/2004 Person Days: 1.0

Overall Comments: replaced wood in room 10, at E wall doorway. I wood lintels, replaced


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: West Interior Year 2004
Documentation
Photo type: Documentation, No Treatment 94185
Image #: 094185
Catalog #:        Accession #: 806
Documentation:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: South Interior Year 2004
Condition

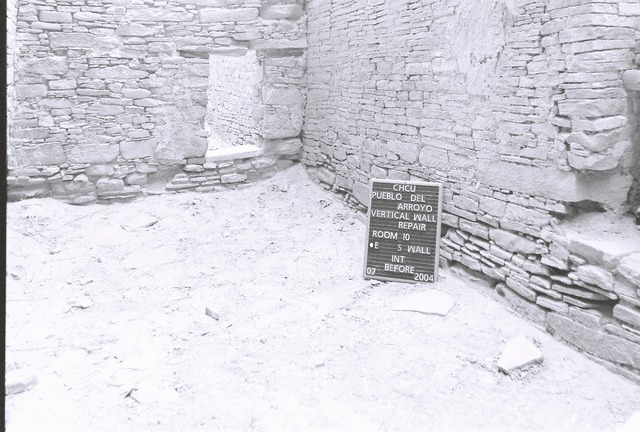

Photo type: Before 94189
Image #: 094189
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Fair
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Fair







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: South Interior Year 2004
Condition

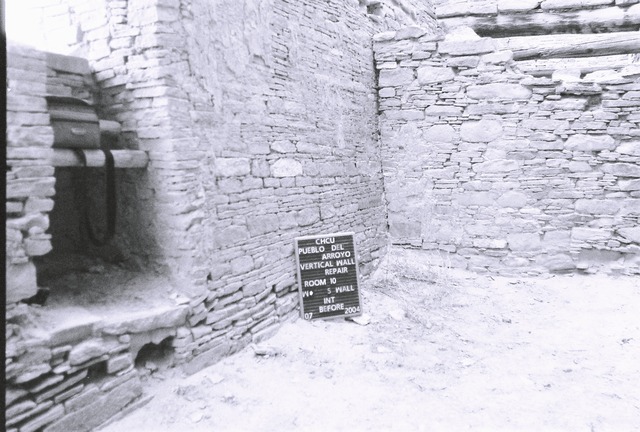

Photo type: Before 94190
Image #: 094190
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Fair
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Fair







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: South Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Treatment comment: no treatment indicated - will be backfilled







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94189
Image #: 094189
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Good







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: East Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Treatment comment: no treatment indicated - other than 1 lintel replacement per James Yazzie: East doorway







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: North Interior Year 2004
Condition

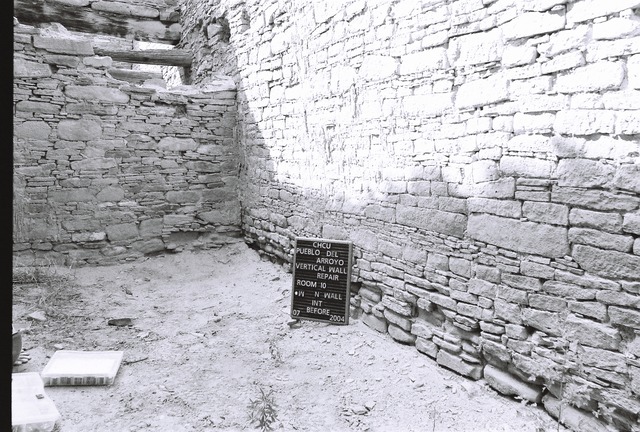

Photo type: Before 94187
Image #: 094187
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: North Interior Year 2004
Condition

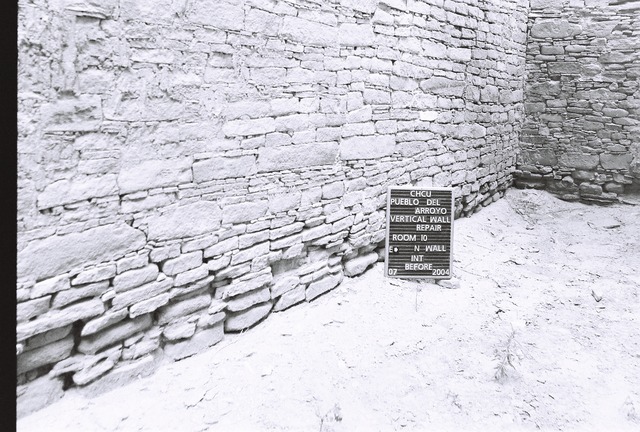

Photo type: Before 94188
Image #: 094188
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Story: 1st Story Wall: North Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Treatment comment: no treatment indicated....will be backfilled







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 10 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: before photos in July, after photos in Feb 06
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note: no drains, no basins, no wood, except comment on pres form about 1 wood lintel replaced
