Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
6.0 BLM quarry Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, North
Start: 3/8/2004 End: 12/8/2004 Person Days: 6.0

Overall Comments: more work done on "fair" condition before backfill


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Wall: West Interior Year 2004
Condition
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Wall: West Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 10.0
Masonry: 9.0
Stone replaced (#): 4.0
Stone fresh: 6.0
Mortar (# buckets): 2.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Wall: South Interior Year 2004
Condition
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Wall: South Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 32.0
Masonry: 27.0
Stone replaced (#): 88.0
Stone fresh: 100.0
Mortar (# buckets): 14.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Wall: North Interior Year 2004
Condition
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Story: 1st Story Wall: North Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 120.0
Masonry: 16.0
Stone replaced (#): 7.0
Stone fresh: 3.0
Mortar (# buckets): 4.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments:
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size: 12" hi
Capacity: 50.0 gallons
Wood
Number of pieces buried:
Note: Bottom of basin is 6" below bottom of new fill

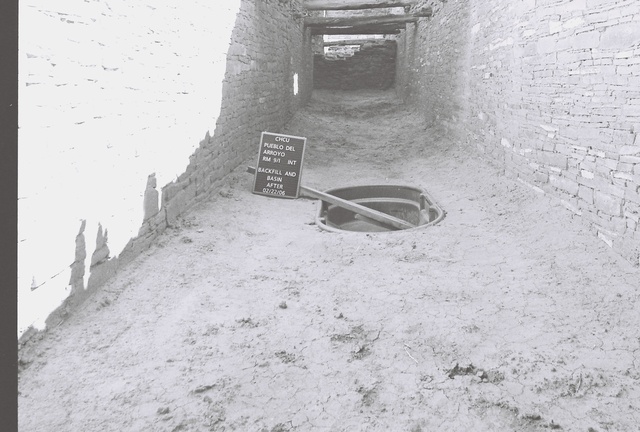

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 9 Wall: Year 2004
Backfill
Photo type: After Backfill 82620
Image #: 082620
Catalog #:        Accession #: 806
