Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Year 2012
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
Dirt Duraweld C (1:4)
Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, NE Quad, SE Quad, SW Quad, NW Quad
Start: 9/7/2012 End: 10/7/2012 Person Days: 2.0

Overall Comments: Harold Suina started work 7-18-12, finished 7-19-12, 2 mandays. Bryant Draper started work 7-18-12, finished 7-19-12, 2 mandays. Pilaster work started 8-6-12, finished 8-8-12, 3 mandays and work started 8-20-12, finished 8-20-12, 1 manday.

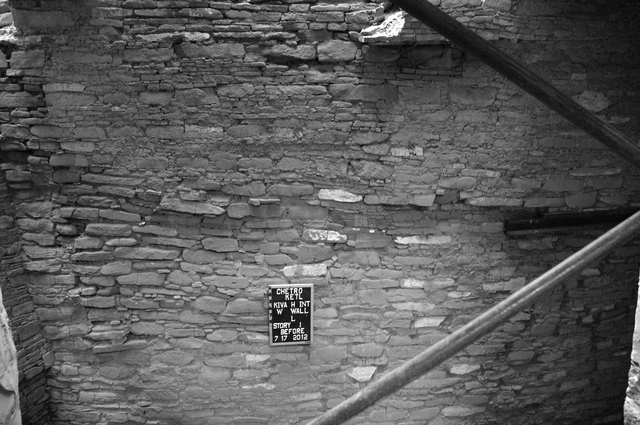

Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: West Interior Year 2012
Condition
Photo type: Before 117461
Image #: 117461
Catalog #:        Accession #: 867
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor







Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: West Interior Year 2012
Treatment

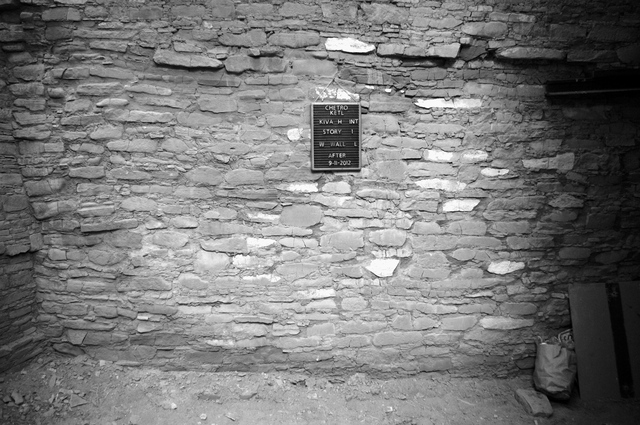

Photo type: After 117539
Image #: 117539
Catalog #:        Accession #: 867
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 5.0
Stone replaced (#): 9.0
Mortar (# buckets): 1.5







Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: NE Quad Interior Year 2012
Condition

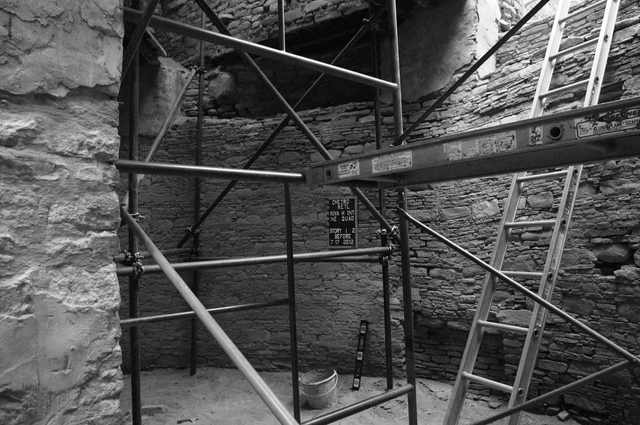

Photo type: Before 117458
Image #: 117458
Catalog #:        Accession #: 867
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor

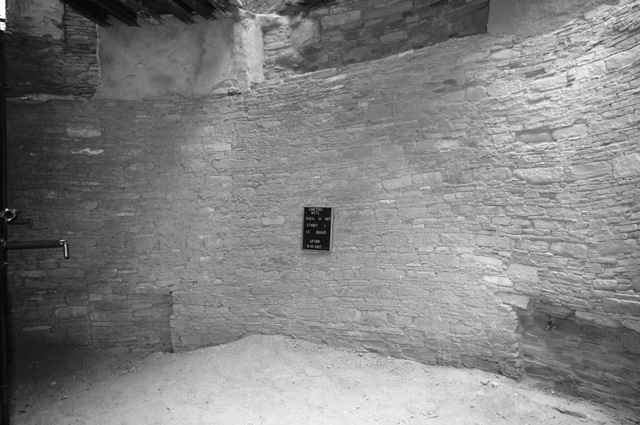

Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: NE Quad Interior Year 2012
Treatment
Photo type: After 117532
Image #: 117532
Catalog #:        Accession #: 867
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 2.0
Mortar (# buckets): 0.5

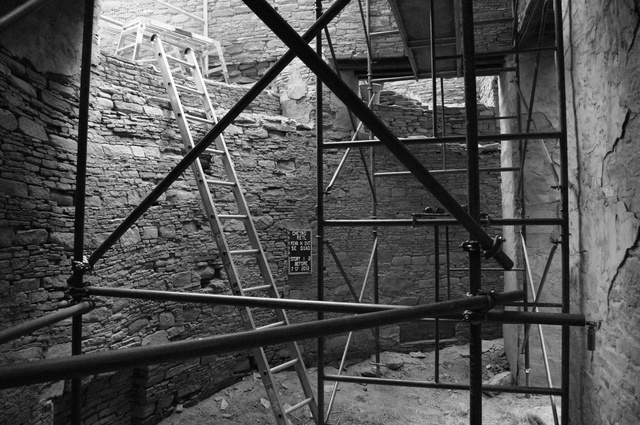

Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: SE Quad Interior Year 2012
Condition
Photo type: Before 117459
Image #: 117459
Catalog #:        Accession #: 867
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: SE Quad Interior Year 2012
Treatment

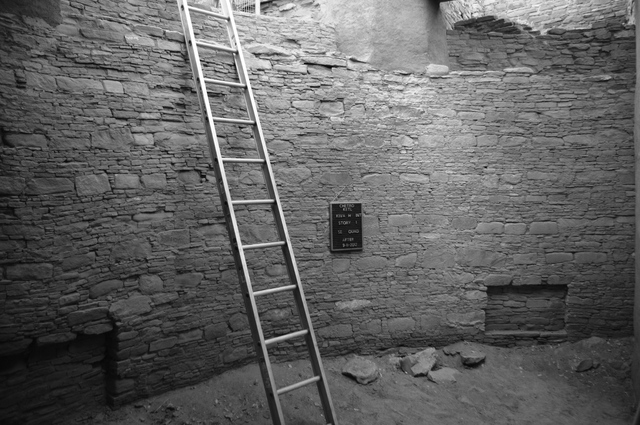

Photo type: After 117534
Image #: 117534
Catalog #:        Accession #: 867
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 70.0
Masonry: 6.0
Stone replaced (#): 10.0
Stone fresh: 10.0
Mortar (# buckets): 3.0

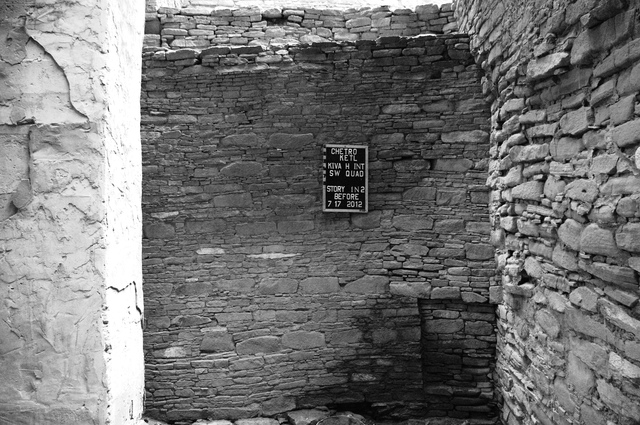

Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: SW Quad Interior Year 2012
Condition
Photo type: Before 117460
Image #: 117460
Catalog #:        Accession #: 867
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: SW Quad Interior Year 2012
Treatment

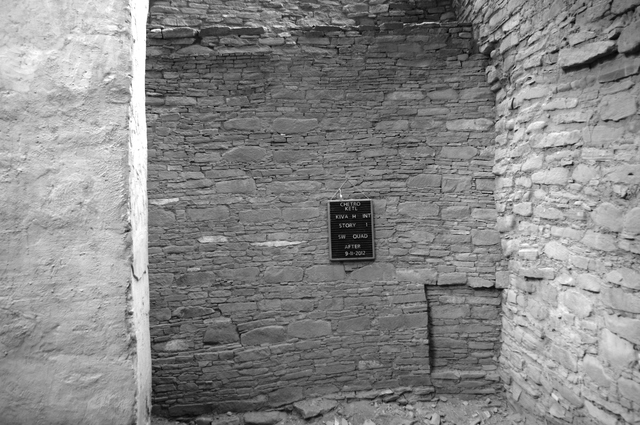

Photo type: After 117536
Image #: 117536
Catalog #:        Accession #: 867
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 100.0
Masonry: 57.0
Stone replaced (#): 20.0
Stone fresh: 10.0
Mortar (# buckets): 6.0







Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: NW Quad Interior Year 2012
Condition

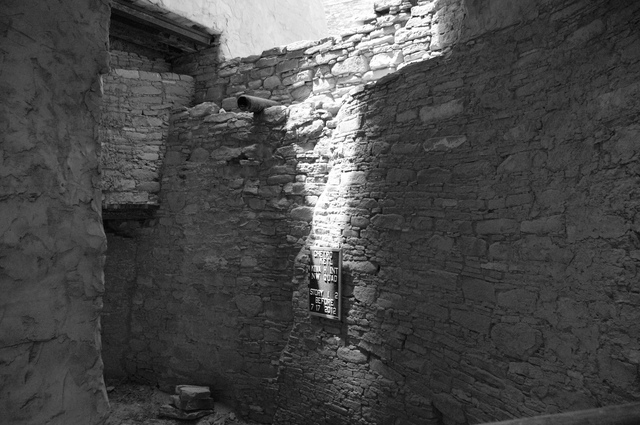

Photo type: Before 117457
Image #: 117457
Catalog #:        Accession #: 867
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor

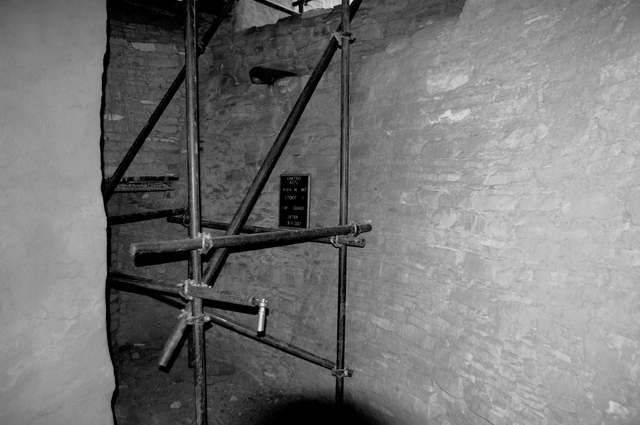

Chetro Ketl 29SJ 1928 Room: Kiva H Story: 1st Story Wall: NW Quad Interior Year 2012
Treatment
Photo type: After 117538
Image #: 117538
Catalog #:        Accession #: 867
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 48.0
Stone replaced (#): 9.0
Mortar (# buckets): 1.25







Chetro Ketl 29SJ 1928 Room: Kiva H Year 2012
Backfill
Start: 8/2012 End: 8/2012 Person days:
Comments:
Specific Information
Cubic yards of fill:
Backfill source type:
Backfill other:
Cloth barrier type:
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 3 45: 1 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: 4 inches
Avgerage height above geotextile: feet
Drain pipe enters room through: Other      Other: Existing drainage pipe from Kiva G
Drain pipe leaves room through: Over Wall      Other: Built wall over existing original wall
Drain pipe leaves goes to: Room 17
Evaporative Basins
Basin installed
Height above geotextile:
Basin size: 3x2x1
Capacity: gallons
Wood
Number of pieces buried:
Note:

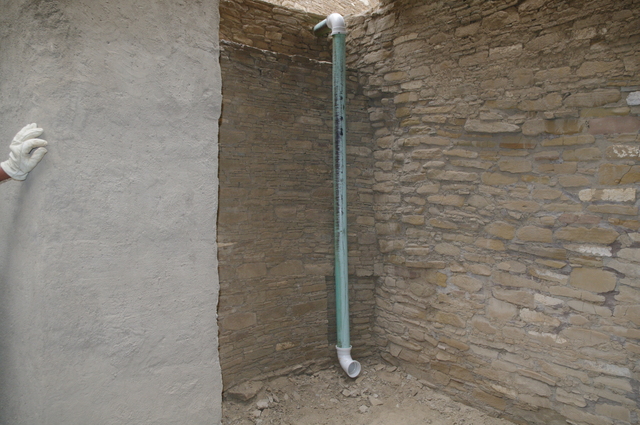

Chetro Ketl 29SJ 1928 Room: Kiva H Wall: South Year 2012
Backfill
Photo type: After Backfill 118118
Image #: 118118
Catalog #:        Accession #: 867







Chetro Ketl 29SJ 1928 Room: Kiva H Wall: North Year 2012
Backfill

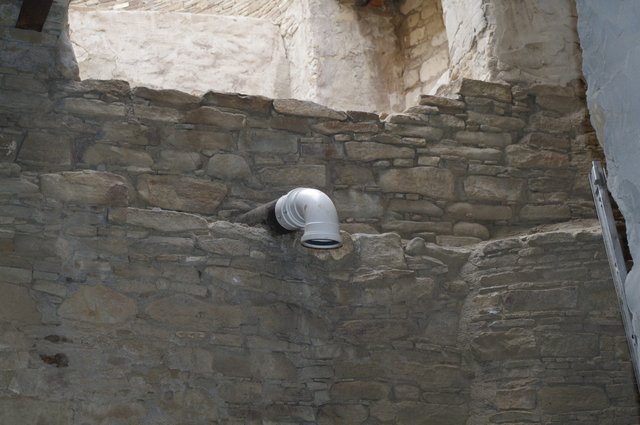

Photo type: After Backfill 118119
Image #: 118119
Catalog #:        Accession #: 867

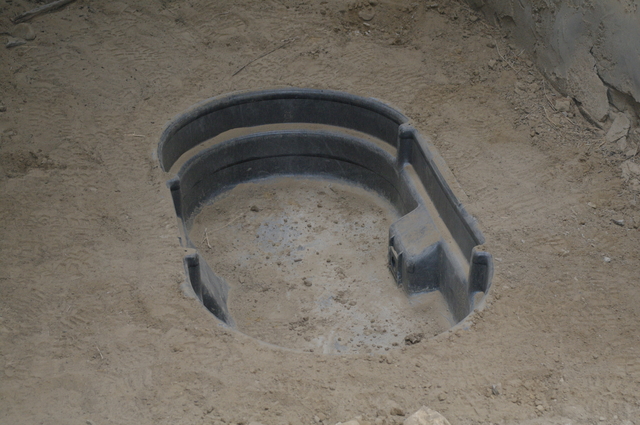

Chetro Ketl 29SJ 1928 Room: Kiva H Wall: Floor Year 2012
Backfill
Photo type: After Backfill 118120
Image #: 118120
Catalog #:        Accession #: 867

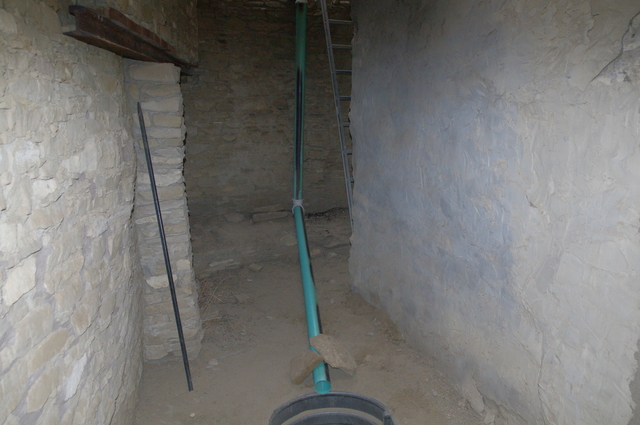

Chetro Ketl 29SJ 1928 Room: Kiva H Wall: North Year 2012
Backfill
Photo type: After Backfill 118121
Image #: 118121
Catalog #:        Accession #: 867







Chetro Ketl 29SJ 1928 Room: Kiva H Wall: South Year 2012
Backfill

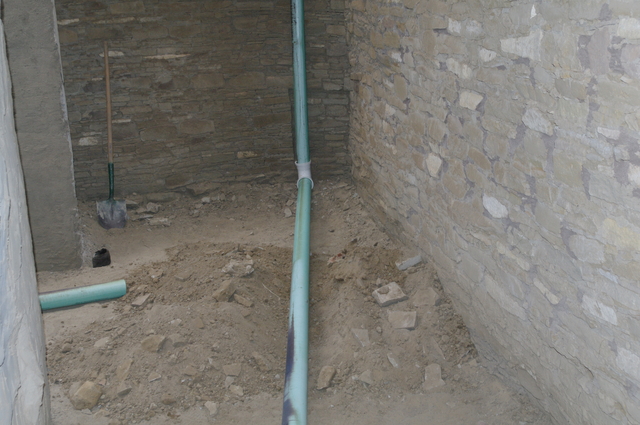

Photo type: After Backfill 118122
Image #: 118122
Catalog #:        Accession #: 867
