Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 3/8/2004 End: 3/8/2004 Person Days: 0.5

Overall Comments: duraweld mix soft/wetter


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: West Interior Year 2004
Treatment

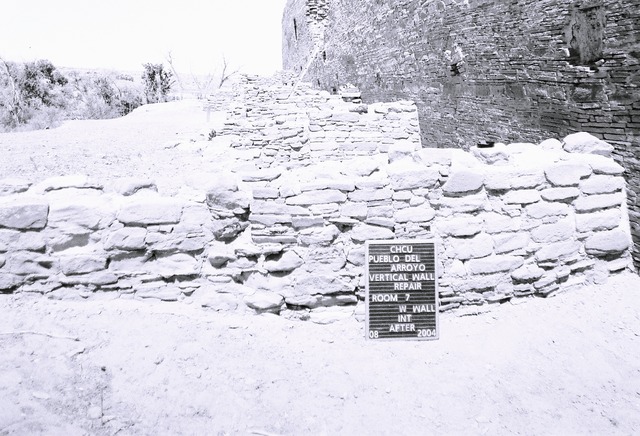

Photo type: After 94262
Image #: 094262
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 7.0
Stone replaced (#): 5.0
Capping: 5.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: West Interior Year 2004
Condition

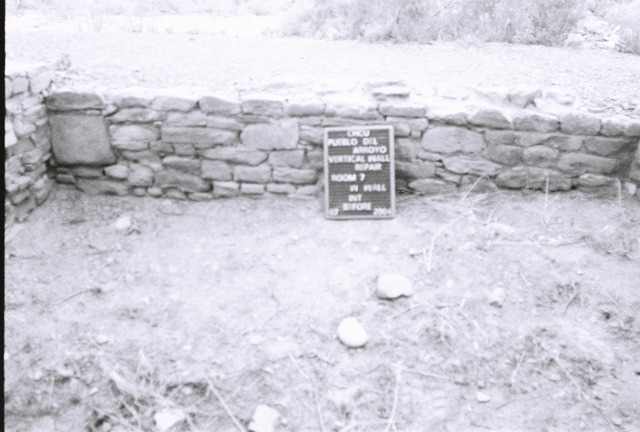

Photo type: Before 94181
Image #: 094181
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: South Interior Year 2004
Treatment

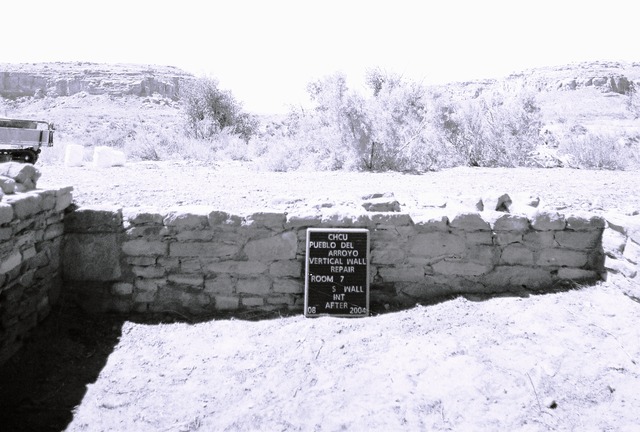

Photo type: After 94261
Image #: 094261
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 6.0
Stone replaced (#): 9.0
Capping: 5.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: South Interior Year 2004
Condition

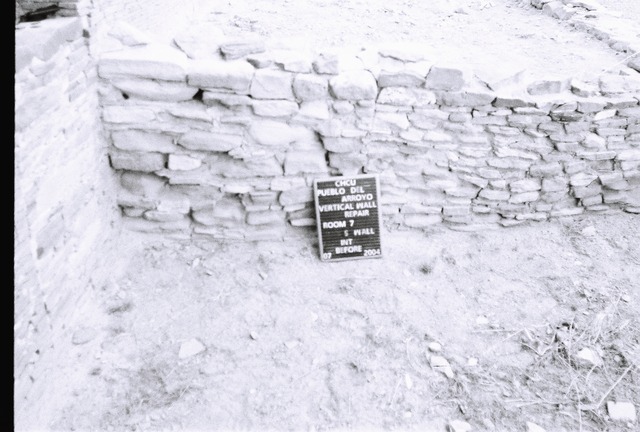

Photo type: Before 94183
Image #: 094183
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: East Interior Year 2004
Treatment

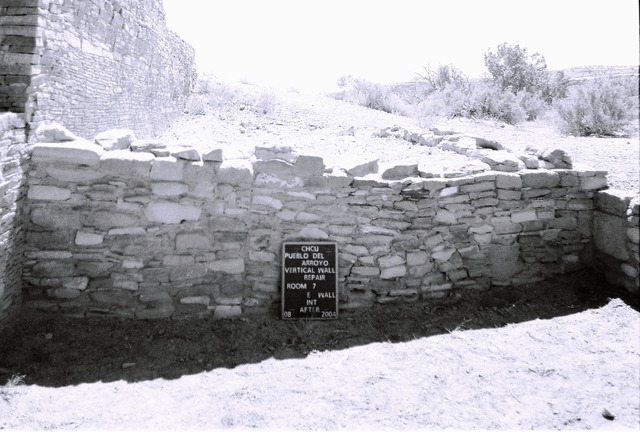

Photo type: After 94264
Image #: 094264
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 5.0
Stone replaced (#): 9.0
Capping: 5.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: East Interior Year 2004
Condition

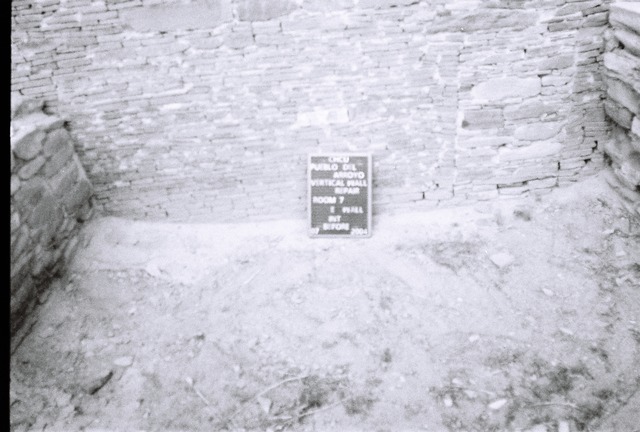

Photo type: Before 94182
Image #: 094182
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: North Interior Year 2004
Treatment

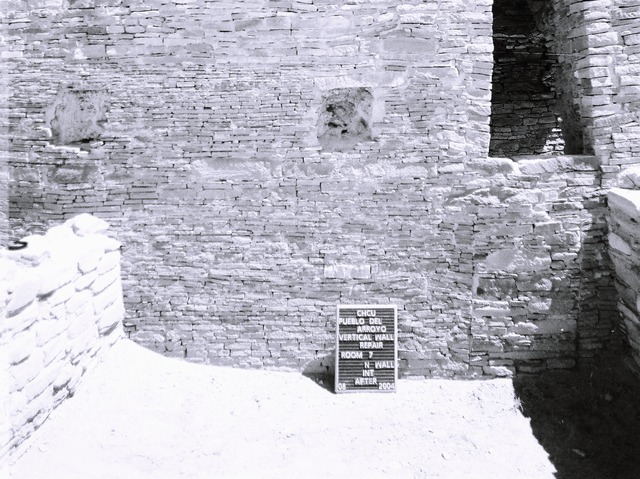

Photo type: After 94263
Image #: 094263
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 6.0
Stone replaced (#): 3.0
Capping: 5.0
Mortar (# buckets): 2.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Story: 1st Story Wall: North Interior Year 2004
Condition

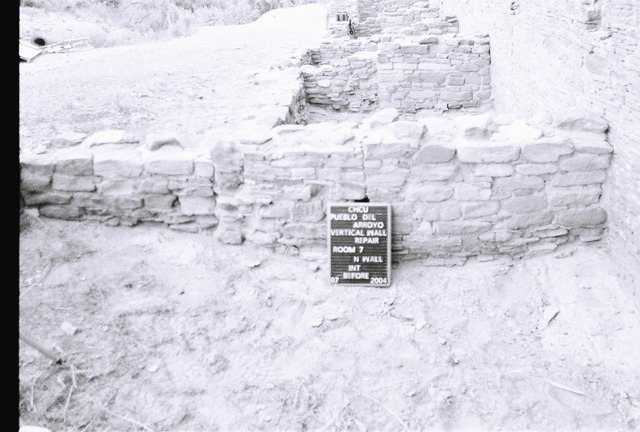

Photo type: Before 94184
Image #: 094184
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Note:
     Original db Other: repointing Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Year 2004
Backfill
Start: Not specified/8/2004 End: Not specified/8/2004 Person days:
Comments:
Specific Information
Cubic yards of fill: 2.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Wall: Year 2004
Backfill

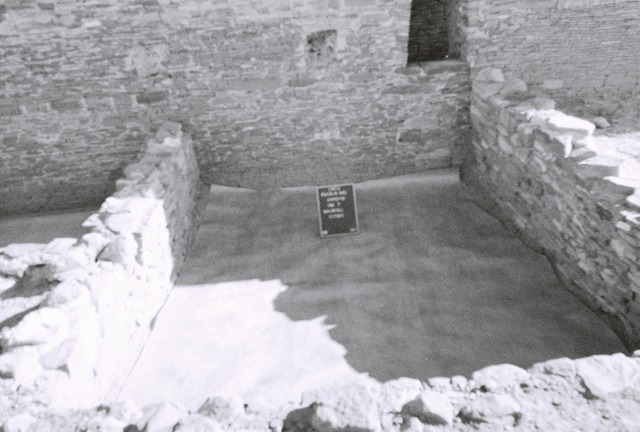

Photo type: Before Backfill 94288
Image #: 094288
Catalog #:        Accession #:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 7 Wall: Year 2004
Backfill

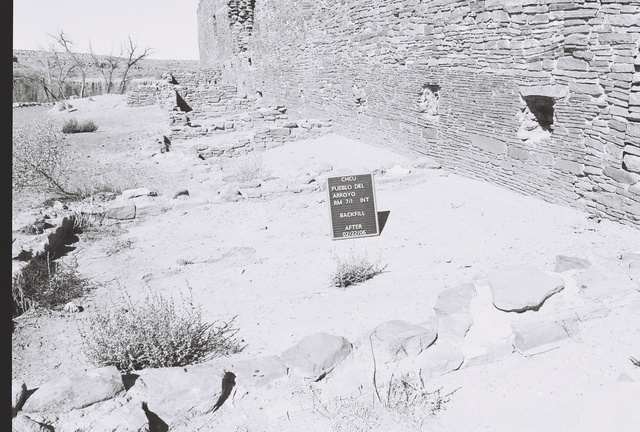

Photo type: After Backfill 82619
Image #: 082619
Catalog #:        Accession #: 806
