Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 3/8/2004 End: 3/8/2004 Person Days: 1.5

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: West Interior Year 2004
Condition

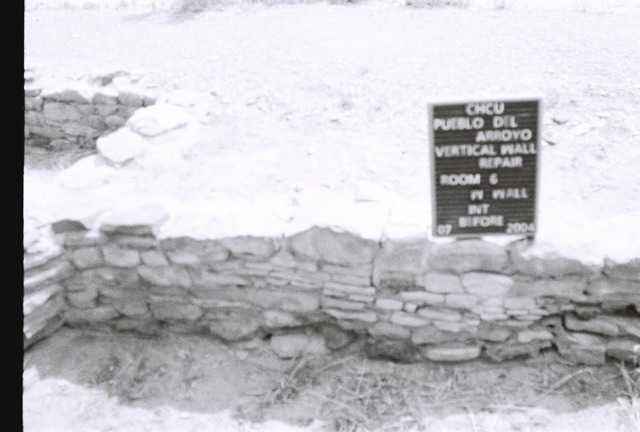

Photo type: Before 94179
Image #: 094179
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: West Interior Year 2004
Condition

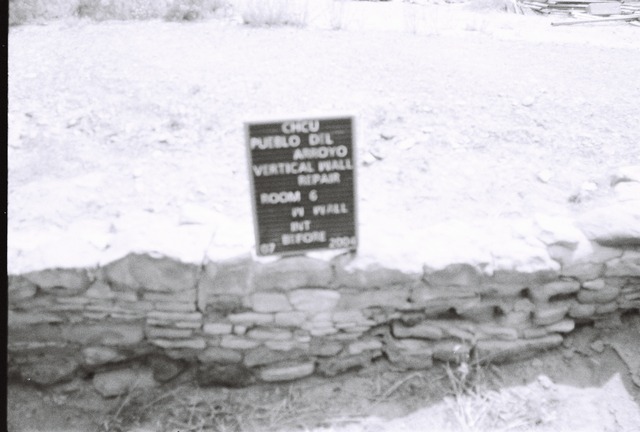

Photo type: Before 94180
Image #: 094180
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: West Interior Year 2004
Treatment
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 6.0
Masonry: 6.0
Stone replaced (#): 7.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: South Interior Year 2004
Treatment

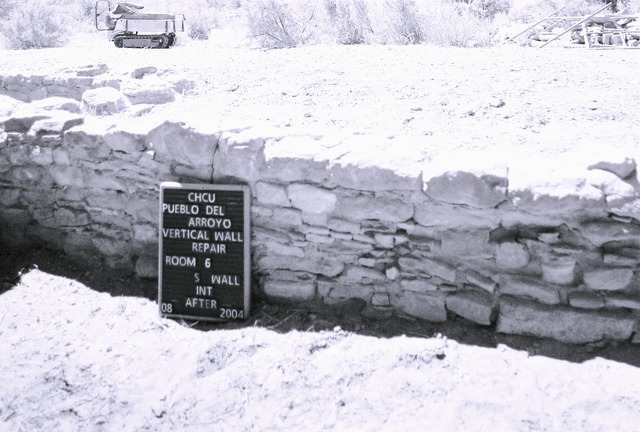

Photo type: After 94260
Image #: 094260
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 7.0
Masonry: 6.0
Stone replaced (#): 9.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: South Interior Year 2004
Condition

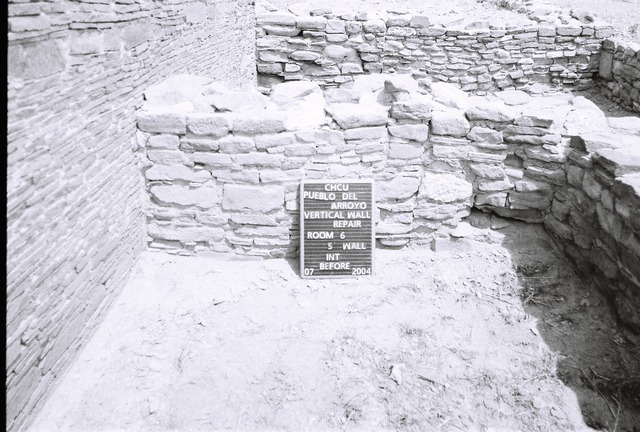

Photo type: Before 94177
Image #: 094177
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: East Interior Year 2004
Treatment

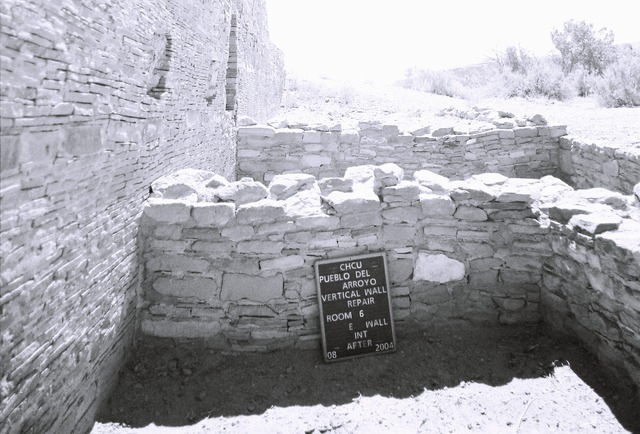

Photo type: After 94259
Image #: 094259
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 7.0
Masonry: 5.0
Stone replaced (#): 5.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: East Interior Year 2004
Condition

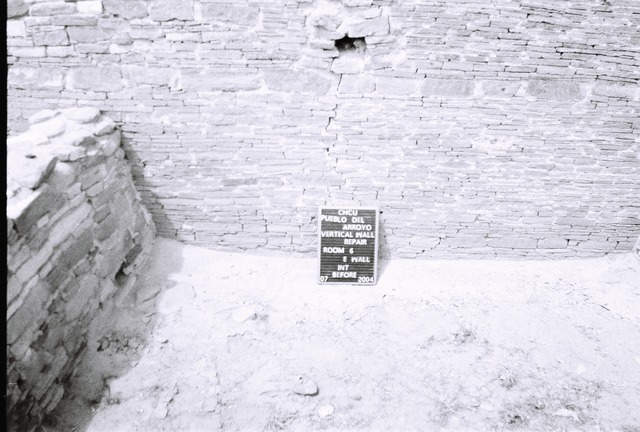

Photo type: Before 94176
Image #: 094176
Catalog #:        Accession #: 806
Condition:
Stone Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: North Interior Year 2004
Treatment

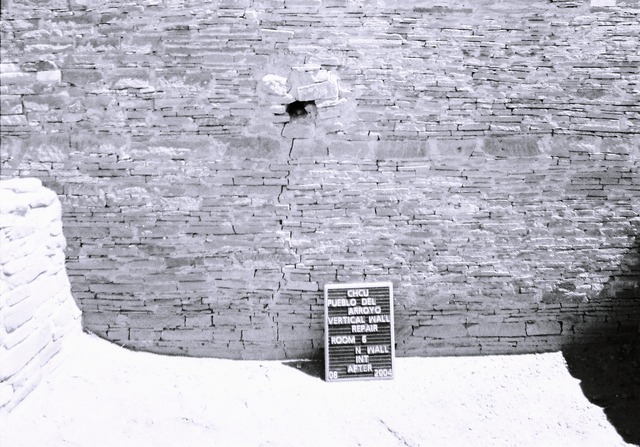

Photo type: After 94258
Image #: 094258
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 5.0
Masonry: 4.0
Stone replaced (#): 9.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Story: 1st Story Wall: North Interior Year 2004
Condition

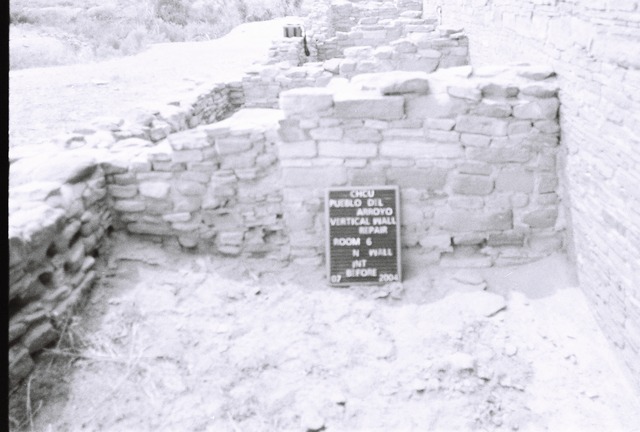

Photo type: Before 94178
Image #: 094178
Catalog #:        Accession #: 806
Condition:
Note:
     Original db Condition: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Year 2004
Backfill
Start: 3/8/2004 End: 3/8/2004 Person days:
Comments:
Specific Information
Cubic yards of fill: 10.0
Backfill source type:
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note: no drains, no basins, no wood. Comment on diagram: "rthis room doesnt have a drain"

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Wall: Year 2004
Backfill

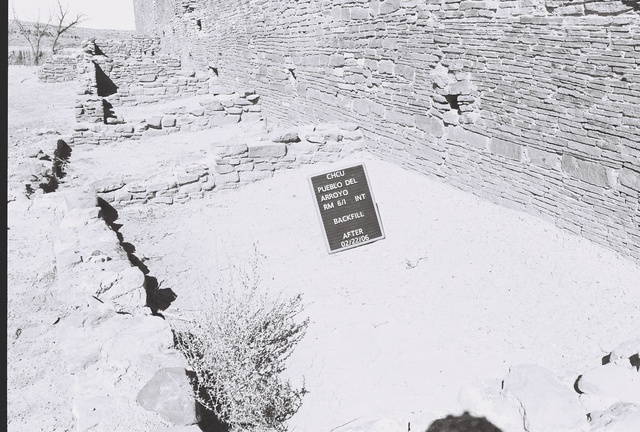

Photo type: After Backfill 82618
Image #: 082618
Catalog #:        Accession #: 806







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 6 Wall: Year 2004
Backfill

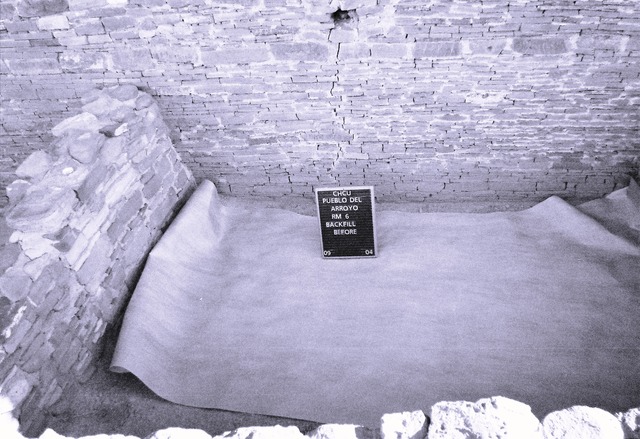

Photo type: Before Backfill 94287
Image #: 094287
Catalog #:        Accession #:
