Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 4/8/2004 End: 5/8/2004 Person Days: 1.5

Overall Comments: stiff/dry as well as soft/wetter mortar... written with backfill diagram "this room doesnt have drain"

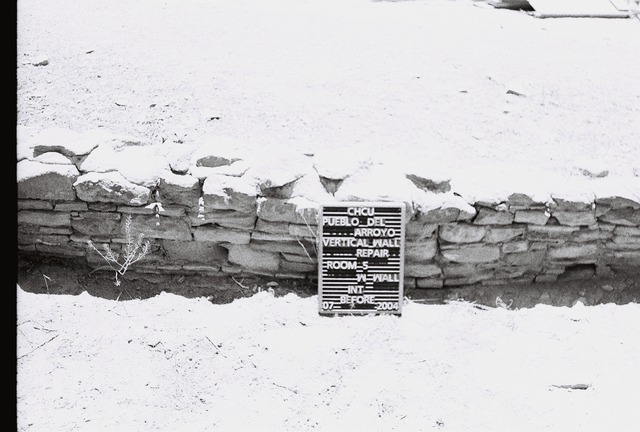

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: West Interior Year 2004
Condition
Photo type: Before 94009
Image #: 094009
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: West Interior Year 2004
Treatment

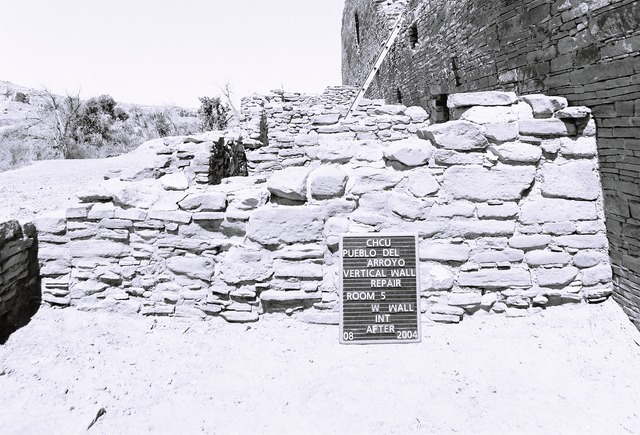

Photo type: After 94254
Image #: 094254
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 9.0
Stone replaced (#): 11.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: West Interior Year 2004
Condition

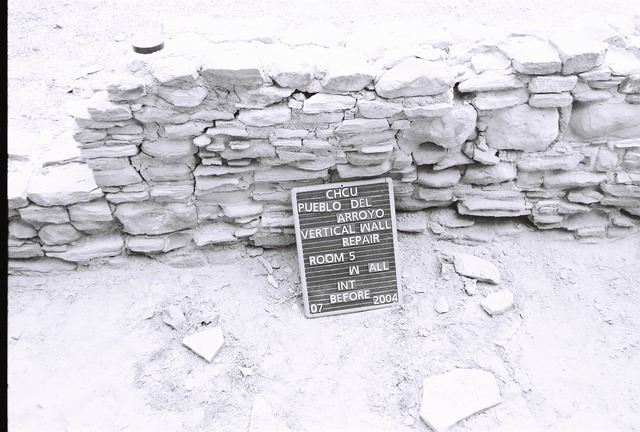

Photo type: Before 94173
Image #: 094173
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor

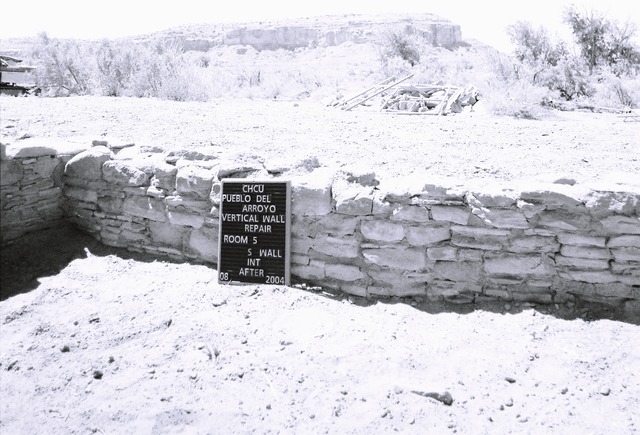

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 94255
Image #: 094255
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 8.0
Stone replaced (#): 2.0
Mortar (# buckets): 0.5

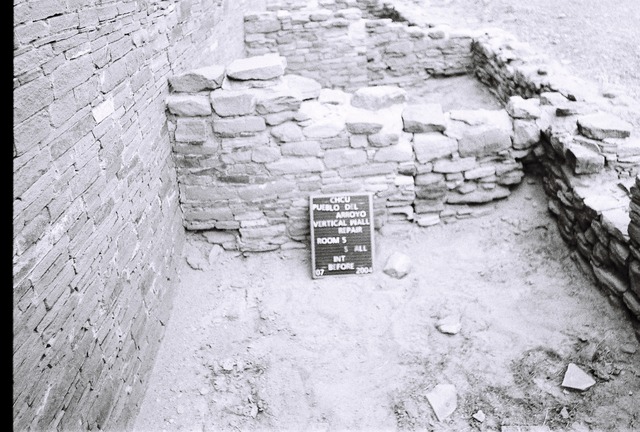

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: South Interior Year 2004
Condition
Photo type: Before 94174
Image #: 094174
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Stone Erosion: Poor
Mortar Erosion: Poor

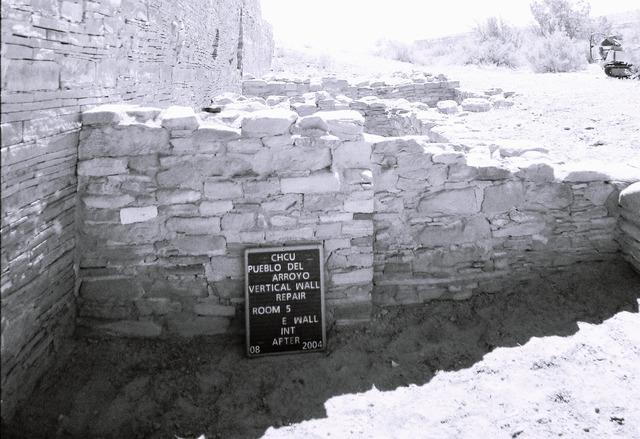

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: East Interior Year 2004
Treatment
Photo type: After 94256
Image #: 094256
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 9.0
Stone replaced (#): 9.0
Mortar (# buckets): 0.5

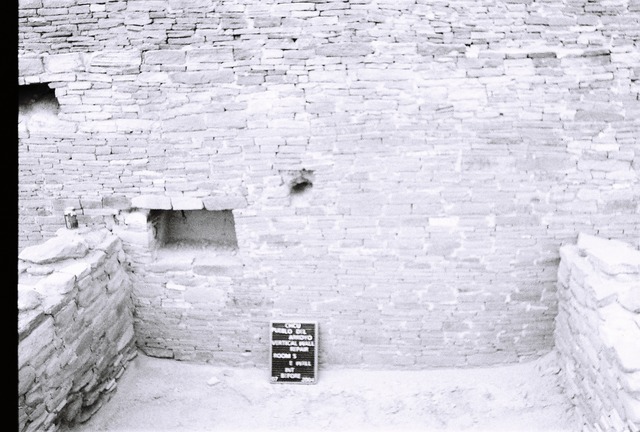

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94175
Image #: 094175
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Basal Erosion: Poor

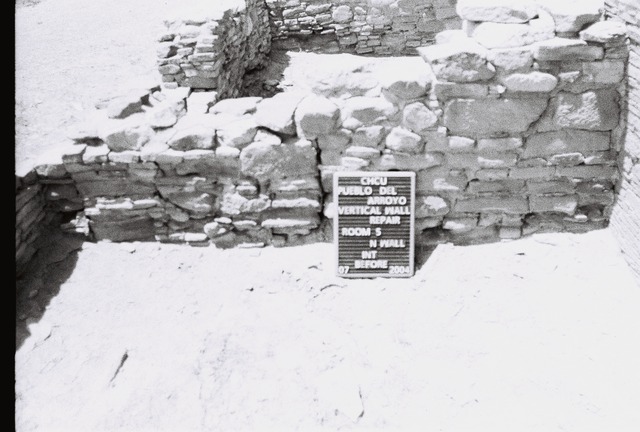

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94010
Image #: 094010
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Basal Erosion: Poor

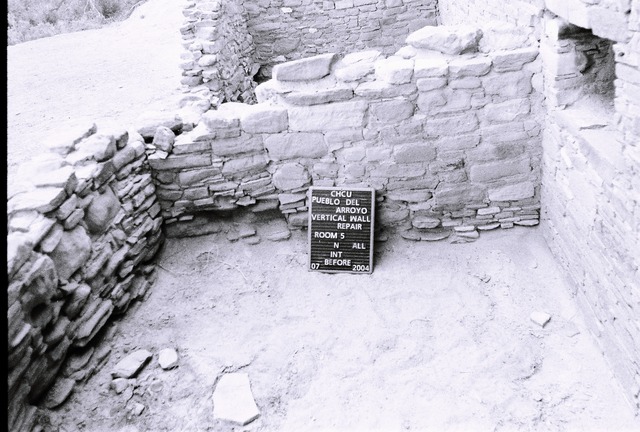

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: North Interior Year 2004
Condition
Photo type: Before 94172
Image #: 094172
Catalog #:        Accession #: 806
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Story: 1st Story Wall: North Interior Year 2004
Treatment

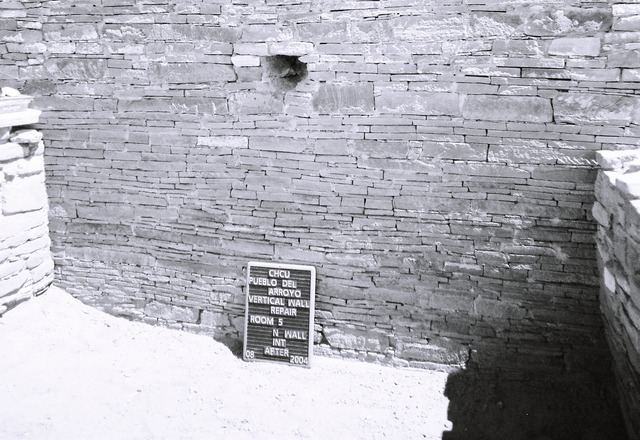

Photo type: After 94257
Image #: 094257
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Basal Wall Repair:
Repointing (sq ft): 8.0
Stone replaced (#): 6.0
Mortar (# buckets): 0.5







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Year 2004
Backfill
Start: 4/8/2004 End: 5/8/2004 Person days:
Comments: 1 After photo shows all walls
Specific Information
Cubic yards of fill: 6.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type:
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note: no drains, no basins, no wood

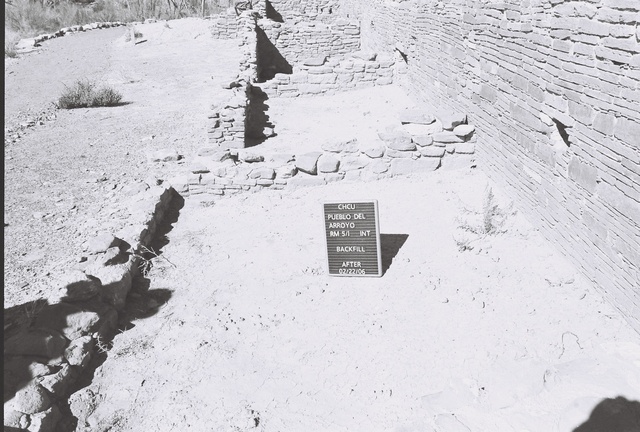

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Wall: Year 2004
Backfill
Photo type: After Backfill 82617
Image #: 082617
Catalog #:        Accession #: 806







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 5 Wall: Year 2004
Backfill

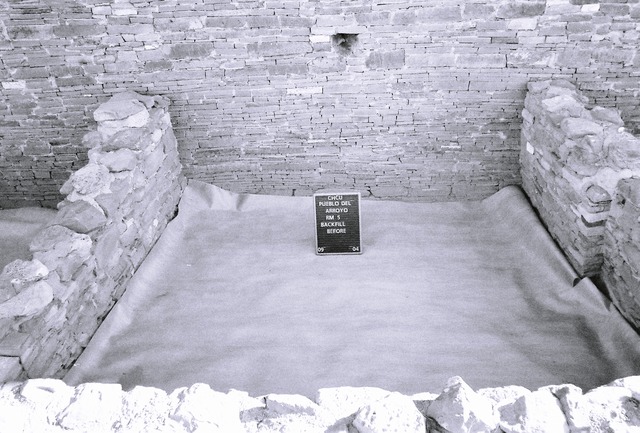

Photo type: Before Backfill 94286
Image #: 094286
Catalog #:        Accession #:
