Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Year 2004
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
3.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: Not specified/7/2004 End: Not specified/8/2004 Person Days: 2.0

Overall Comments: 1 backfill After photo; shows all walls, no before photos


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: West Interior Year 2004
Condition

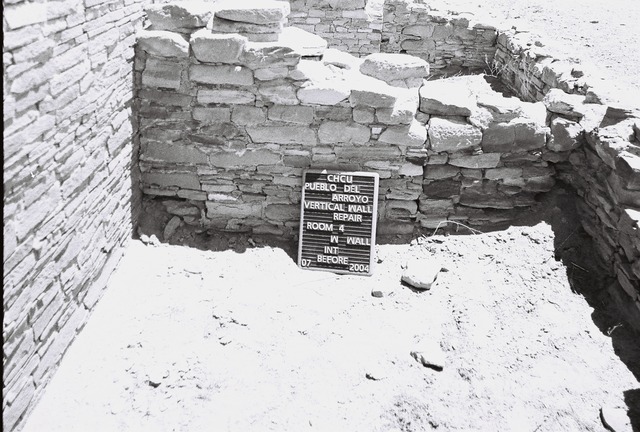

Photo type: Before 94006
Image #: 094006
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: West Interior Year 2004
Condition

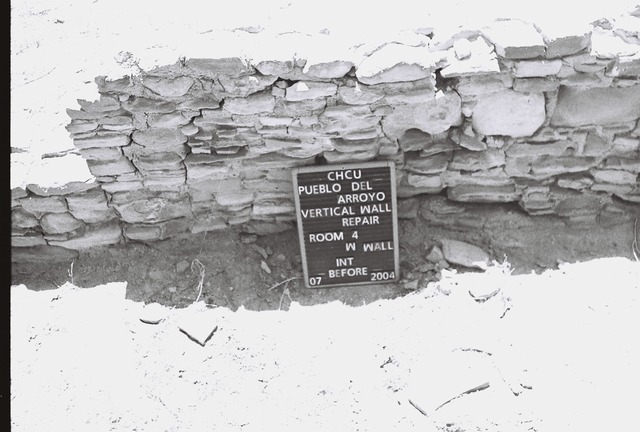

Photo type: Before 94008
Image #: 094008
Catalog #:        Accession #: 806
Condition:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: West Interior Year 2004
Treatment

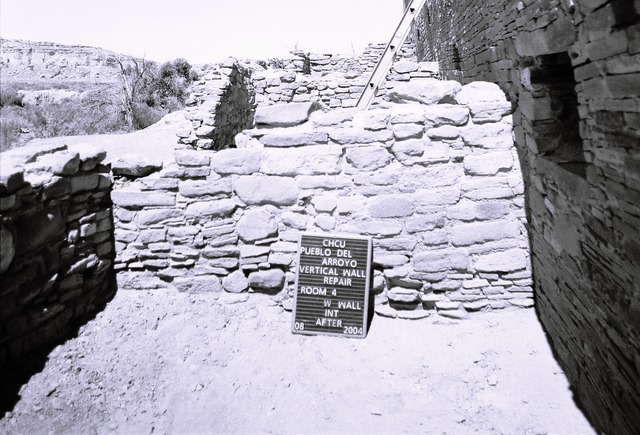

Photo type: After 94249
Image #: 094249
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 2.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: South Interior Year 2004
Treatment

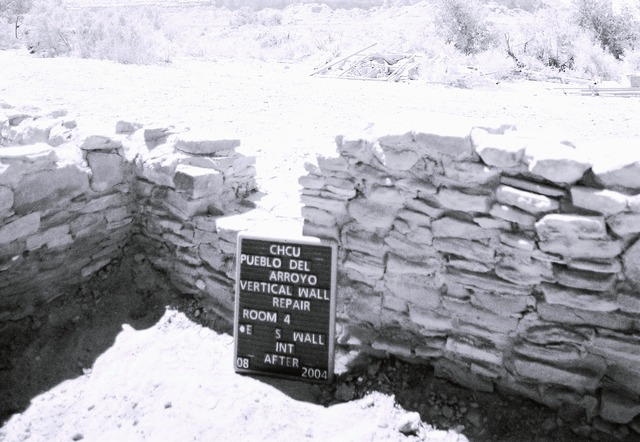

Photo type: After 94252
Image #: 094252
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Treatment comment: no treatment

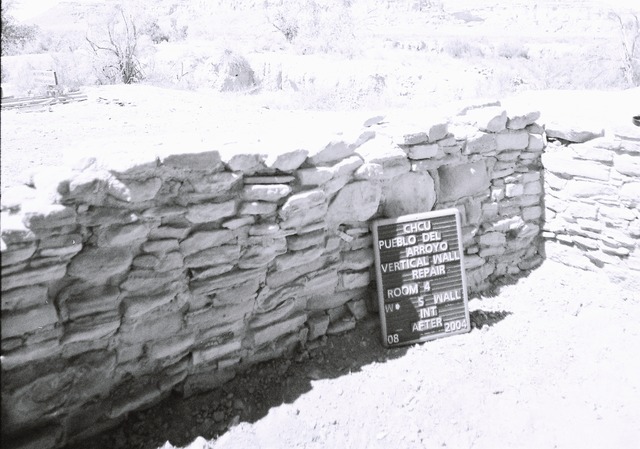

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: South Interior Year 2004
Treatment
Photo type: After 94253
Image #: 094253
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Treatment comment: no treatment







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: South Interior Year 2004
Condition
Condition:
Mortar Erosion: Poor

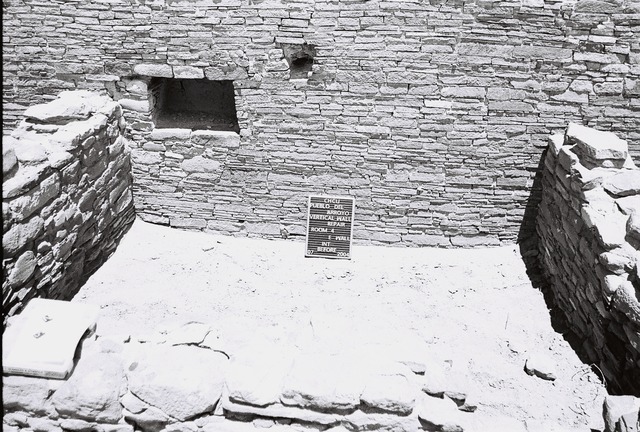

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: East Interior Year 2004
Condition
Photo type: Before 94007
Image #: 094007
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: East Interior Year 2004
Treatment

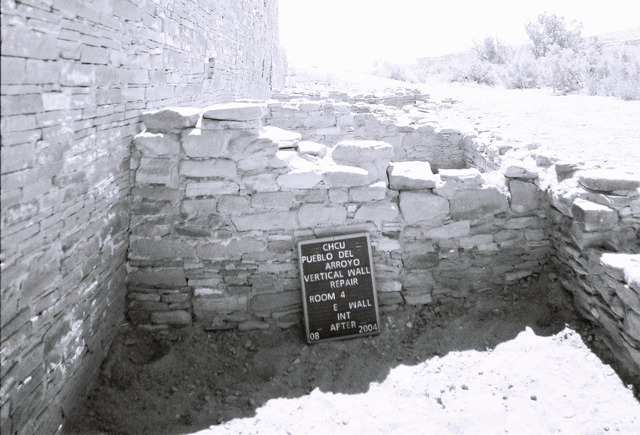

Photo type: After 94251
Image #: 094251
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 2.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: North Interior Year 2004
Condition

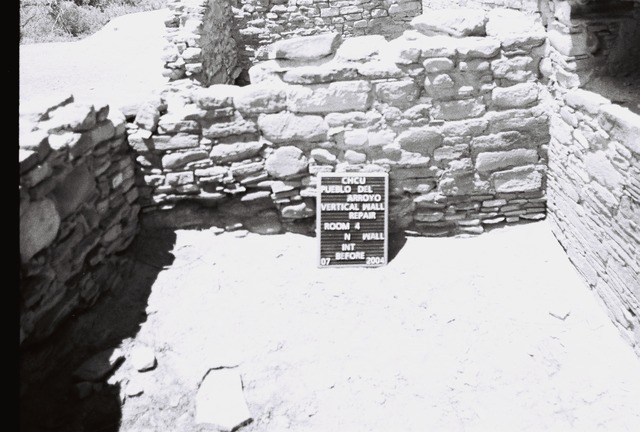

Photo type: Before 94005
Image #: 094005
Catalog #:        Accession #: 806
Condition:
Mortar Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Story: 1st Story Wall: North Interior Year 2004
Treatment

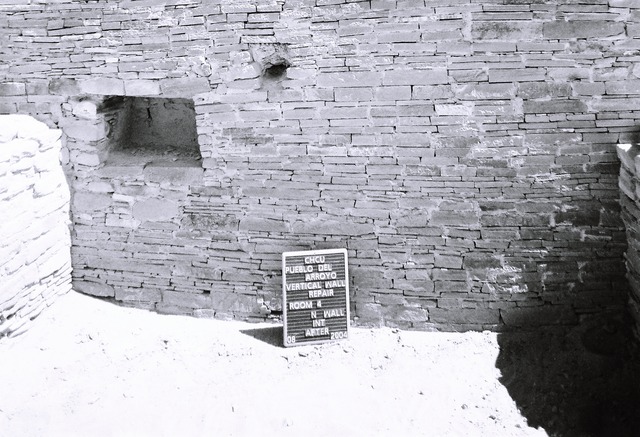

Photo type: After 94250
Image #: 094250
Catalog #:        Accession #:
Treatment:
Vertical Wall Repair:
Repointing (sq ft): 2.0
Mortar (# buckets): 1.0







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Year 2004
Backfill
Start: Not specified/Not specified/2004 End: Not specified/Not specified/2004 Person days:
Comments: limited data
Specific Information
Cubic yards of fill: 3.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note: no drains, no basins, no wood

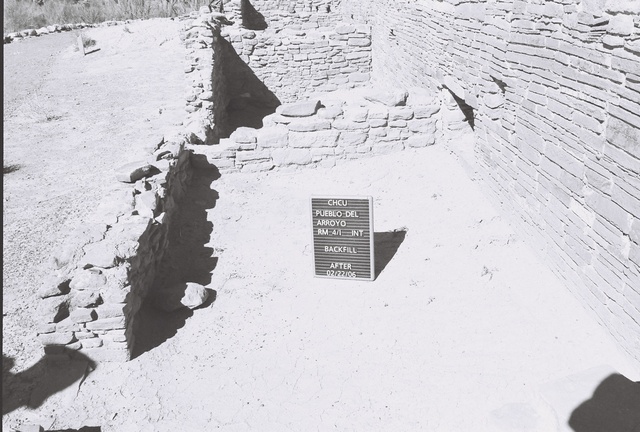

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Wall: Year 2004
Backfill
Photo type: After Backfill 82616
Image #: 082616
Catalog #:        Accession #: 806







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 4 Wall: Year 2004
Backfill

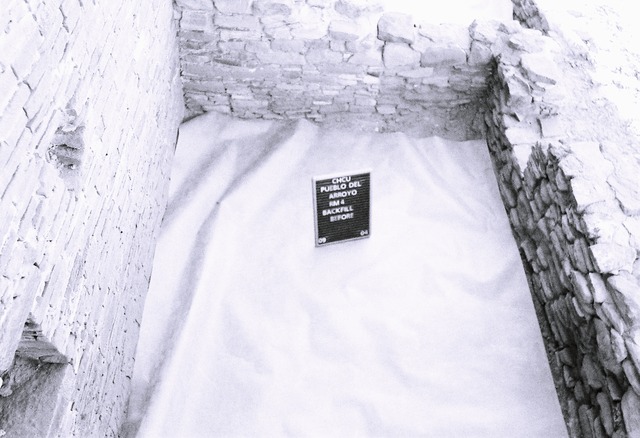

Photo type: Before Backfill 94285
Image #: 094285
Catalog #:        Accession #:
