Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 BLM quarry Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 7/4/2005 End: 14/4/2005 Person Days: 8.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: West Interior Year 2005
Condition

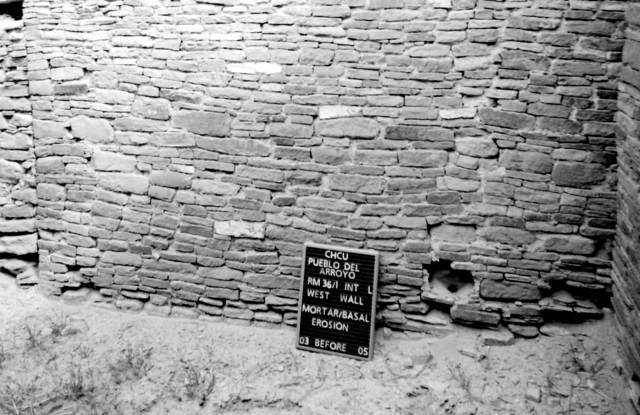

Photo type: Before 76300
Image #: 076300
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Loose or leaning or bulging masonry Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: West Interior Year 2005
Treatment

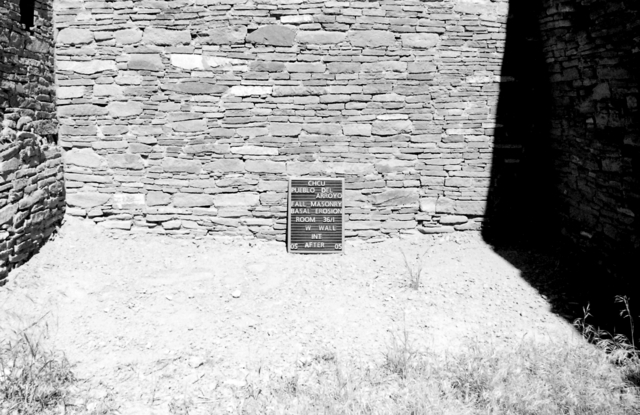

Photo type: After 76049
Image #: 076049
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 9.0
Stone replaced (#): 29.0
Mortar (# buckets): 3.0
Treatment comment: Leo Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Reset Loose, Leaning, Bulging Lintel Stones
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: South Interior Year 2005
Condition

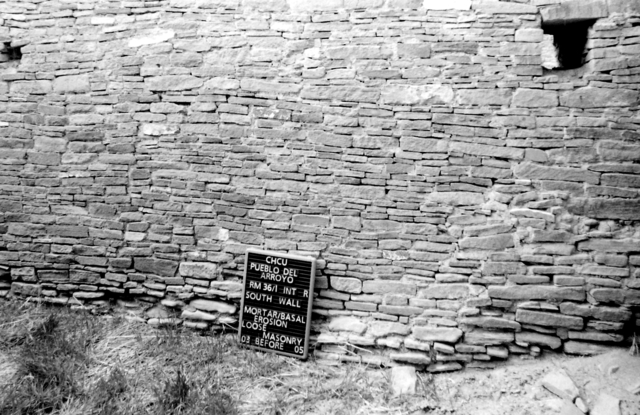

Photo type: Before 76302
Image #: 076302
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor
     Loose or leaning or bulging masonry Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: South Interior Year 2005
Condition

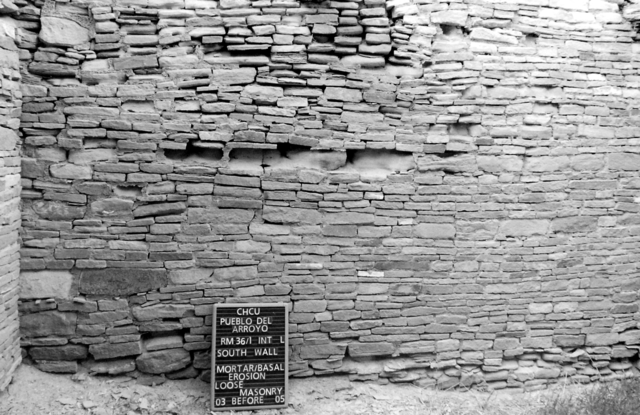

Photo type: Before 76301
Image #: 076301
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor
     Loose or leaning or bulging masonry Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: South Interior Year 2005
Treatment

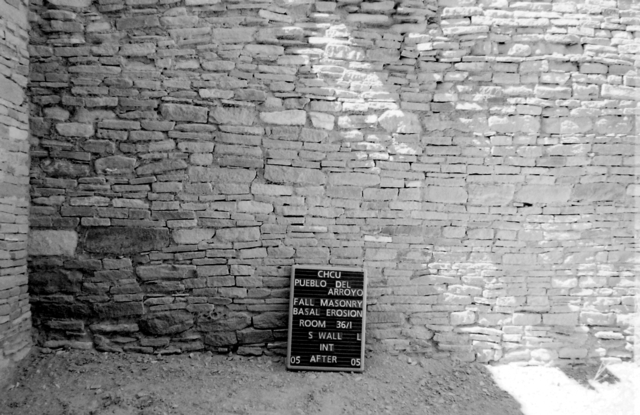

Photo type: After 76050
Image #: 076050
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 78.0
Stone replaced (#): 73.0
Mortar (# buckets): 8.0
Treatment comment: Leo Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar
     Replaced Stone(s)
     Reset Loose, Leaning, Bulging Lintel Stones
     Repaired Basal erosion (mortar/stone)

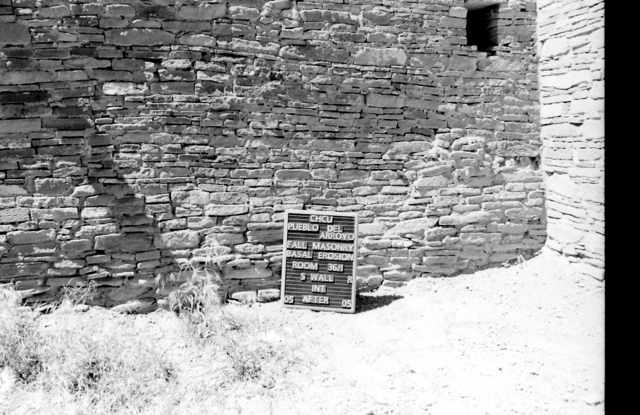

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: South Interior Year 2005
Treatment
Photo type: After 76051
Image #: 076051
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 78.0
Stone replaced (#): 73.0
Mortar (# buckets): 8.0
Treatment comment: Leo Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar
     Replaced Stone(s)
     Reset Loose, Leaning, Bulging Lintel Stones
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: East Interior Year 2005
Documentation
Photo type: Documentation, No Treatment 76299
Image #: 076299
Catalog #: 85208        Accession #: 801
Documentation:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76071
Image #: 076071
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: North Interior Year 2005
Condition

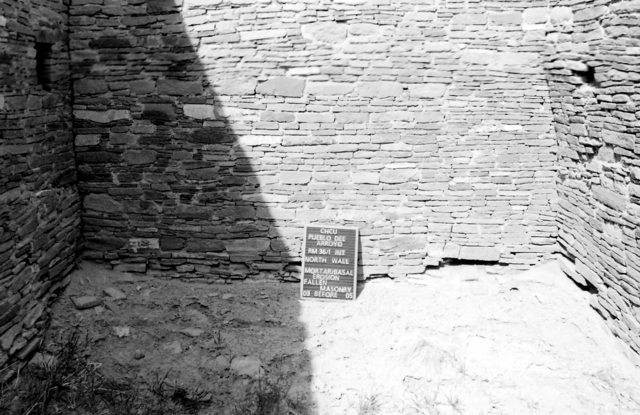

Photo type: Before 76303
Image #: 076303
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Story: 1st Story Wall: North Interior Year 2005
Treatment

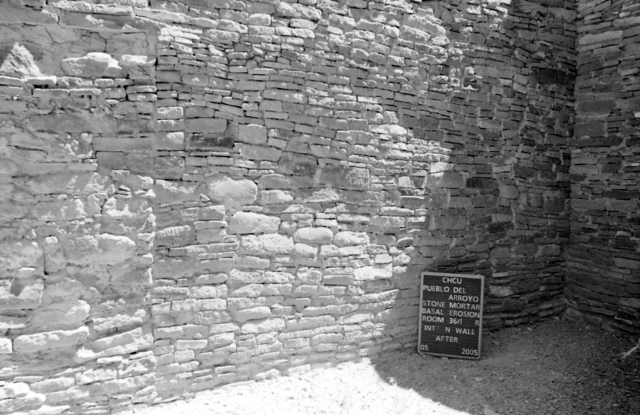

Photo type: After 76072
Image #: 076072
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 52.0
Stone replaced (#): 58.0
Mortar (# buckets): 7.0
Treatment comment: Leo Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Stone(s)
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Year 2005
Backfill
Start: 18/7/2005 End: 20/7/2005 Person days: 3
Comments:
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 6 45: 22: Other: Other type:
Drain pipe length: 20 feet      Drain pipe diameter: 6 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through: Doorway      Other:
Drain pipe leaves goes to: room 37
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note: doorway 1-sealed N wall, 1-dry wall E wall

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill
Photo type: Before Backfill 76072
Image #: 076072
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill
Photo type: Before Backfill 76051
Image #: 076051
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill
Photo type: Before Backfill 76049
Image #: 076049
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

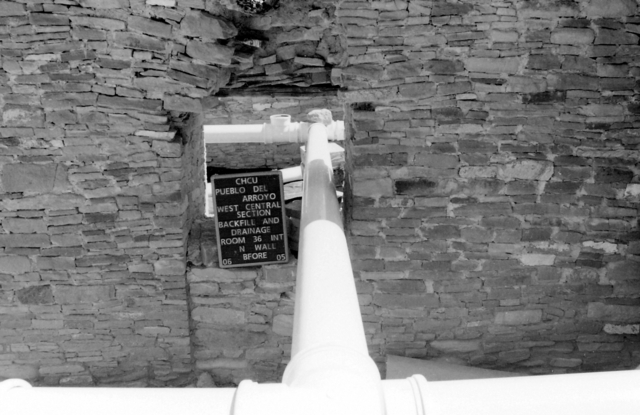

Photo type: During Backfill 76190
Image #: 076190
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

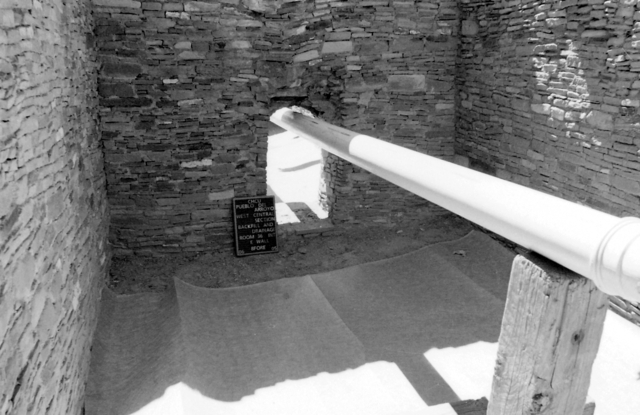

Photo type: During Backfill 76149
Image #: 076149
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

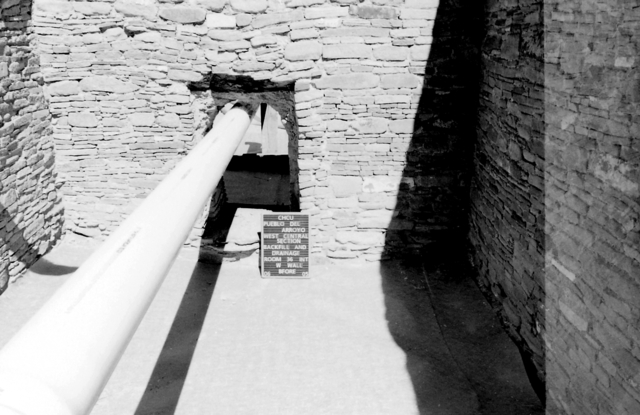

Photo type: During Backfill 76191
Image #: 076191
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

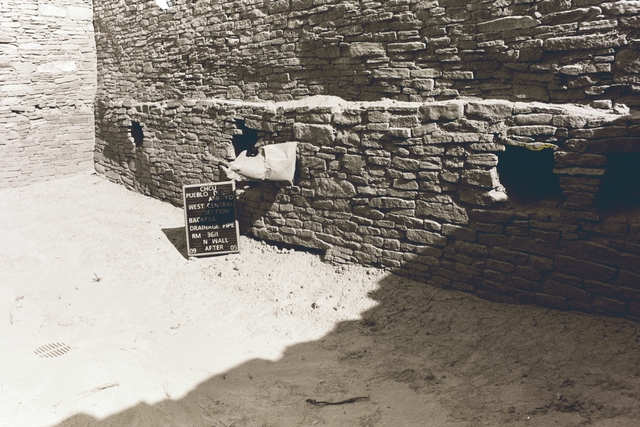

Photo type: After Backfill 76562
Image #: 076562
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

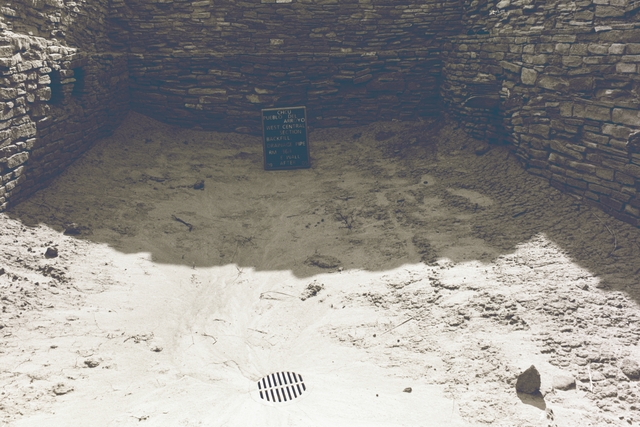

Photo type: After Backfill 76563
Image #: 076563
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

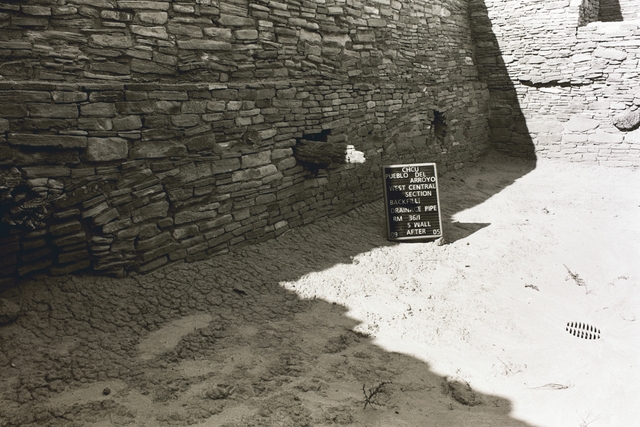

Photo type: After Backfill 76564
Image #: 076564
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 36 Wall: Year 2005
Backfill

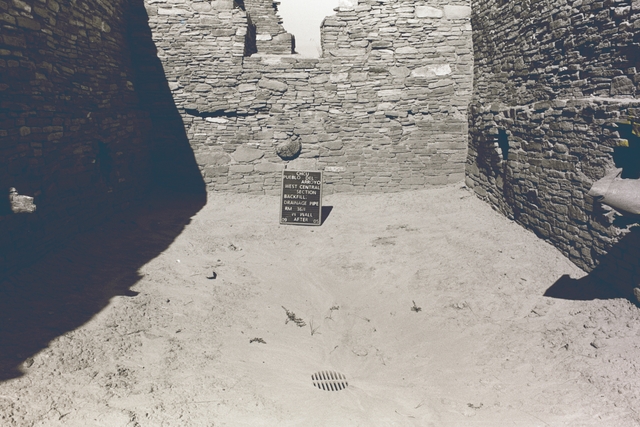

Photo type: After Backfill 76565
Image #: 076565
Catalog #:        Accession #: 801
