Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: SW Quad, NE Quad, SE Quad, West
Start: 27/4/2005 End: 12/5/2005 Person Days: 10.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: SW Quad Interior Year 2005
Condition

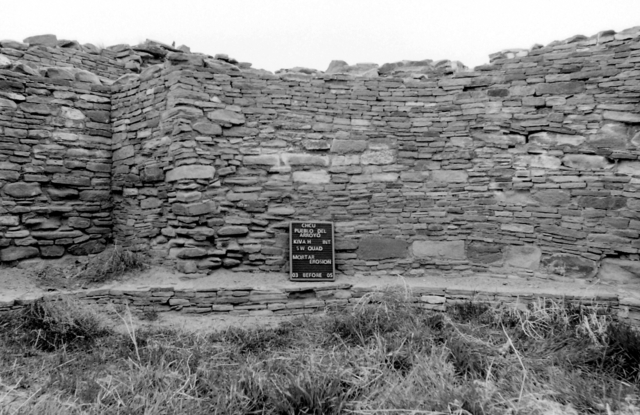

Photo type: Before 76326
Image #: 076326
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: SW Quad Interior Year 2005
Treatment

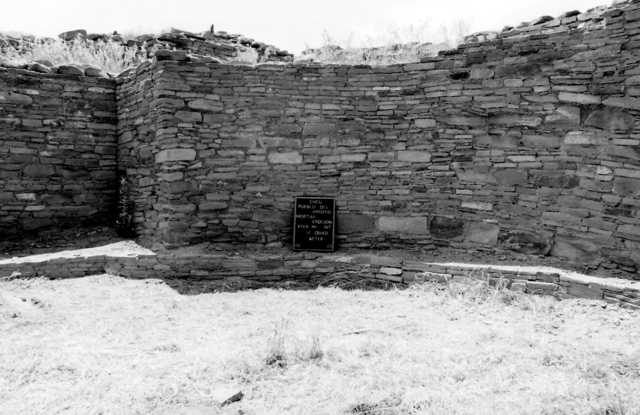

Photo type: After 76166
Image #: 076166
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 4.0
Masonry: 45.0
Mortar (# buckets): 3.5
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: NE Quad Interior Year 2005
Condition

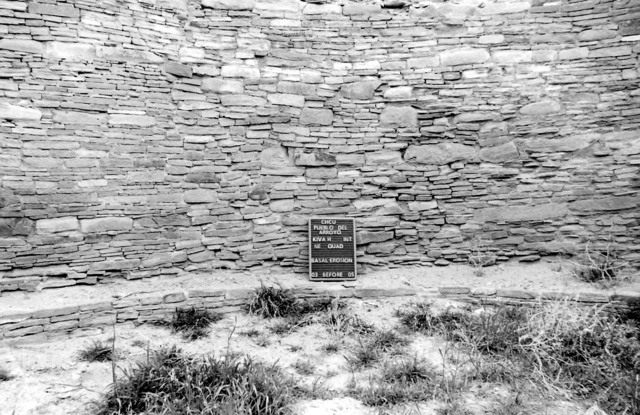

Photo type: Before 76324
Image #: 076324
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: NE Quad Interior Year 2005
Treatment

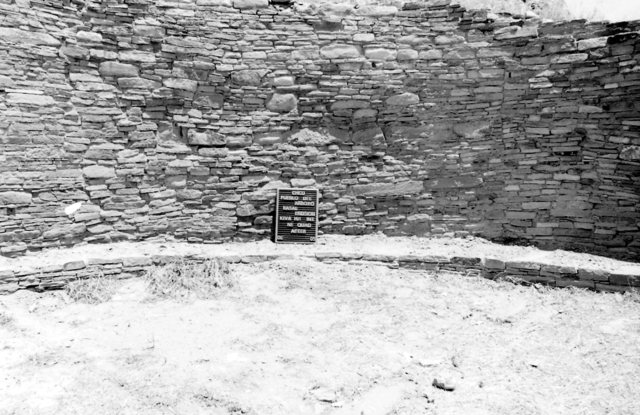

Photo type: After 76164
Image #: 076164
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 3.5
Stone fresh: 12.0
Mortar (# buckets): 2.5
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: SE Quad Interior Year 2005
Condition

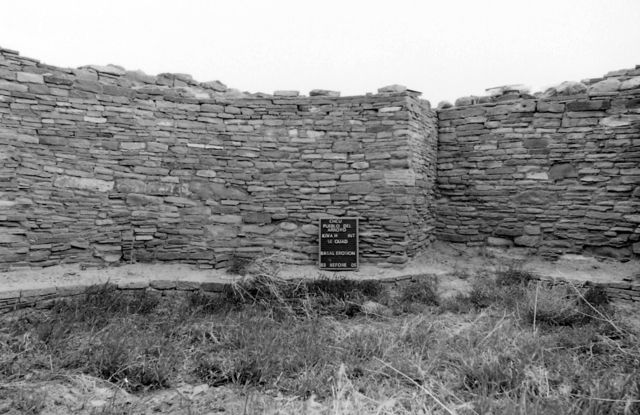

Photo type: Before 76325
Image #: 076325
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: SE Quad Interior Year 2005
Treatment

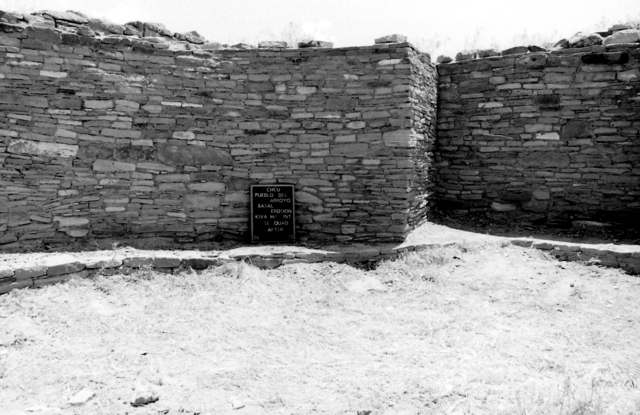

Photo type: After 76165
Image #: 076165
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 7.0
Stone fresh: 7.0
Mortar (# buckets): 1.0
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: West Exterior Year 2005
Condition

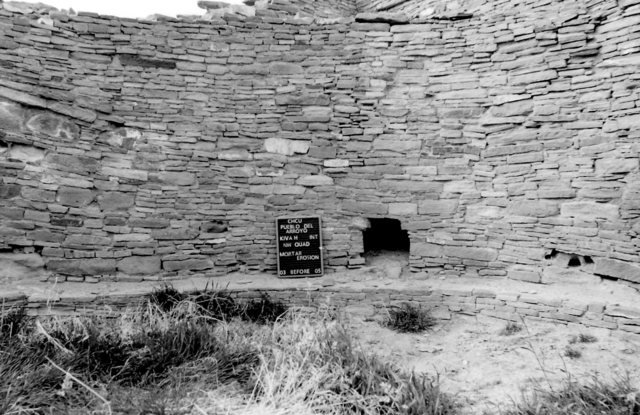

Photo type: Before 76327
Image #: 076327
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Story: 1st Story Wall: West Exterior Year 2005
Treatment

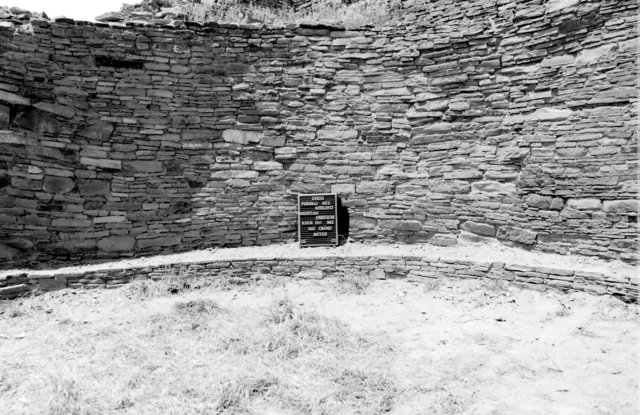

Photo type: After 76167
Image #: 076167
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 6.0
Masonry: 2.0
Mortar (# buckets): 0.5
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Year 2005
Backfill
Start: 29/8/2005 End: 29/8/2005 Person days: 1
Comments:
Specific Information
Cubic yards of fill: 8.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: 0.0 gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

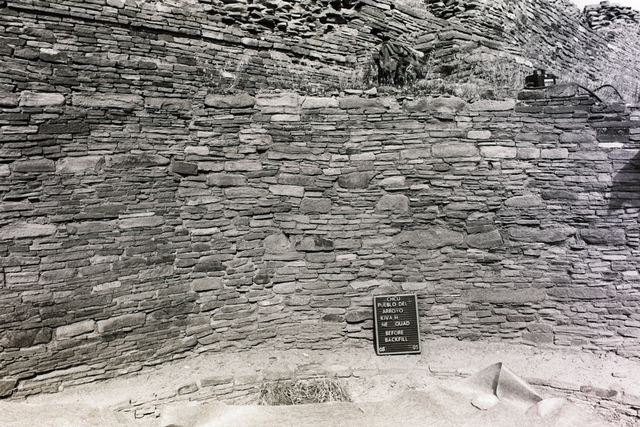

Photo type: Before Backfill 76653
Image #: 076653
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

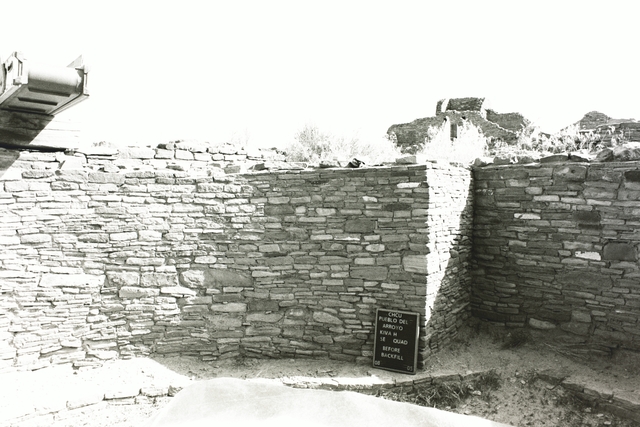

Photo type: Before Backfill 76652
Image #: 076652
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

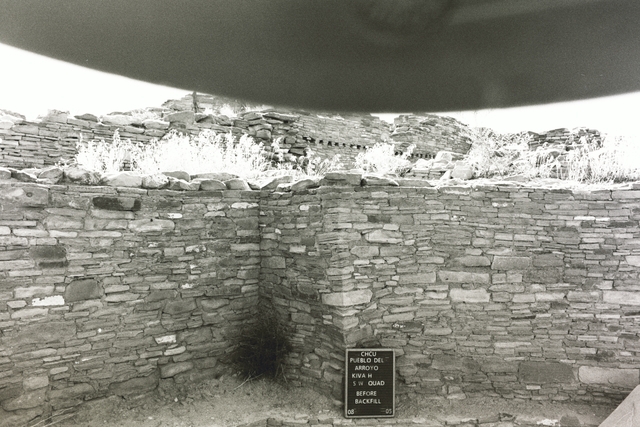

Photo type: Before Backfill 76651
Image #: 076651
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

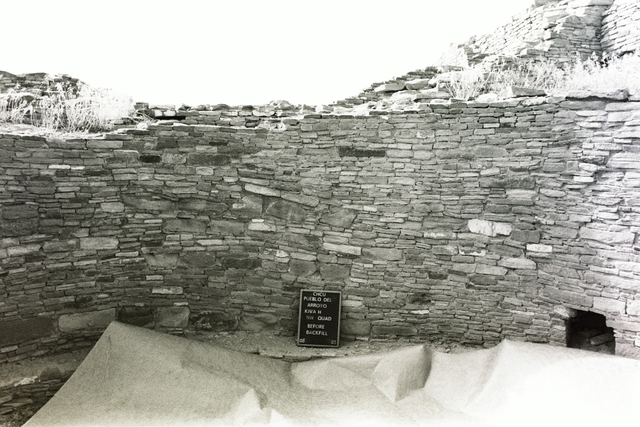

Photo type: Before Backfill 76650
Image #: 076650
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

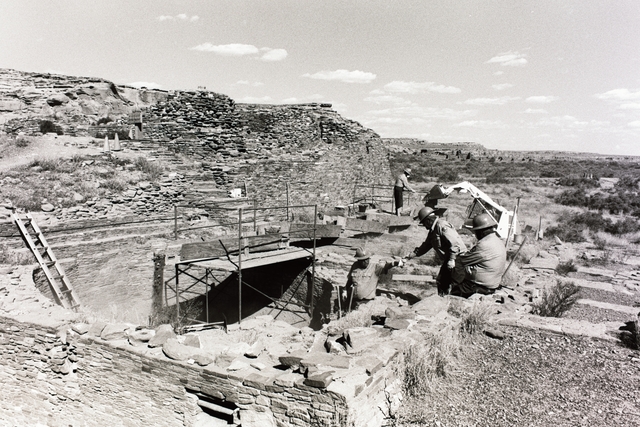

Photo type: During Backfill 76667
Image #: 076667
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

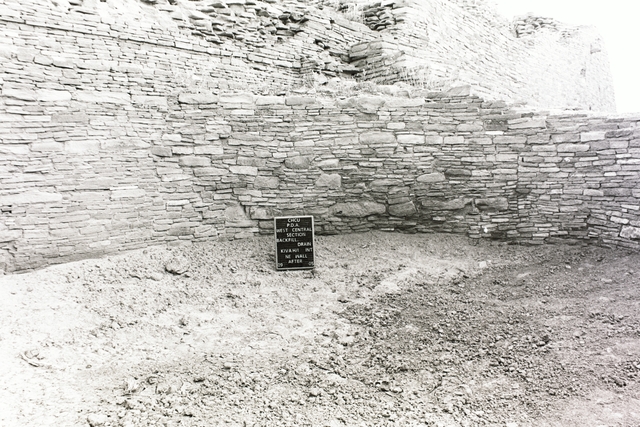

Photo type: After Backfill 76611
Image #: 076611
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

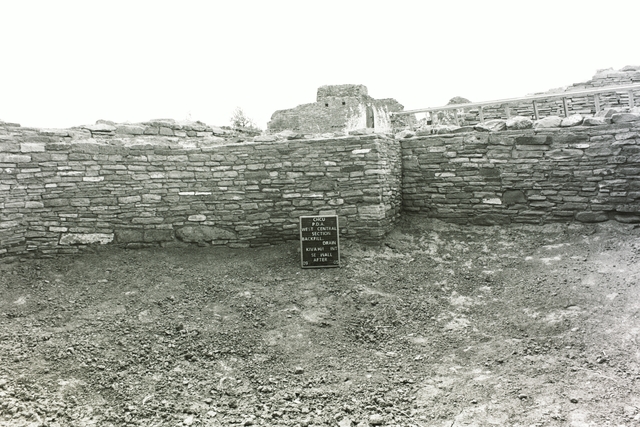

Photo type: After Backfill 76612
Image #: 076612
Catalog #:        Accession #: 801

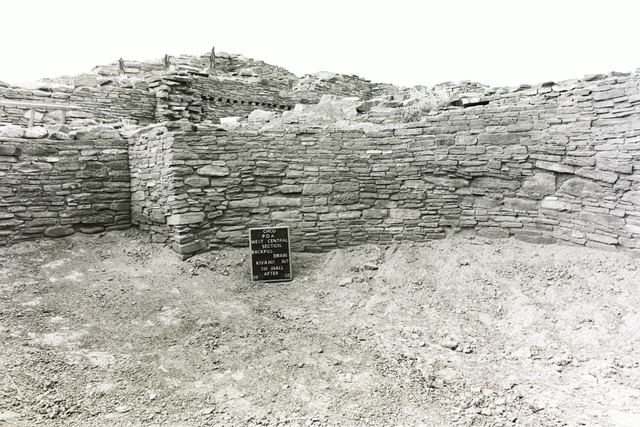

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill
Photo type: After Backfill 76613
Image #: 076613
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva H Wall: Year 2005
Backfill

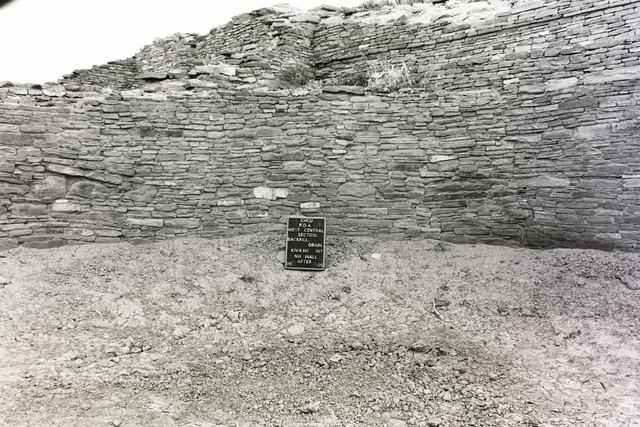

Photo type: After Backfill 76614
Image #: 076614
Catalog #:        Accession #: 801
