Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East
Start: End: Person Days:

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: West Interior Year 2005
Condition

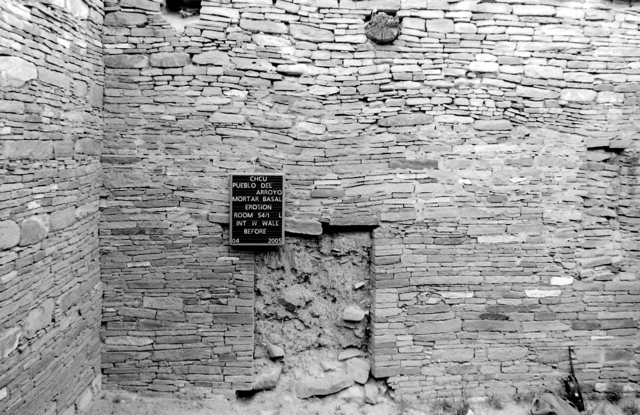

Photo type: Before 76056
Image #: 076056
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Mortar Erosion Poor

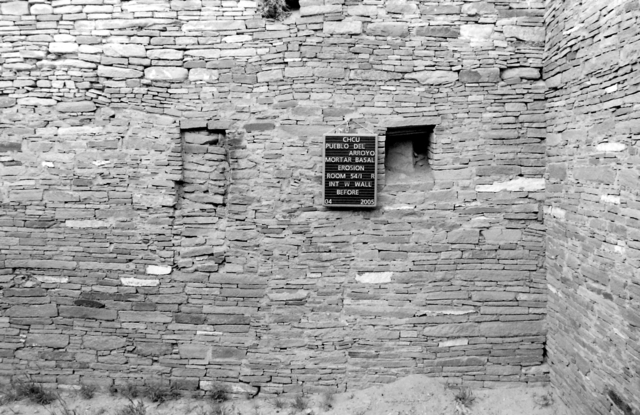

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: West Interior Year 2005
Condition
Photo type: Before 76057
Image #: 076057
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: South Interior Year 2005
Condition

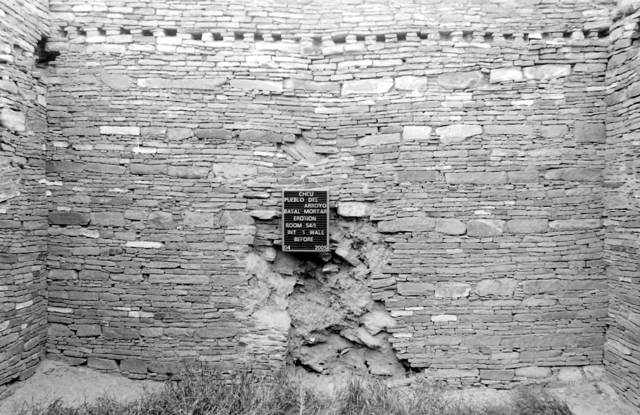

Photo type: Before 76054
Image #: 076054
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor

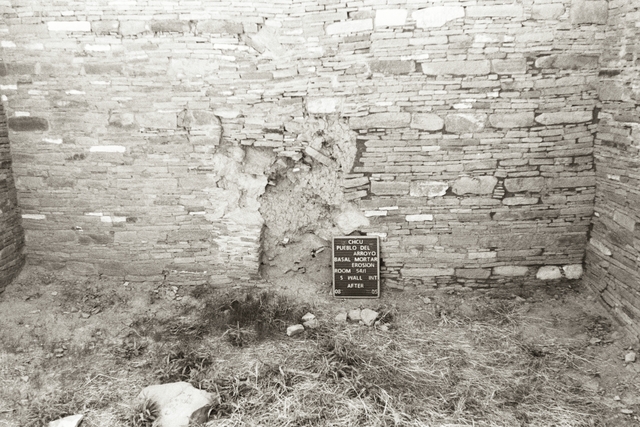

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: South Interior Year 2005
Treatment
Photo type: After 76680
Image #: 076680
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 20.0
Stone replaced (#): 10.0
Mortar (# buckets): 7.0
Other Treatment:
     Repaired Basal erosion (mortar/stone)

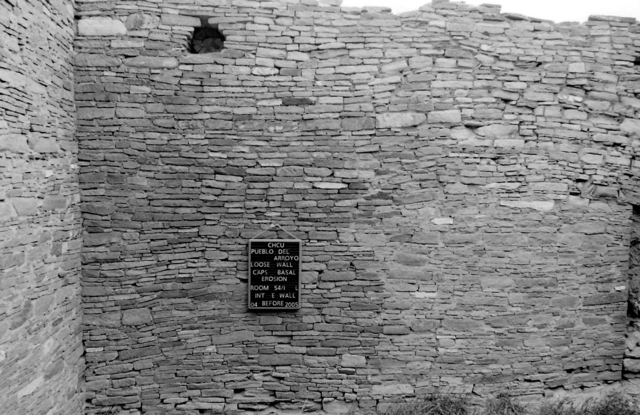

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: East Interior Year 2005
Condition
Photo type: Before 76052
Image #: 076052
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Loose and cracked Wall Caps Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: East Interior Year 2005
Condition

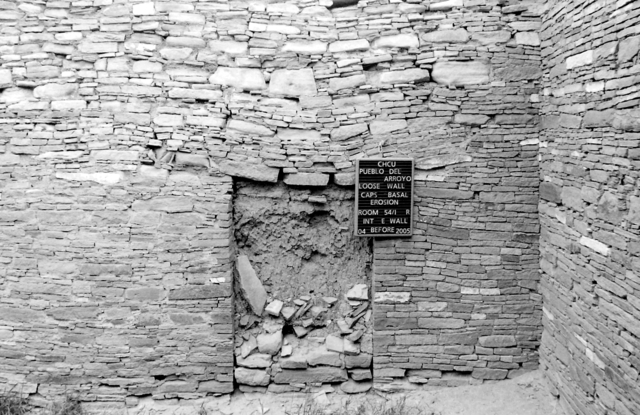

Photo type: Before 76053
Image #: 076053
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Loose and cracked Wall Caps Poor

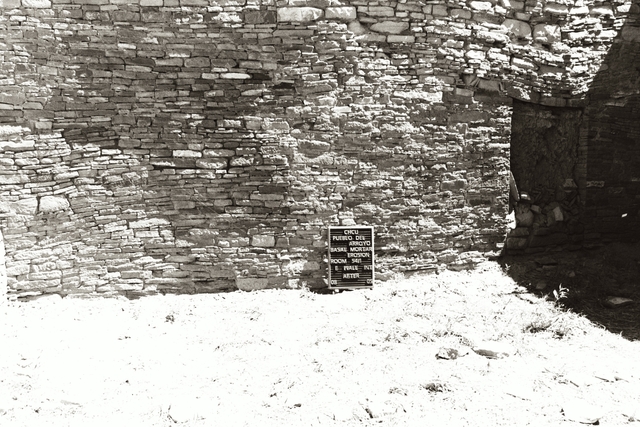

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Story: 1st Story Wall: East Interior Year 2005
Treatment
Photo type: After 76679
Image #: 076679
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 10.0
Stone replaced (#): 5.0
Capping: 7.0
Mortar (# buckets): 3.0
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Repaired loose and cracked wall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Year 2005
Backfill
Start: 31/8/2005 End: 7/9/2005 Person days: 6
Comments:
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 1 45: 22: Other: Other type:
Drain pipe length: 7 feet      Drain pipe diameter: 4 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to: room 51
Evaporative Basins
Basin installed
Height above geotextile: 1.0
Basin size: 12"
Capacity: 45.0 gallons
Wood
Number of pieces buried: none
Note:

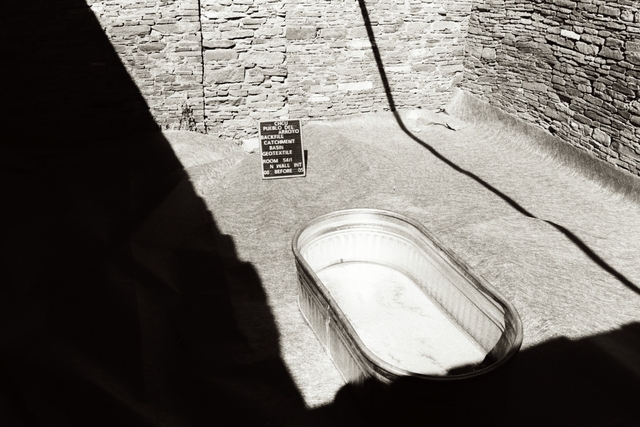

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill
Photo type: Before Backfill 76683
Image #: 076683
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill

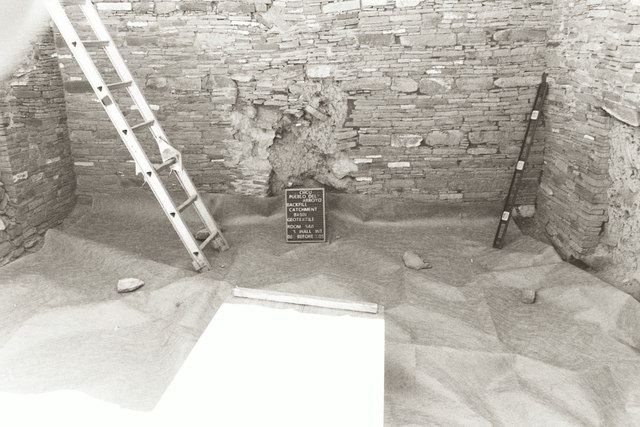

Photo type: Before Backfill 76684
Image #: 076684
Catalog #:        Accession #: 801

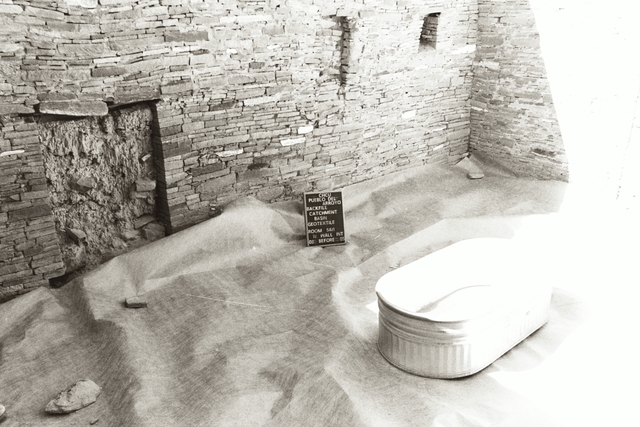

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill
Photo type: Before Backfill 76682
Image #: 076682
Catalog #:        Accession #: 801

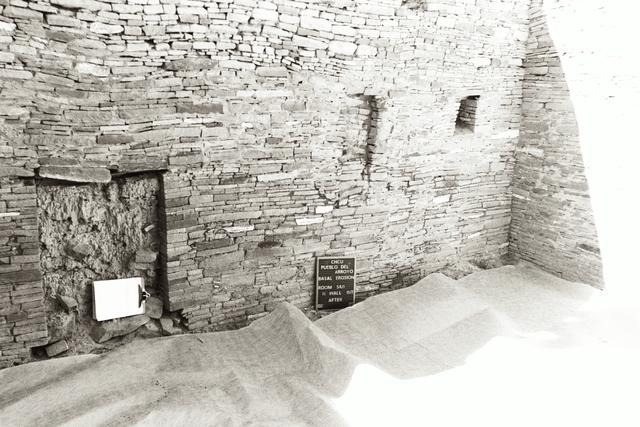

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill
Photo type: During Backfill 76681
Image #: 076681
Catalog #:        Accession #: 801

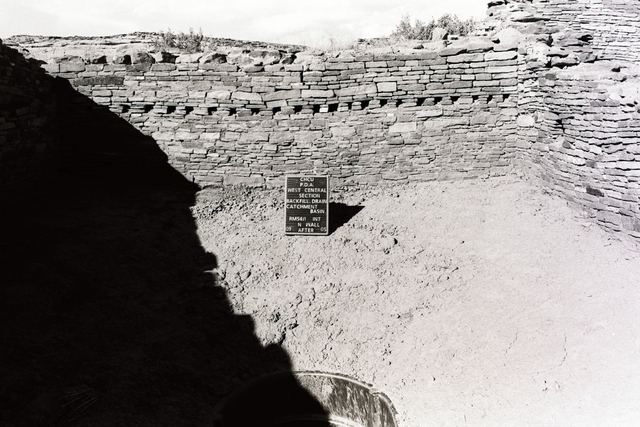

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill
Photo type: After Backfill 76599
Image #: 076599
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill

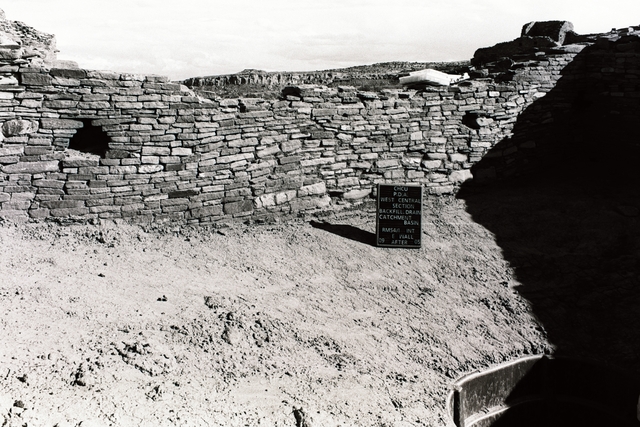

Photo type: After Backfill 76600
Image #: 076600
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill

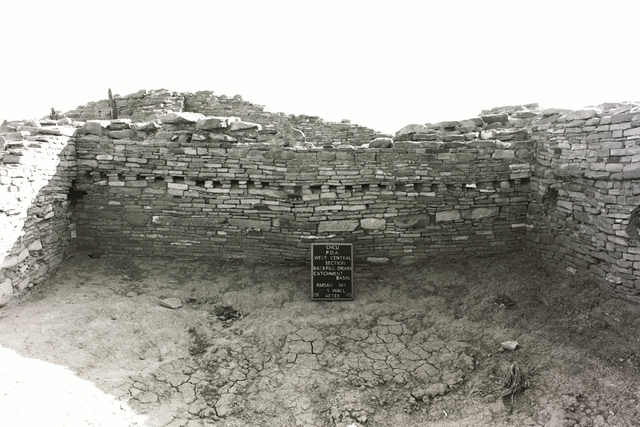

Photo type: After Backfill 76601
Image #: 076601
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 54 Wall: Year 2005
Backfill

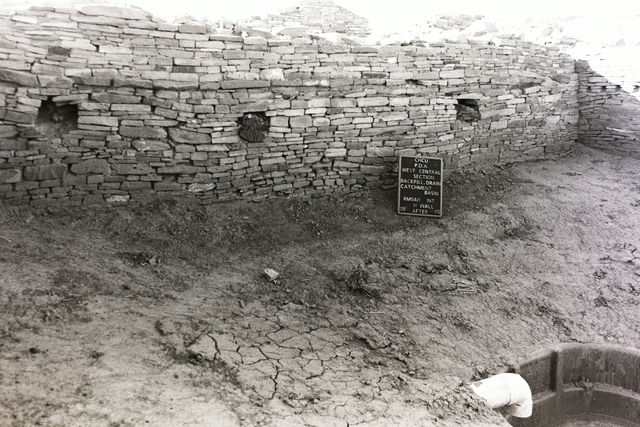

Photo type: After Backfill 76602
Image #: 076602
Catalog #:        Accession #: 801
