Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
4.0 Dirt Cans Cups of color
2.0 Sand Describe Color: Matches darker stone in wall.
Clay Duraweld-C (1:4)
1.0 Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: South, North
Start: 30/3/2005 End: 20/4/2005 Person Days: 9.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: South Interior Year 2005
Condition

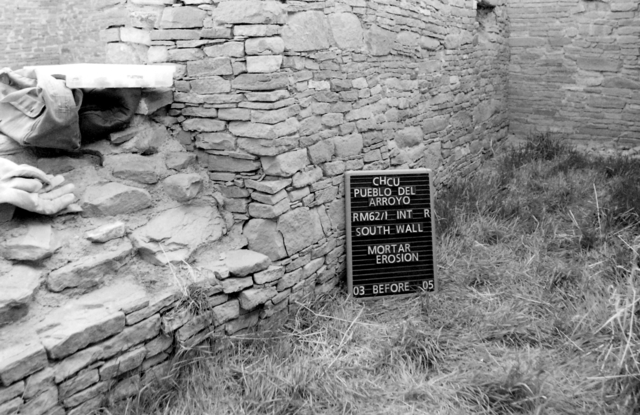

Photo type: Before 76350
Image #: 076350
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Other Conditions:
     Eroded Stone(s) Poor
     Loose and cracked Wall Caps Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: South Interior Year 2005
Condition

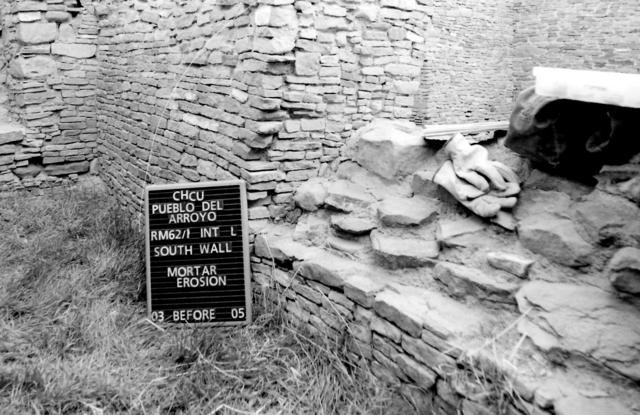

Photo type: Before 76349
Image #: 076349
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Other Conditions:
     Eroded Stone(s) Poor
     Loose and cracked Wall Caps Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: South Interior Year 2005
Treatment

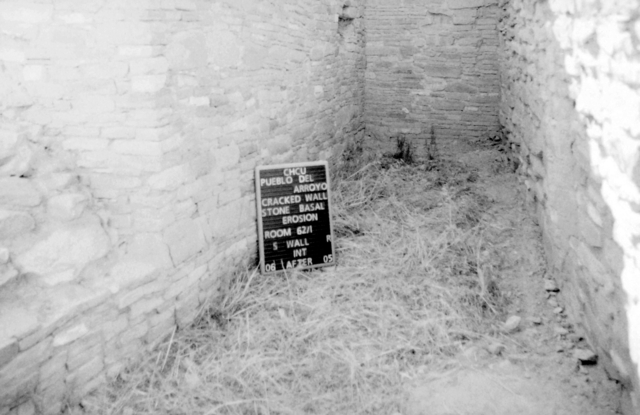

Photo type: After 76194
Image #: 076194
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 36.0
Stone replaced (#): 17.0
Mortar (# buckets): 2.0
Treatment comment: James Yazzie worked in this room.
Other Treatment:
     Replaced Mortar
     Replaced Stone(s)
     Repaired loose and cracked wall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: South Interior Year 2005
Treatment

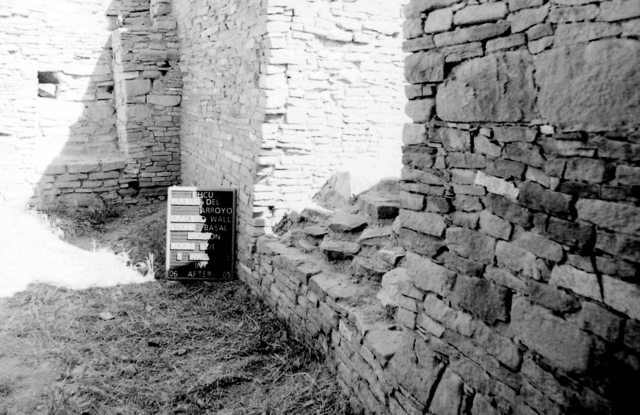

Photo type: After 76193
Image #: 076193
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 36.0
Stone replaced (#): 17.0
Mortar (# buckets): 2.0
Treatment comment: James Yazzie worked in this room.
Other Treatment:
     Replaced Mortar
     Replaced Stone(s)
     Repaired loose and cracked wall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76347
Image #: 076347
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Loose and cracked Wall Caps Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: North Interior Year 2005
Condition

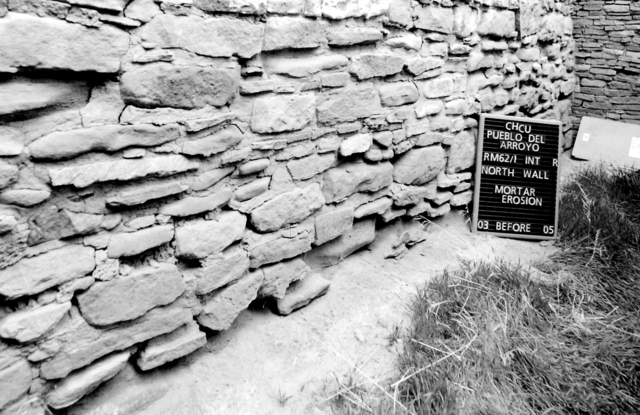

Photo type: Before 76348
Image #: 076348
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Loose and cracked Wall Caps Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: North Interior Year 2005
Treatment
Photo type:
Image #:
Catalog #:        Accession #:
Treatment:







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: North Interior Year 2005
Treatment

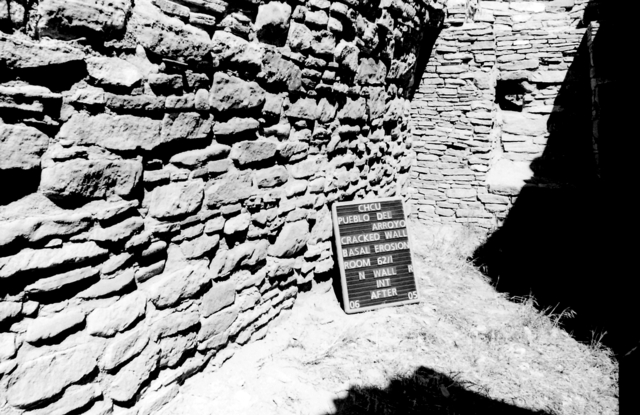

Photo type: After 76144
Image #: 076144
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 40.0
Stone replaced (#): 30.0
Capping: 10.0
Mortar (# buckets): 3.5
Treatment comment: James Yazzie worked in this room.
Other Treatment:
     Repaired loose and cracked wall
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Story: 1st Story Wall: North Interior Year 2005
Treatment

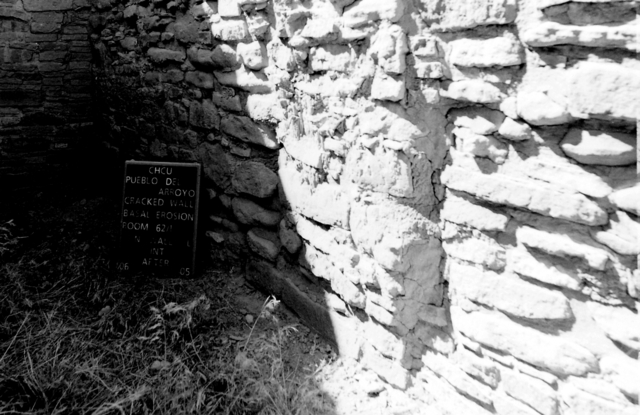

Photo type: After 76143
Image #: 076143
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 40.0
Stone replaced (#): 30.0
Capping: 10.0
Mortar (# buckets): 3.5
Treatment comment: James Yazzie worked in this room.
Other Treatment:
     Repaired loose and cracked wall
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Year 2005
Backfill
Start: 11/7/2005 End: 11/7/2005 Person days: 1
Comments: no before photos
Specific Information
Cubic yards of fill: 8.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: None
Cloth barrier other: membrane
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 1 L: Other: Other type:
Joint:
Y: 90: 1 45: 22: Other: Other type:
Drain pipe length: 11 feet      Drain pipe diameter: 6 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through: Doorway      Other:
Drain pipe leaves goes to: room 40
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Wall: Year 2005
Backfill

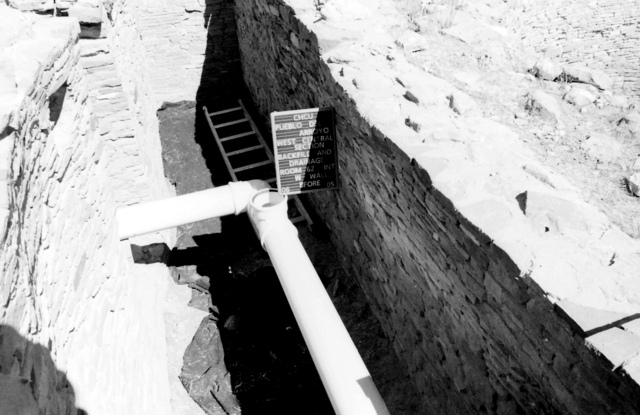

Photo type: During Backfill 76187
Image #: 076187
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Wall: Year 2005
Backfill

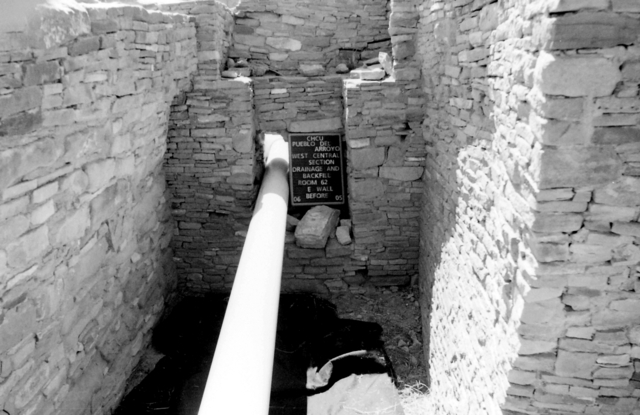

Photo type: During Backfill 76129
Image #: 076129
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Wall: Year 2005
Backfill

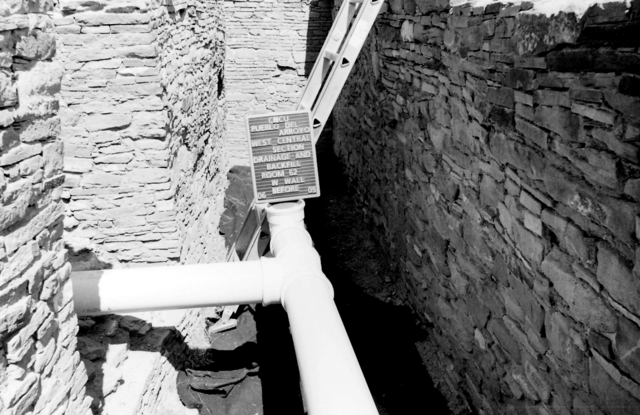

Photo type: During Backfill 76130
Image #: 076130
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Wall: Year 2005
Backfill
Photo type: After Backfill 76591
Image #: 076592
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 62 Wall: Year 2005
Backfill

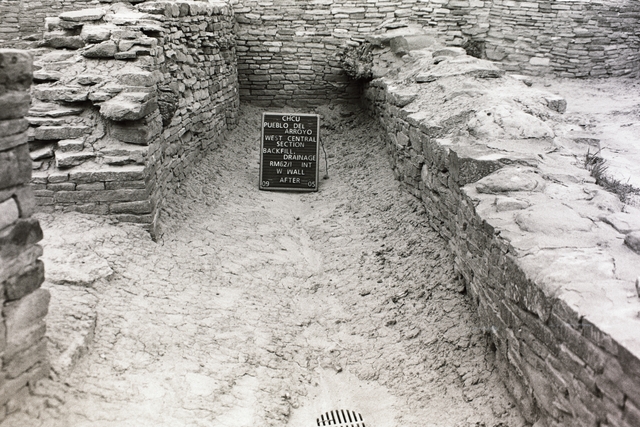

Photo type: After Backfill 76591
Image #: 076591
Catalog #:        Accession #: 801
