Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 24/3/2005 End: 6/4/2005 Person Days: 7.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: West Interior Year 2005
Treatment
Photo type: After 76141
Image #: 076141
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 7.0
Masonry: 6.0
Stone replaced (#): 20.0
Mortar (# buckets): 2.0
Treatment comment: Harold Suina, Paul Tso Sr. and Garry Joe all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Mortar
     Replaced Stone(s)
     Repaired loose and cracked wall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: West Interior Year 2005
Condition
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor
     Loose and cracked Wall Caps Poor
     Mortar Erosion Poor

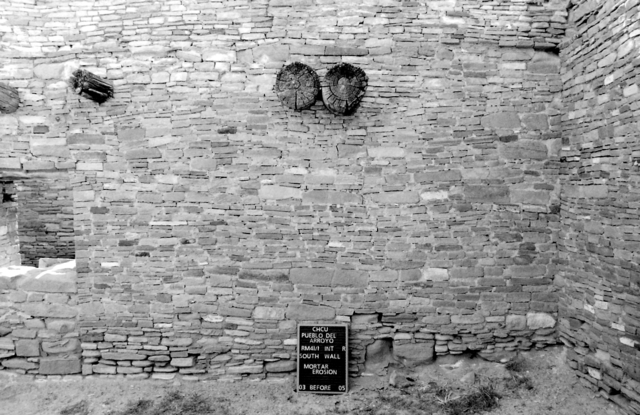

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: South Interior Year 2005
Condition
Photo type: Before 76342
Image #: 076342
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: South Interior Year 2005
Condition

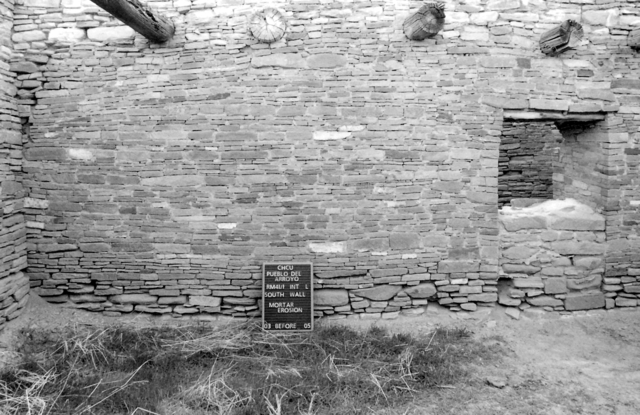

Photo type: Before 76341
Image #: 076341
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor

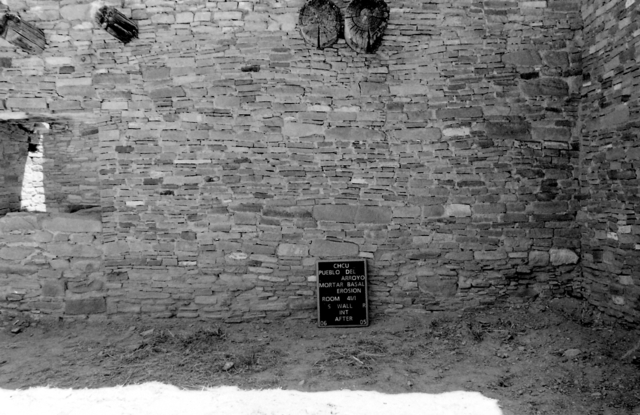

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: South Interior Year 2005
Treatment
Photo type: After 76140
Image #: 076140
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0
Treatment comment: Harold Suina, Paul Tso Sr. and Garry Joe all worked in this room.
Other Treatment:
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: South Interior Year 2005
Treatment

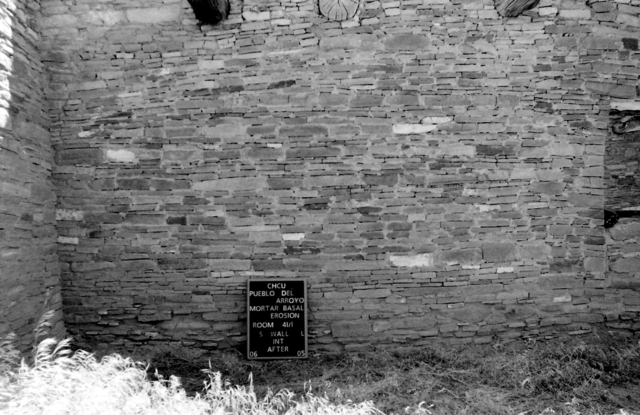

Photo type: After 76139
Image #: 076139
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0
Treatment comment: Harold Suina, Paul Tso Sr. and Garry Joe all worked in this room.
Other Treatment:
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: East Interior Year 2005
Condition

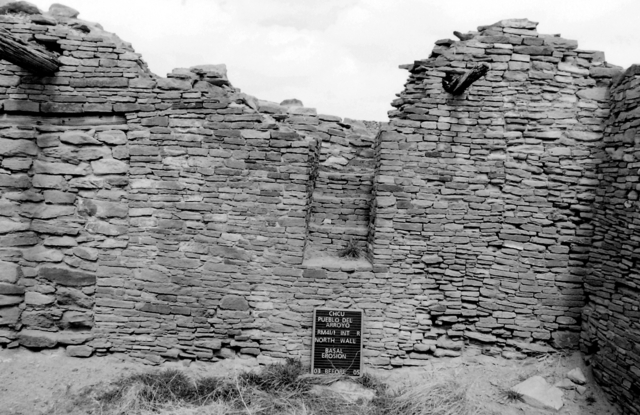

Photo type: Before 76340
Image #: 076340
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor
     Loose and cracked Wall Caps Poor

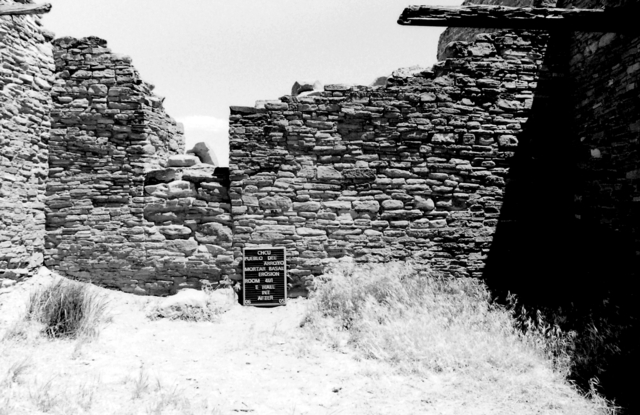

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: East Interior Year 2005
Treatment
Photo type: After 76137
Image #: 076137
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 12.5
Stone replaced (#): 8.0
Mortar (# buckets): 3.0
Treatment comment: Harold Suina, Paul Tso Sr. and Garry Joe all worked in this room.
Other Treatment:
     Replaced Stone(s)
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)
     Repaired loose and cracked wall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: North Interior Year 2005
Condition

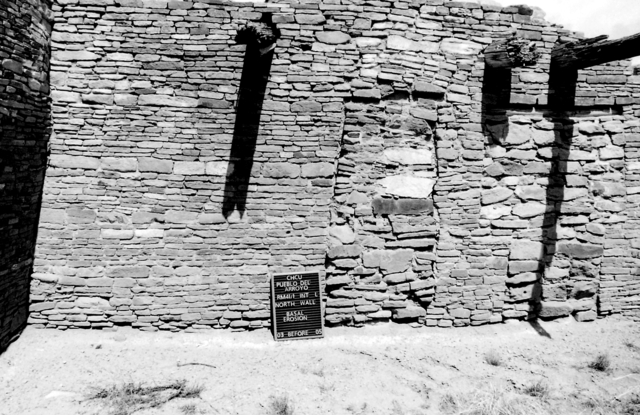

Photo type: Before 76339
Image #: 076339
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76338
Image #: 076338
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: North Interior Year 2005
Treatment

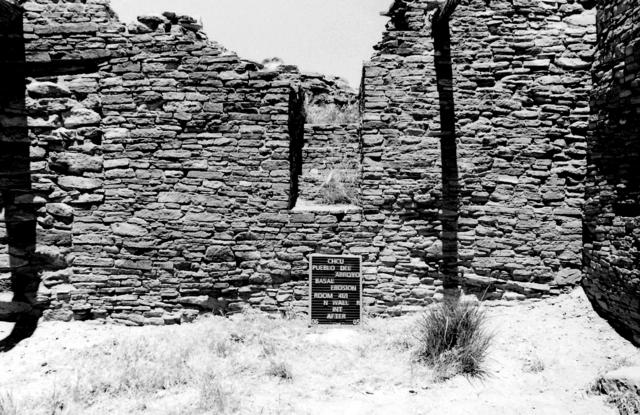

Photo type: After 76136
Image #: 076136
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 130.0
Stone replaced (#): 19.0
Mortar (# buckets): 4.0
Treatment comment: Harold Suina, Paul Tso Sr. and Garry Joe all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Mortar

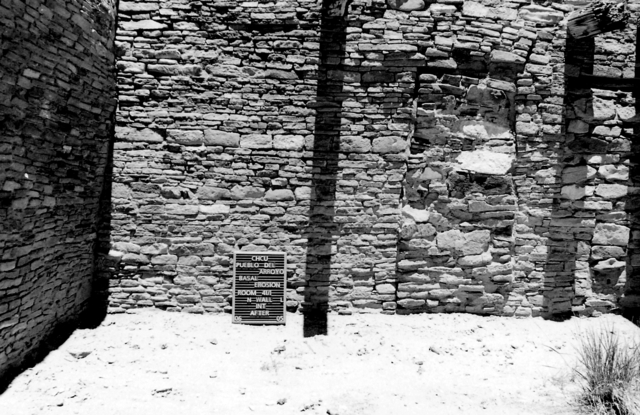

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Story: 1st Story Wall: North Interior Year 2005
Treatment
Photo type: After 76135
Image #: 076135
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 130.0
Stone replaced (#): 19.0
Mortar (# buckets): 4.0
Treatment comment: Harold Suina, Paul Tso Sr. and Garry Joe all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Year 2005
Backfill
Start: 21/6/2005 End: 29/6/2005 Person days:
Comments:
Specific Information
Cubic yards of fill: 18.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 2 L: Other: Other type:
Joint:
Y: 90: 45: 1 22: 1 Other: Other type:
Drain pipe length: 18 feet      Drain pipe diameter: 6 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to: room 37, outside roomblock to East
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: Before Backfill 76135
Image #: 076135
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: Before Backfill 76136
Image #: 076136
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: Before Backfill 76137
Image #: 076137
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: Before Backfill 76140
Image #: 076140
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: Before Backfill 76139
Image #: 076139
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: Before Backfill 76141
Image #: 076141
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill

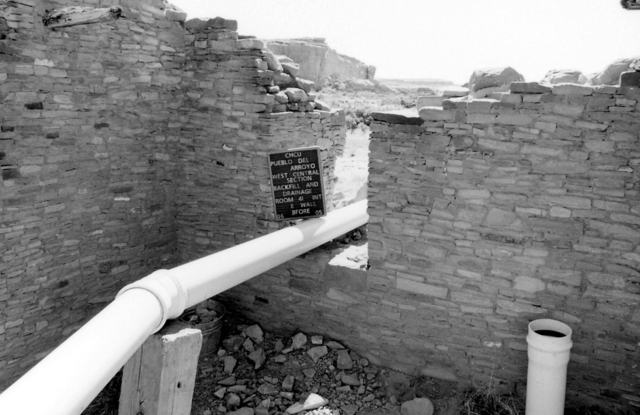

Photo type: During Backfill 76189
Image #: 076189
Catalog #:        Accession #: 801

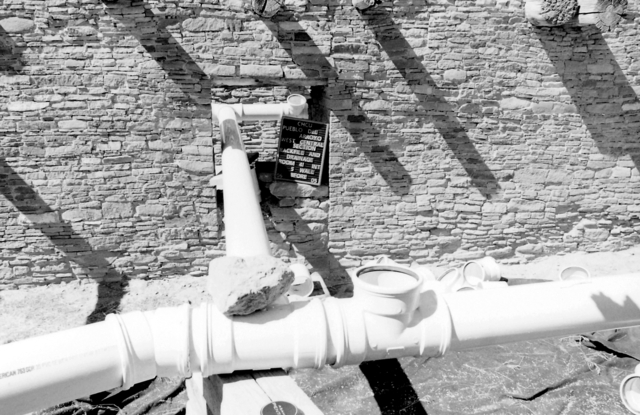

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: During Backfill 76188
Image #: 076188
Catalog #:        Accession #: 801

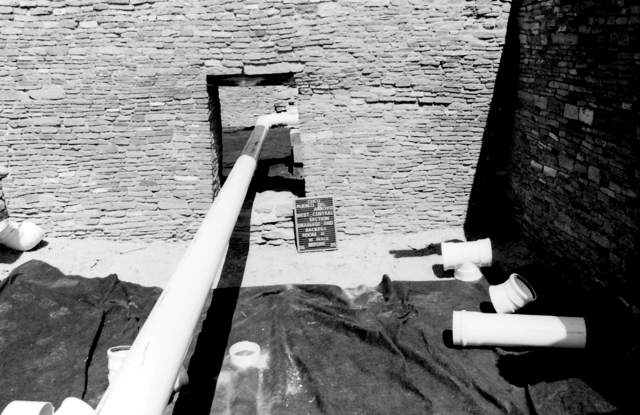

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: During Backfill 76133
Image #: 076133
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill

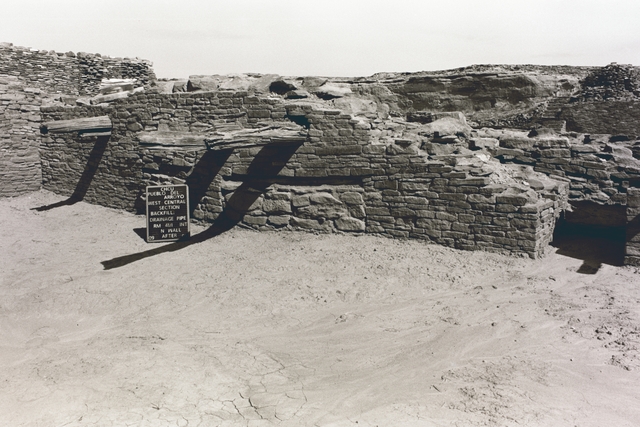

Photo type: After Backfill 76566
Image #: 076566
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill

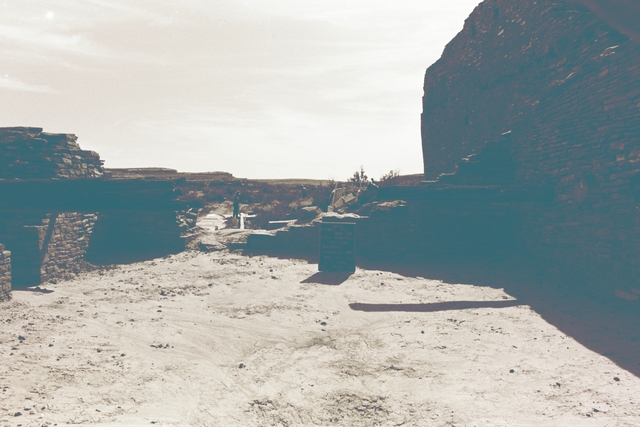

Photo type: After Backfill 76567
Image #: 076567
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: After Backfill 76568
Image #: 076568
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 41 Wall: Year 2005
Backfill
Photo type: After Backfill 76569
Image #: 076569
Catalog #:        Accession #: 801
