Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
8.0 Outside park Dirt Duraweld C (1:4)
4.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: SE Quad, SW Quad, NE Quad, NW Quad
Start: 6/4/2005 End: 12/4/2005 Person Days: 4.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: SE Quad Interior Year 2005
Condition
Photo type: Before 76246
Image #: 076246
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor
     Loose, Leaning, Bulging Lintel Stones Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: SE Quad Interior Year 2005
Treatment
Photo type: After 76264
Image #: 076264
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Masonry: 3.0
Stone replaced (#): 16.0
Mortar (# buckets): 2.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Mortar
     Reset Loose, Leaning, Bulging Lintel Stones
     Replaced Stone(s)

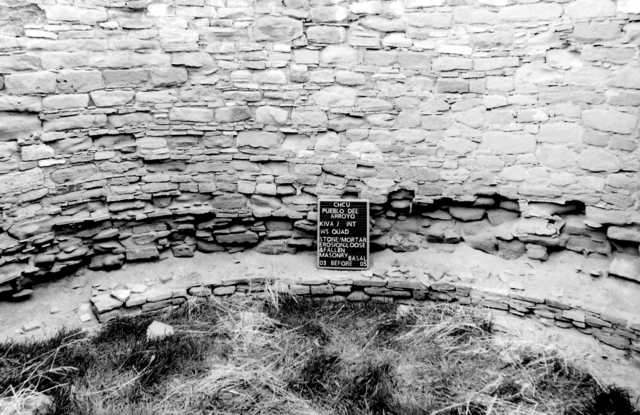

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: SW Quad Interior Year 2005
Condition
Photo type: Before 76247
Image #: 076247
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor
     Mortar Erosion Poor
     Loose, Leaning, Bulging Lintel Stones Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: SW Quad Interior Year 2005
Treatment
Photo type: After 76265
Image #: 076265
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 2.0
Masonry: 12.0
Stone replaced (#): 25.0
Mortar (# buckets): 2.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)
     Replaced Stone(s)
     Replaced Mortar
     Reset Loose, Leaning, Bulging Lintel Stones







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: NE Quad Interior Year 2005
Condition
Photo type: Before 76245
Image #: 076245
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Mortar Erosion Poor
     Loose or leaning or bulging masonry Poor
     Eroded Stone(s) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: NE Quad Interior Year 2005
Treatment
Photo type: After 76263
Image #: 076263
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 31.0
Stone replaced (#): 11.0
Mortar (# buckets): 1.75
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)
     Replaced Stone(s)
     Reset Loose, Leaning, Bulging Lintel Stones







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: NW Quad Interior Year 2005
Condition
Photo type: Before 76248
Image #: 076248
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Loose, Leaning, Bulging Lintel Stones Poor
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor
     Eroded Stone(s) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Story: 1st Story Wall: NW Quad Interior Year 2005
Treatment
Photo type: After 76266
Image #: 076266
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 2.0
Masonry: 2.0
Stone replaced (#): 8.0
Mortar (# buckets): 2.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Reset Loose, Leaning, Bulging Lintel Stones
     Replaced Mortar
     Replaced Stone(s)
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Year 2005
Backfill
Start: 30/6/2005 End: 5/7/2005 Person days: 1
Comments:
Specific Information
Cubic yards of fill: 8.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size: 18" hi
Capacity: 45.0 gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: Before Backfill 76263
Image #: 076263
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: Before Backfill 76264
Image #: 076264
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: Before Backfill 76265
Image #: 076265
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: Before Backfill 76266
Image #: 076266
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: During Backfill 76077
Image #: 076077
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: During Backfill 76078
Image #: 076078
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: After Backfill 76619
Image #: 076619
Catalog #:        Accession #: 801

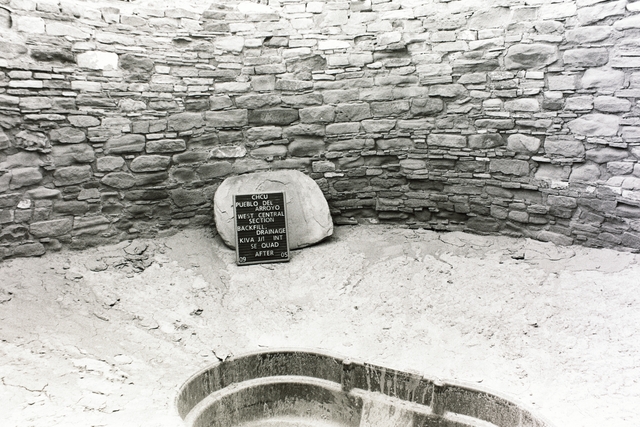

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: After Backfill 76620
Image #: 076620
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: After Backfill 76622
Image #: 076622
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva J Wall: Year 2005
Backfill
Photo type: After Backfill 76621
Image #: 076621
Catalog #:        Accession #: 801
