Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 24/3/2008 End: 6/4/2005 Person Days: 5.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: West Interior Year 2005
Condition
Photo type: Before 76291
Image #: 076291
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: West Interior Year 2005
Treatment
Photo type: After 76063
Image #: 076063
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Stone replaced (#): 5.0
Mortar (# buckets): 3.0
Treatment comment: Jacj Trujillo, John Atencio Jr. and Lew Chiquito all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: South Interior Year 2005
Condition
Photo type: Before 76290
Image #: 076290
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: South Interior Year 2005
Condition

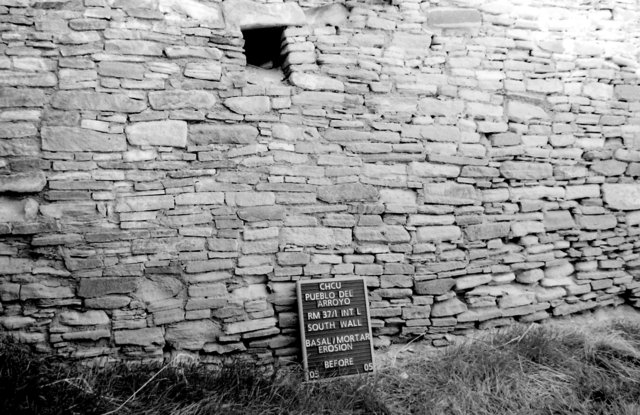

Photo type: Before 76289
Image #: 076289
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: South Interior Year 2005
Treatment
Photo type: After 76062
Image #: 076062
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 4.0
Stone replaced (#): 12.0
Mortar (# buckets): 9.0
Treatment comment: Jack Trujillo, John Atencio Jr. and Leo Chiquito all worked in this room.
Other Treatment:
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: South Interior Year 2005
Treatment
Photo type: After 76061
Image #: 076061
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 4.0
Stone replaced (#): 12.0
Mortar (# buckets): 9.0
Treatment comment: Jack Trujillo, John Atencio Jr. and Leo Chiquito all worked in this room.
Other Treatment:
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: East Interior Year 2005
Treatment
Photo type: After 76060
Image #: 076060
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Stone replaced (#): 2.0
Mortar (# buckets): 1.0
Treatment comment: Jack Trujillo, John Atencio Jr. and Leo Chiquito all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: East Interior Year 2005
Condition
Condition:
Stone Erosion: Poor
Mortar Erosion: Poor
Basal Erosion: Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76287
Image #: 076287
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76288
Image #: 076288
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: North Interior Year 2005
Condition
Photo type: Before 76286
Image #: 076286
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: North Interior Year 2005
Treatment
Photo type: After 76058
Image #: 076058
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 12.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0
Treatment comment: Jack Trujillo, John Atencio Jr. and Leo Chiquito all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Story: 1st Story Wall: North Interior Year 2005
Treatment
Photo type: After 76059
Image #: 076059
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 12.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0
Treatment comment: Jack Trujillo, John Atencio Jr. and Leo Chiquito all worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Year 2005
Backfill
Start: 13/7/2005 End: 18/7/2005 Person days: 2
Comments:
Specific Information
Cubic yards of fill: 18.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 2 L: Other: Other type:
Joint:
Y: 1 90: 2 45: 1 22: 1 Other: Other type:
Drain pipe length: 25 feet      Drain pipe diameter: 6, 4 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to: room 36, outside roomblock 41
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: During Backfill 76691
Image #: 076691
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: During Backfill 76690
Image #: 076690
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: After Backfill 76558
Image #: 076558
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: After Backfill 76559
Image #: 076559
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: After Backfill 76560
Image #: 076560
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: Before Backfill 76147
Image #: 076147
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: Before Backfill 76192
Image #: 076192
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: Before Backfill 76061
Image #: 076061
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: Before Backfill 76062
Image #: 076062
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: Before Backfill 76148
Image #: 076148
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: During Backfill 76465
Image #: 076465
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: During Backfill 76466
Image #: 076466
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 37 Wall: Year 2005
Backfill
Photo type: After Backfill 76561
Image #: 076561
Catalog #:        Accession #: 801
