Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, East, North
Start: 14/9/2005 End: 15/9/2005 Person Days: 2.0

Overall Comments:

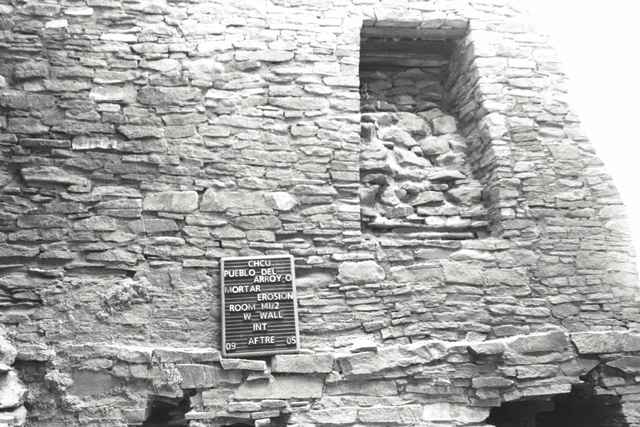

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Wall: West Interior Year 2005
Treatment
Photo type: After 76759
Image #: 076759
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 2.0
Stone replaced (#): 10.0
Mortar (# buckets): 2.0
Treatment comment: Jack Trujillo worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Wall: West Interior Year 2005
Condition
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Wall: East Interior Year 2005
Treatment

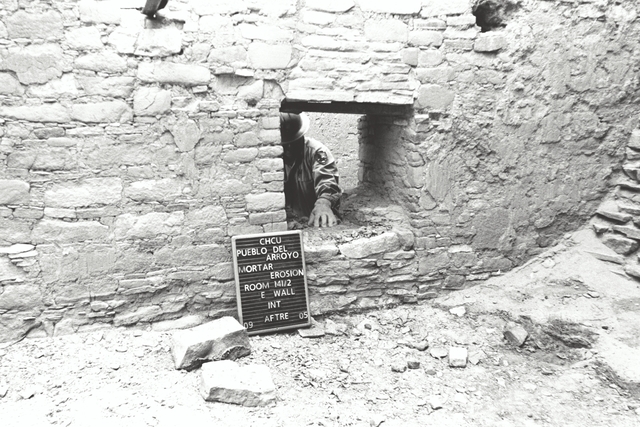

Photo type: After 76758
Image #: 076758
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 2.0
Stone replaced (#): 28.0
Mortar (# buckets): 3.0
Treatment comment: Jack Trujillo worked in this room.
Other Treatment:
     Repaired Doorway







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Wall: East Interior Year 2005
Condition
Condition:
Mortar Erosion: Poor
Other Conditions:
     Backfilling work in process Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Wall: North Interior Year 2005
Condition
Condition:
Mortar Erosion: Poor
Other Conditions:
      Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Story: 2nd Story Wall: North Interior Year 2005
Treatment
Treatment:
Repointing (sq ft): 2.0
Stone fresh: 15.0
Mortar (# buckets): 3.0
Treatment comment: Jack Trujillo worked in this room.
Other Treatment:
     Built a Drywall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Year 2005
Backfill
Start: 14/9/2005 End: 15/9/2005 Person days: 1
Comments:
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 90 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: 9 feet      Drain pipe diameter: 4 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to: room 139
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill
Photo type: Before Backfill 76758
Image #: 076758
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill
Photo type: Before Backfill 76759
Image #: 076759
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

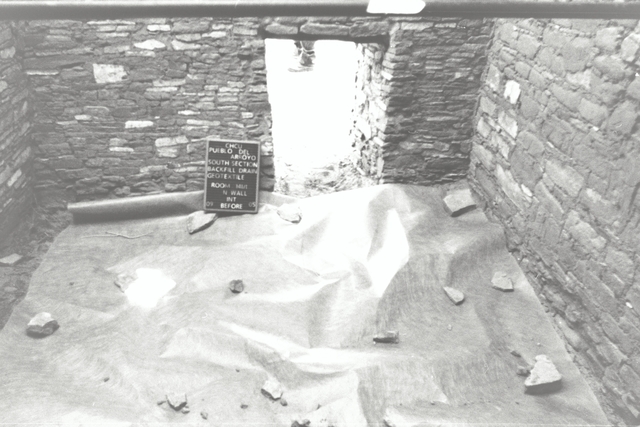

Photo type: During Backfill 76760
Image #: 076760
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

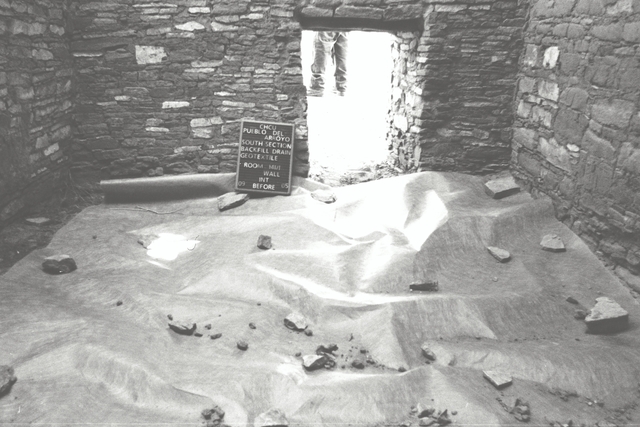

Photo type: During Backfill 76761
Image #: 076761
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

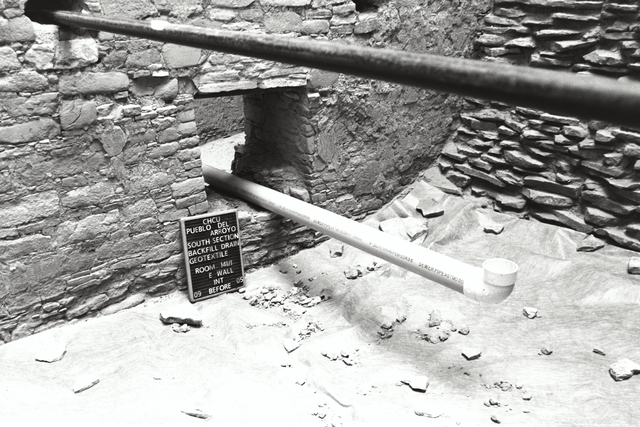

Photo type: During Backfill 76763
Image #: 076763
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

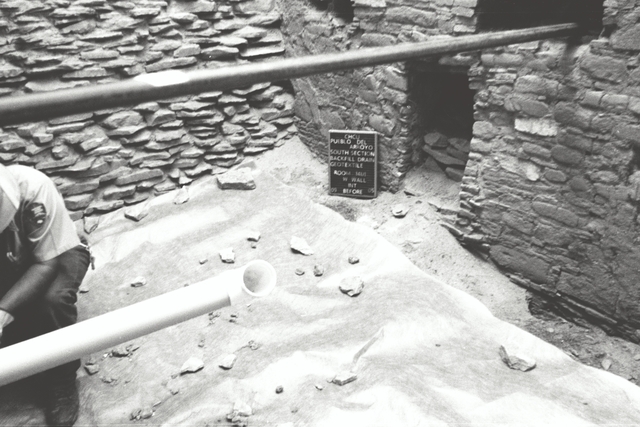

Photo type: During Backfill 76762
Image #: 076762
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill
Photo type: After Backfill 76864
Image #: 076864
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill
Photo type: After Backfill 76865
Image #: 076865
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

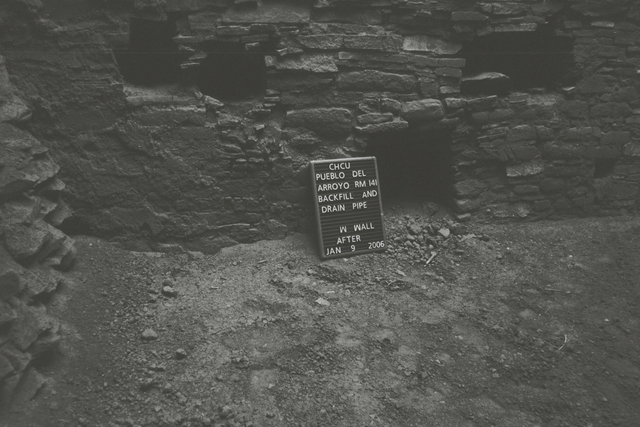

Photo type: After Backfill 76866
Image #: 076866
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

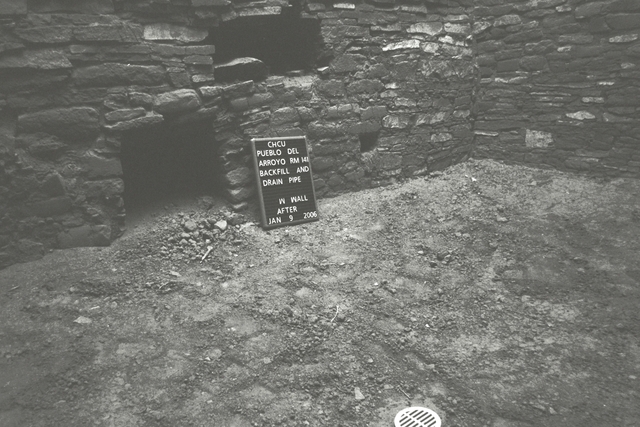

Photo type: After Backfill 76867
Image #: 076867
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 141 Wall: Year 2005
Backfill

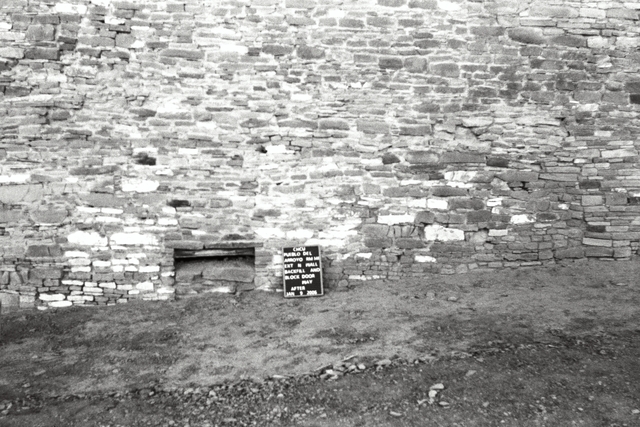

Photo type: After Backfill 76868
Image #: 076868
Catalog #:        Accession #: 801
