Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Story: 2nd Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 Outside park Dirt Duraweld C (1:4)
1.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South
Start: 19/4/2005 End: 20/4/2005 Person Days: 1.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Story: 2nd Story Wall: West Interior Year 2005
Condition

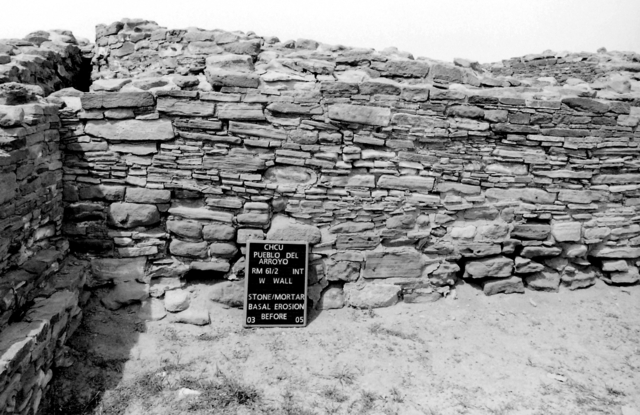

Photo type: Before 76309
Image #: 076309
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Story: 2nd Story Wall: West Interior Year 2005
Treatment

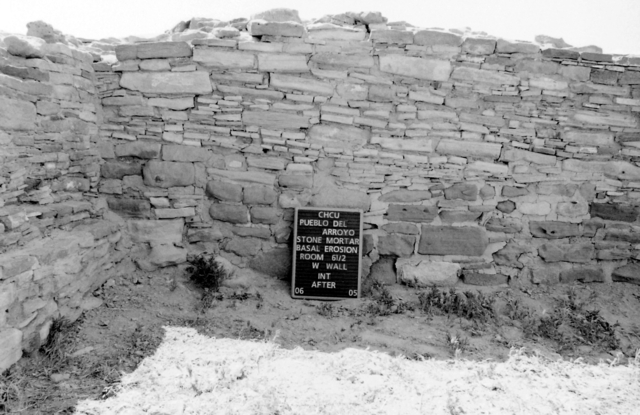

Photo type: After 76183
Image #: 076183
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Masonry: 2.0
Stone replaced (#): 16.0
Mortar (# buckets): 3.0
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Replaced Stone(s)
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Story: 2nd Story Wall: South Interior Year 2005
Condition

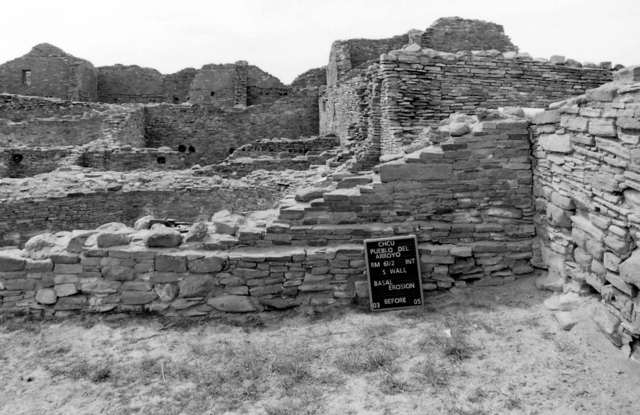

Photo type: Before 86308
Image #: 086308
Catalog #:        Accession #:
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Story: 2nd Story Wall: South Interior Year 2005
Treatment

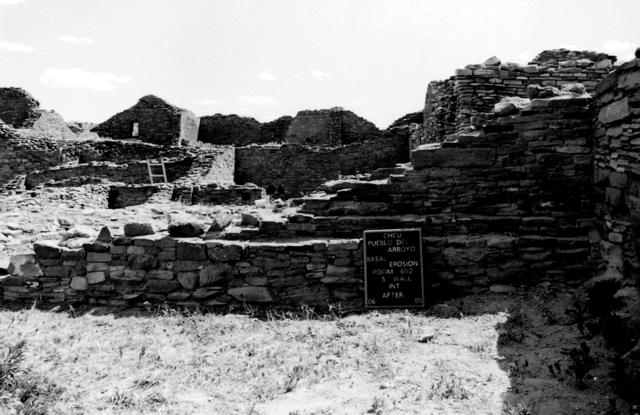

Photo type: After 76134
Image #: 076134
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 2.0
Masonry: 2.5
Stone replaced (#): 8.0
Mortar (# buckets): 2.25
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Year 2005
Backfill
Start: Not specified/Not specified/2005 End: Not specified/Not specified/2005 Person days:
Comments: no work done? photos onle
Specific Information
Cubic yards of fill:
Backfill source type:
Backfill other:
Cloth barrier type:
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile:
Basin size:
Capacity: gallons
Wood
Number of pieces buried:
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Wall: Year 2005
Backfill
Photo type: Before Backfill 76134
Image #: 076134
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Wall: Year 2005
Backfill
Photo type: Before Backfill 76183
Image #: 076183
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Wall: Year 2005
Backfill

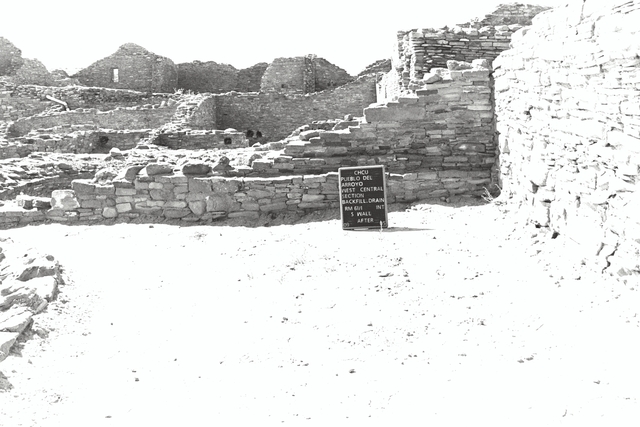

Photo type: After Backfill 76543
Image #: 076543
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 61 Wall: Year 2005
Backfill

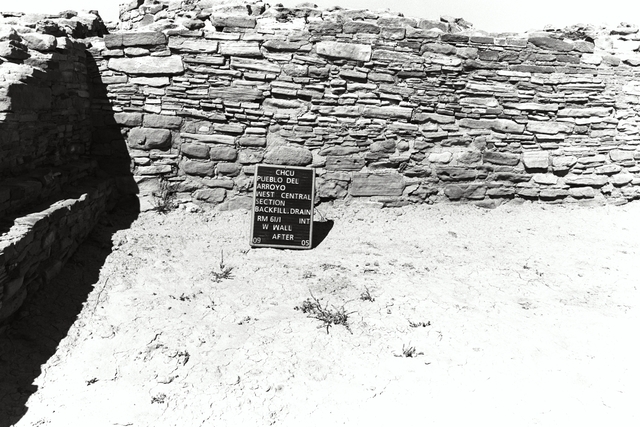

Photo type: After Backfill 76542
Image #: 076542
Catalog #:        Accession #: 801
