Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
8.0 Outside park Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: NE Quad, SE Quad, NW Quad, SW Quad
Start: 13/4/2005 End: 28/4/2005 Person Days: 6.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: NE Quad Interior Year 2005
Condition

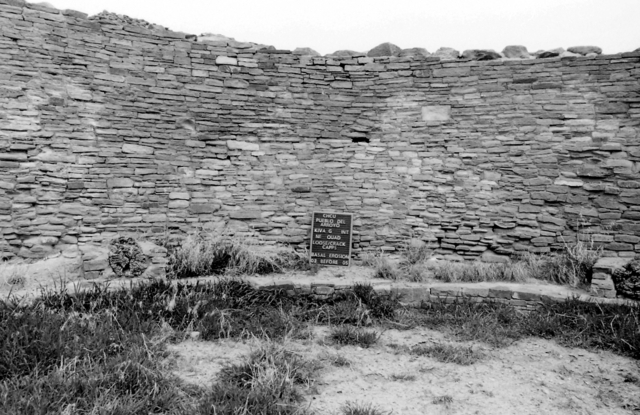

Photo type: Before 76320
Image #: 076320
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Loose and cracked Wall Caps Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: NE Quad Interior Year 2005
Treatment

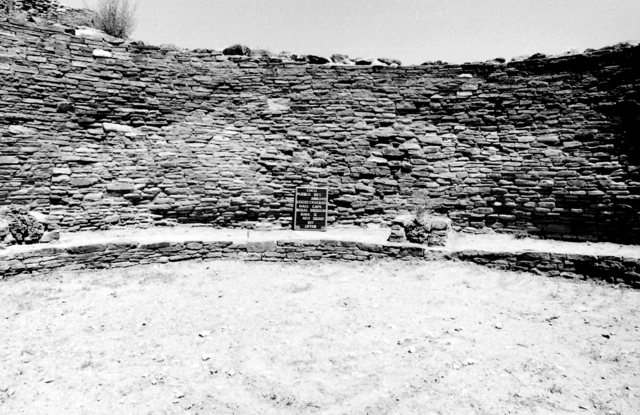

Photo type: After 76155
Image #: 076155
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 8.0
Stone replaced (#): 2.0
Mortar (# buckets): 1.5
Treatment comment: Paul Tso Sr. worked in this room.
Other Treatment:
     Repaired loose and cracked wall
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: SE Quad Interior Year 2005
Condition

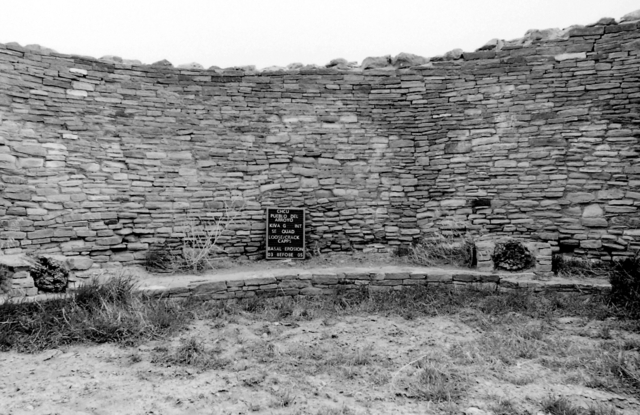

Photo type: Before 76321
Image #: 076321
Catalog #: 85208        Accession #: 801
Condition:
Loose wall caps: Poor
Mortar Erosion: Poor
Other Conditions:
     Basal Erosion (mortar/stone) Poor
     Mortar Erosion Poor
     Loose and cracked Wall Caps Poor
     Loose, Leaning, Bulging Lintel Stones Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: SE Quad Interior Year 2005
Treatment

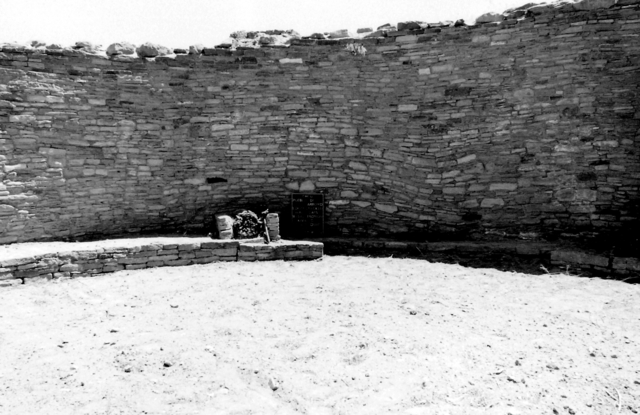

Photo type: After 76156
Image #: 076156
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 6.0
Masonry: 6.0
Mortar (# buckets): 1.0
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Replaced Mortar
     Repaired Basal erosion (mortar/stone)
     Reset Loose, Leaning, Bulging Lintel Stones
     Repaired loose and cracked wall







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: NW Quad Interior Year 2005
Condition

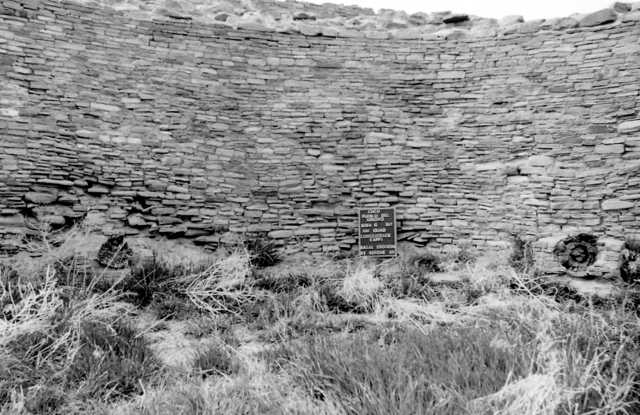

Photo type: Before 76323
Image #: 076323
Catalog #: 85208        Accession #: 801
Condition:
Other Conditions:
     Basal Erosion (mortar/stone) Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: NW Quad Interior Year 2005
Treatment

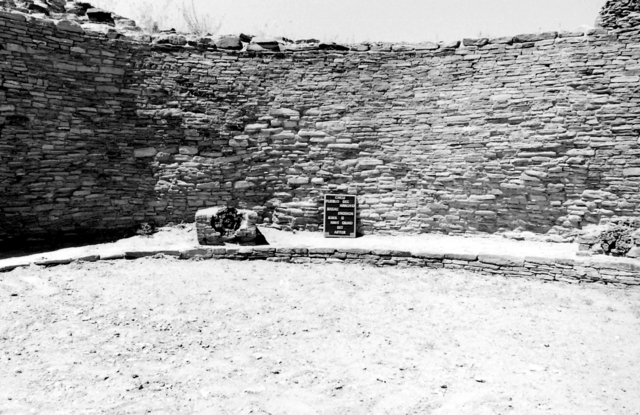

Photo type: After 76158
Image #: 076158
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 20.0
Masonry: 9.0
Stone replaced (#): 35.0
Mortar (# buckets): 4.5
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: SW Quad Interior Year 2005
Condition

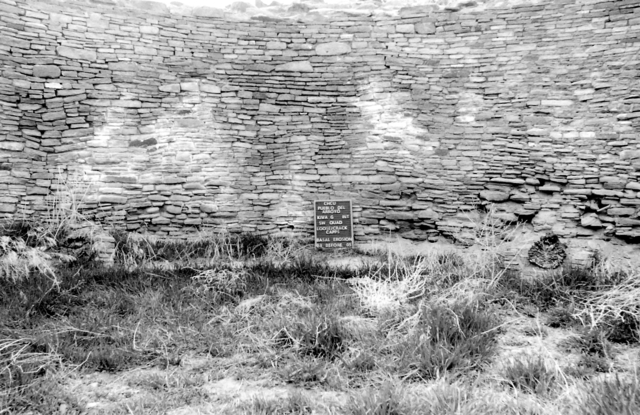

Photo type: Before 76322
Image #: 076322
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Eroded Stone(s) Poor
     Basal Erosion (mortar/stone) Poor
     Loose, Leaning, Bulging Lintel Stones Poor
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Story: 1st Story Wall: SW Quad Interior Year 2005
Treatment

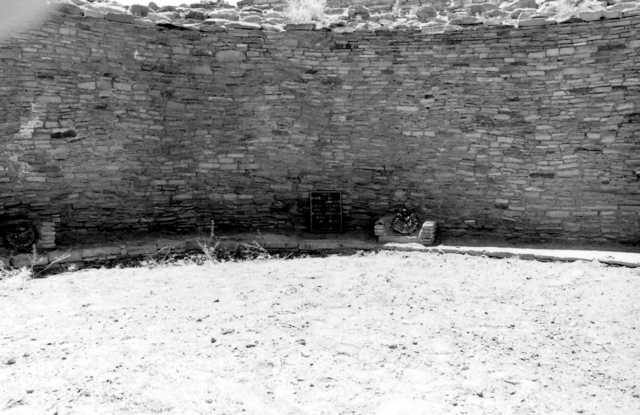

Photo type: After 76157
Image #: 076157
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 27.0
Masonry: 4.0
Stone replaced (#): 20.0
Mortar (# buckets): 1.5
Treatment comment: Ben Charley worked in this room.
Other Treatment:
     Replaced Mortar
     Replaced Stone(s)
     Reset Loose, Leaning, Bulging Lintel Stones
     Repaired Basal erosion (mortar/stone)







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Year 2005
Backfill
Start: 22/8/2005 End: 25/8/2005 Person days: 4
Comments:
Specific Information
Cubic yards of fill: 18.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 1.0
Basin size: 18" hi
Capacity: 45.0 gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill
Photo type: Before Backfill 76155
Image #: 076155
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill
Photo type: Before Backfill 76156
Image #: 076156
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill
Photo type: Before Backfill 76157
Image #: 076157
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill
Photo type: Before Backfill 76158
Image #: 076158
Catalog #: 85208        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill

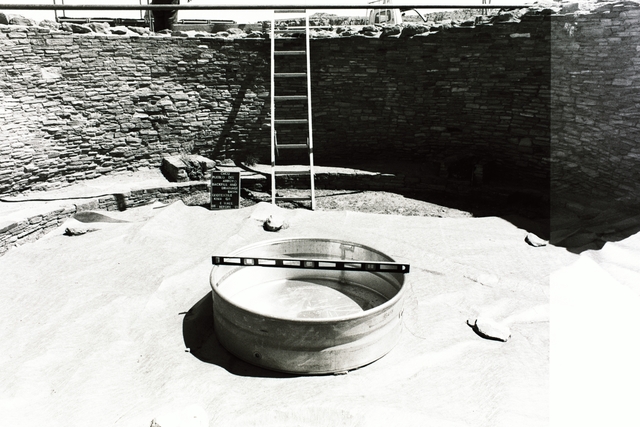

Photo type: During Backfill 76648
Image #: 076648
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill

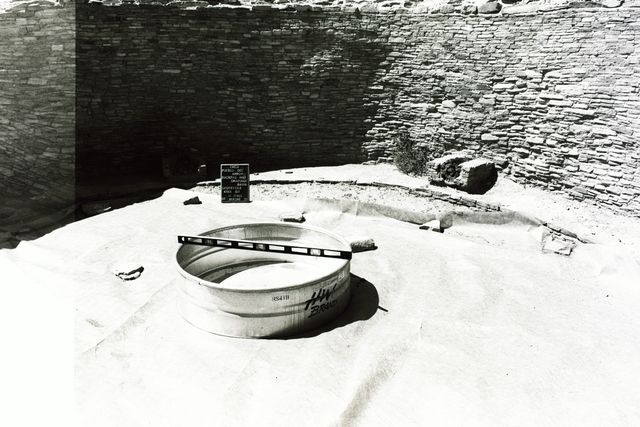

Photo type: During Backfill 76649
Image #: 076649
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill

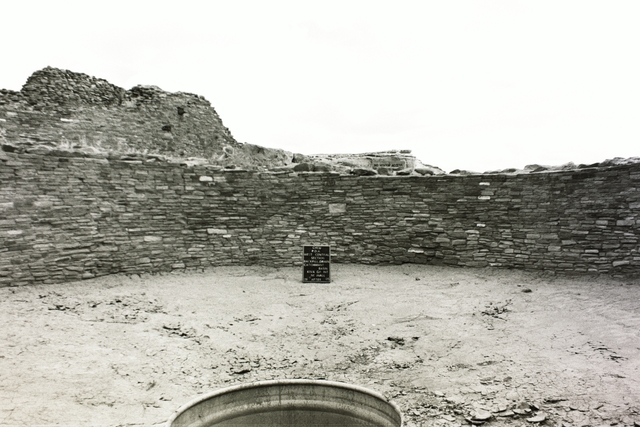

Photo type: After Backfill 76607
Image #: 076607
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill
Photo type: After Backfill 76608
Image #: 076608
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill

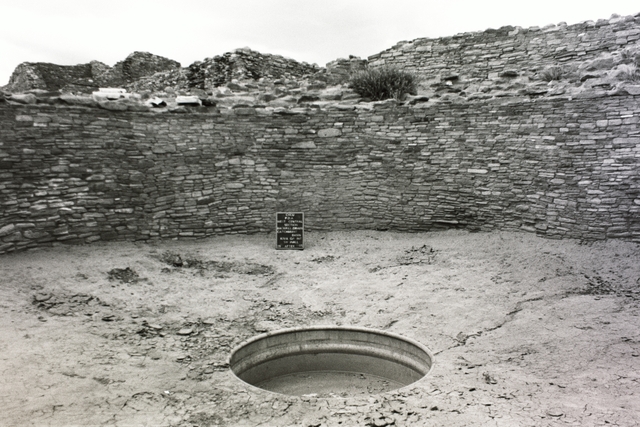

Photo type: After Backfill 76609
Image #: 076609
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Kiva G Wall: Year 2005
Backfill
Photo type: After Backfill 76610
Image #: 076610
Catalog #:        Accession #: 801
