Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
4.0 BLM quarry Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East
Start: 30/8/2005 End: 31/8/2005 Person Days: 2.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: West Interior Year 2005
Condition

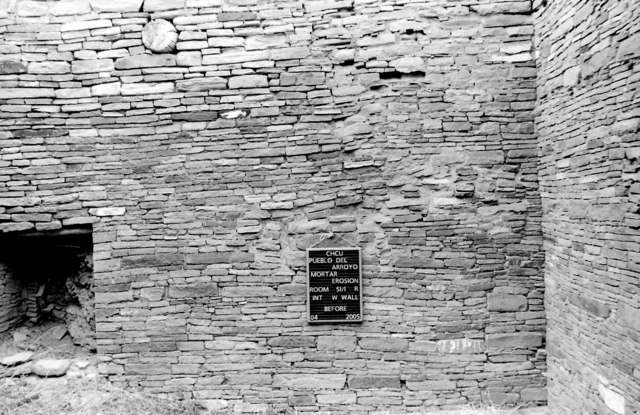

Photo type: Before 76454
Image #: 076454
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: West Interior Year 2005
Condition

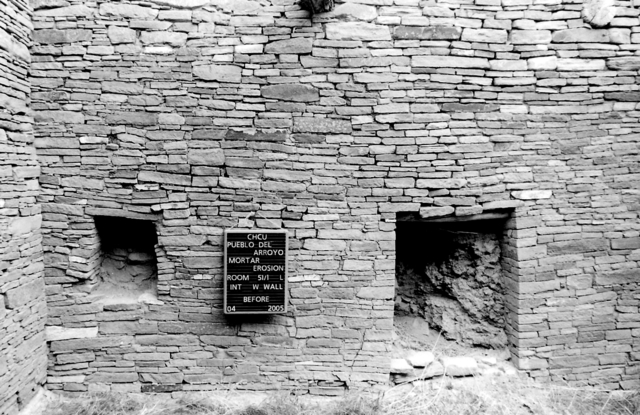

Photo type: Before 76453
Image #: 076453
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: West Interior Year 2005
Treatment

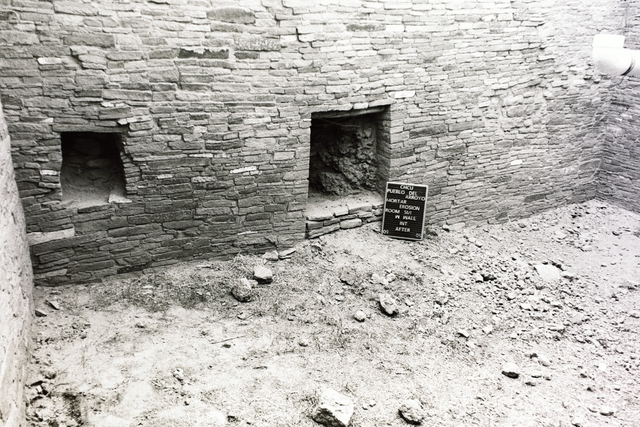

Photo type: After 76689
Image #: 076689
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 3.0
Stone replaced (#): 3.0
Mortar (# buckets): 1.0
Treatment comment: John Atencio Jr. worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: South Interior Year 2005
Condition
Photo type: Before 76452
Image #: 076452
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: South Interior Year 2005
Treatment

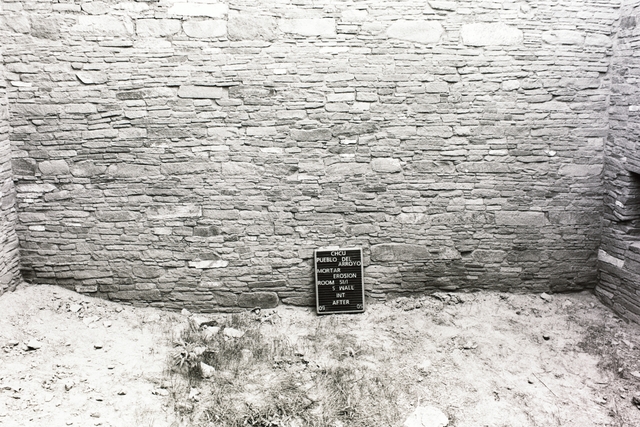

Photo type: After 76688
Image #: 076688
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 5.0
Stone replaced (#): 5.0
Mortar (# buckets): 4.0
Treatment comment: John Atencio Jr. worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: East Interior Year 2005
Condition

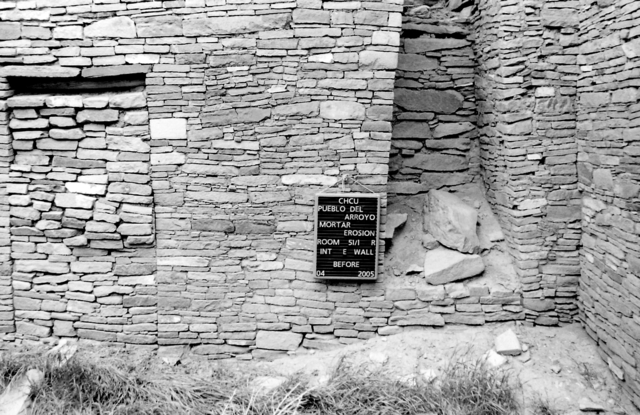

Photo type: Before 76451
Image #: 076451
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: East Interior Year 2005
Condition

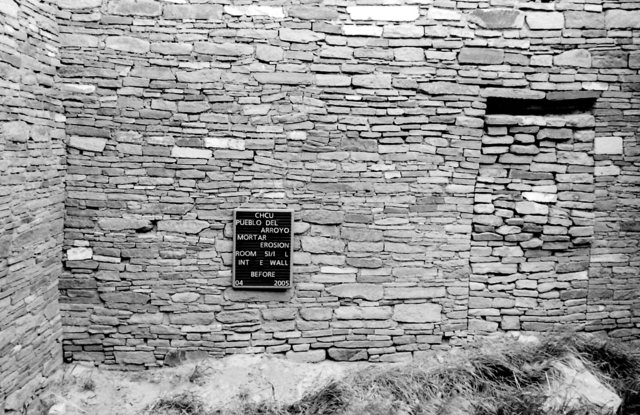

Photo type: Before 76450
Image #: 076450
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Story: 1st Story Wall: East Interior Year 2005
Treatment
Photo type: After 76687
Image #: 076687
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 4.0
Stone replaced (#): 5.0
Mortar (# buckets): 2.0
Treatment comment: John Atencio Jr. worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Year 2005
Backfill
Start: 8/9/2005 End: 13/9/2005 Person days: 3
Comments:
Specific Information
Cubic yards of fill: 20.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: L: Other: Other type:
Joint:
Y: 90: 1 45: 22: Other: Other type:
Drain pipe length: 9 feet      Drain pipe diameter: 4 inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to: room 54
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

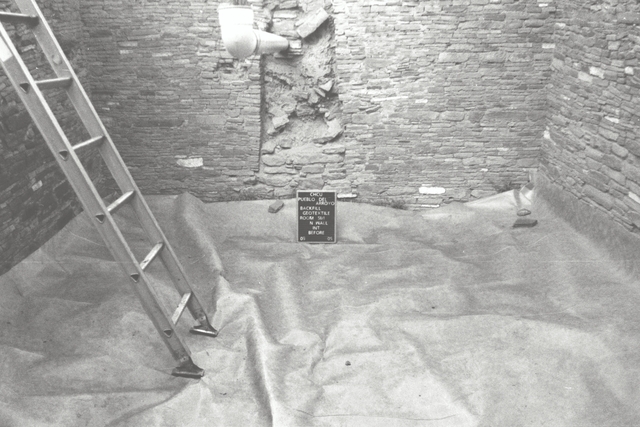

Photo type: Before Backfill 76751
Image #: 076751
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

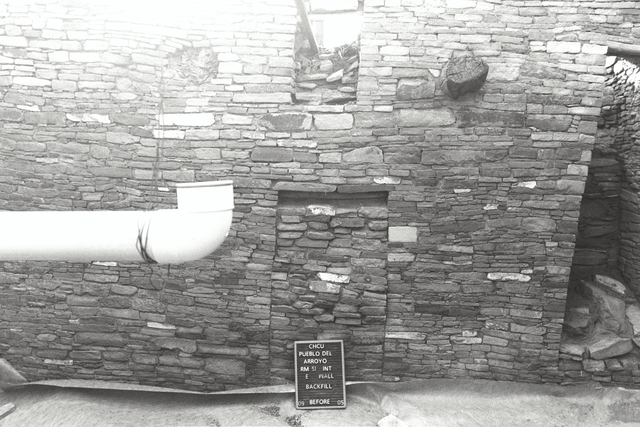

Photo type: Before Backfill 76752
Image #: 076752
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

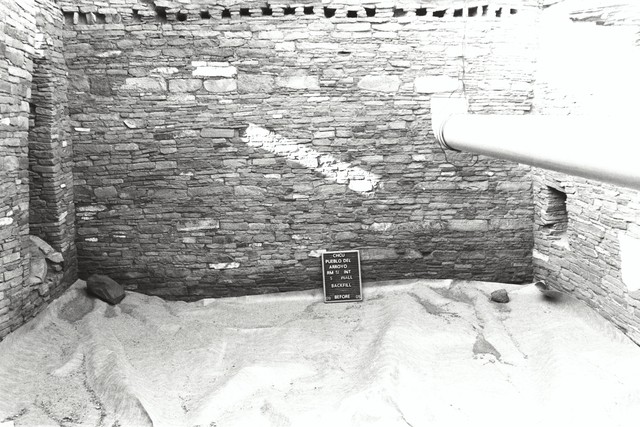

Photo type: Before Backfill 76754
Image #: 076754
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill
Photo type: During Backfill 76755
Image #: 076755
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill
Photo type: During Backfill 76753
Image #: 076756
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill
Photo type: During Backfill 76753
Image #: 076753
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill
Photo type: During Backfill 76753
Image #: 076753
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill
Photo type: After Backfill 76535
Image #: 076535
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

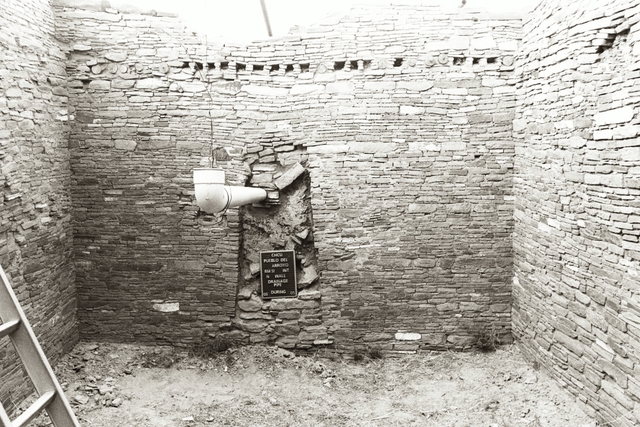

Photo type: During Backfill 76686
Image #: 076686
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

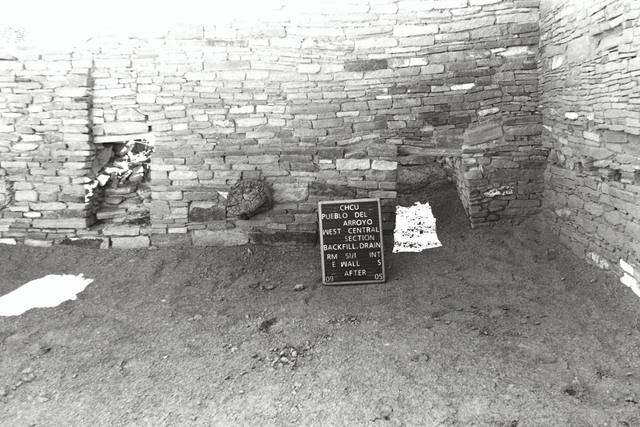

Photo type: After Backfill 76536
Image #: 076536
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

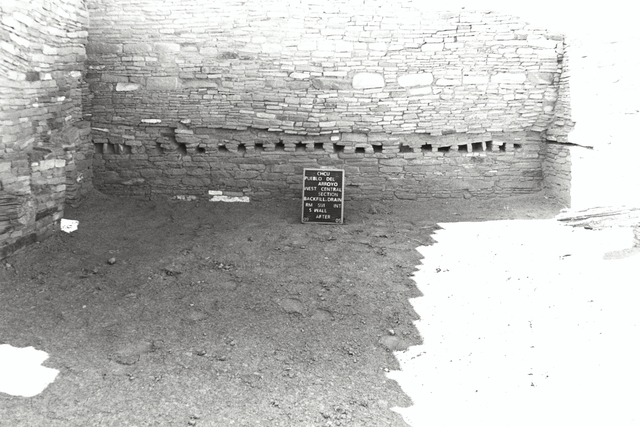

Photo type: After Backfill 76537
Image #: 076537
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

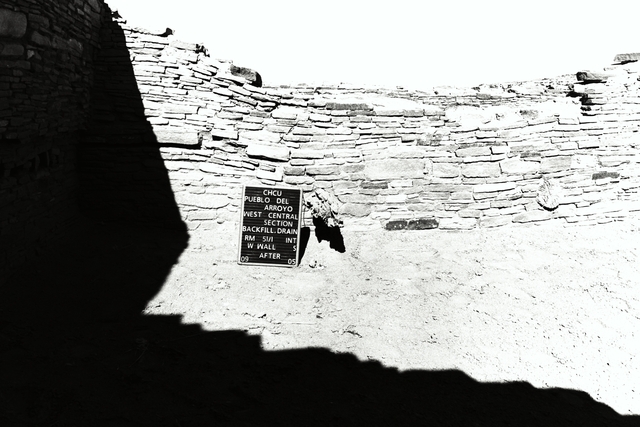

Photo type: After Backfill 76538
Image #: 076538
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

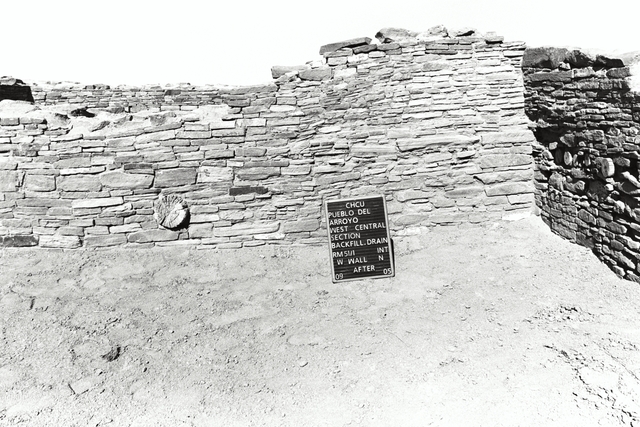

Photo type: After Backfill 76539
Image #: 076539
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 51 Wall: Year 2005
Backfill

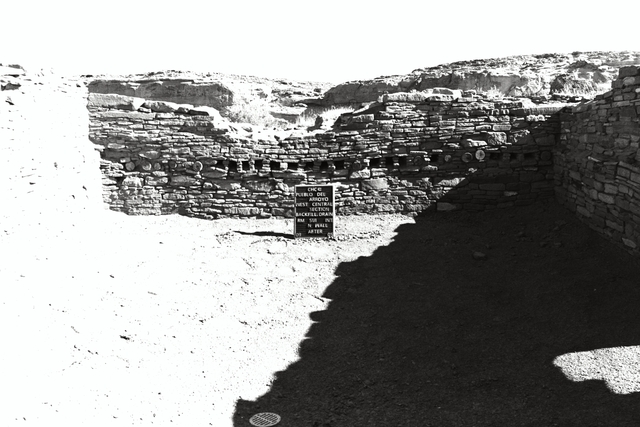

Photo type: After Backfill 76534
Image #: 076534
Catalog #:        Accession #: 801
