Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Year 2005
Capping Mortars
# of buckets Source Material
Dirt Cans Cups of color
Sand Describe Color:
Clay Duraweld-C (1:4)
Cement Duraweld-C (other)
Comments:
Wall Mortar
# of buckets Source Material
8.0 Outside park Dirt Duraweld C (1:4)
2.0 Purchase Sand Duraweld (other)
Clay
Comments:
Walls recorded: West, South, East, North
Start: 3/5/2005 End: 12/5/2005 Person Days: 5.0

Overall Comments:


Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: West Interior Year 2005
Condition

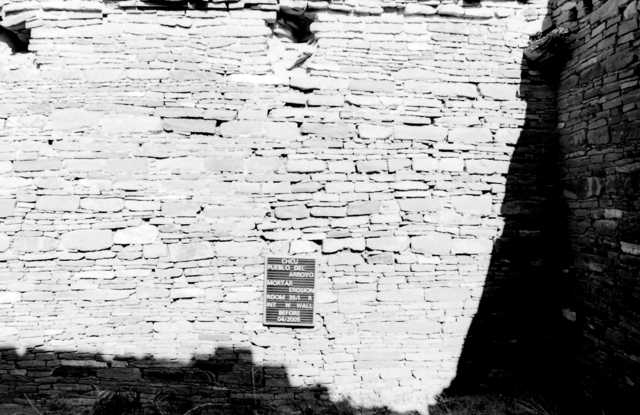

Photo type: Before 76389
Image #: 076389
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: West Interior Year 2005
Condition

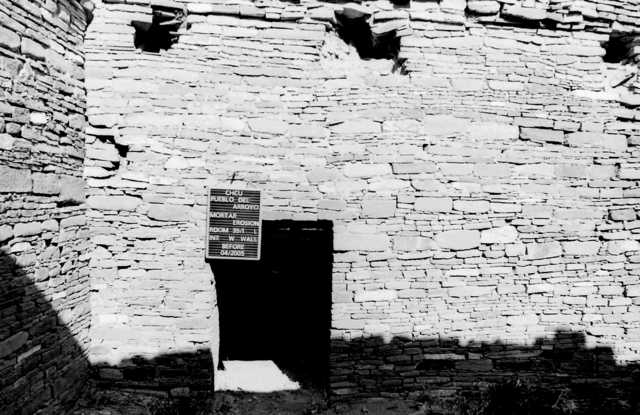

Photo type: Before 76388
Image #: 076388
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: West Interior Year 2005
Treatment

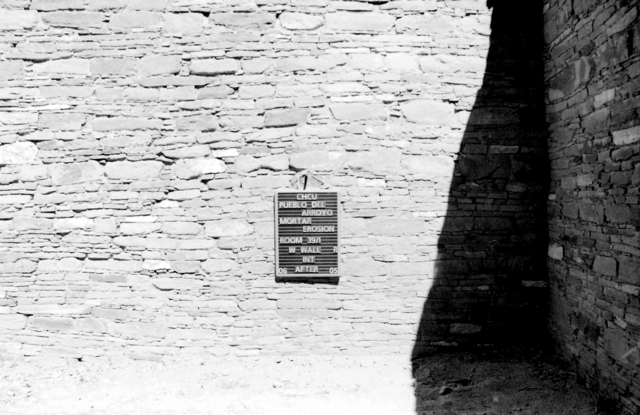

Photo type: After 76123
Image #: 076123
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 36.0
Stone replaced (#): 5.0
Mortar (# buckets): 2.5
Treatment comment: Leo H. Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: West Interior Year 2005
Treatment

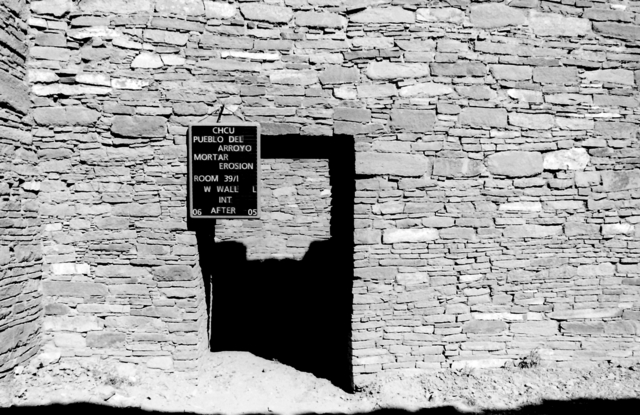

Photo type: After 76122
Image #: 076122
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 36.0
Stone replaced (#): 5.0
Mortar (# buckets): 2.5
Treatment comment: Leo H. Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: South Interior Year 2005
Condition

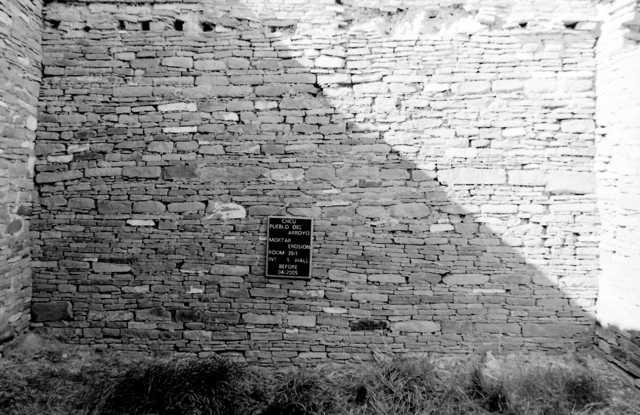

Photo type: Before 76387
Image #: 076387
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: South Interior Year 2005
Treatment

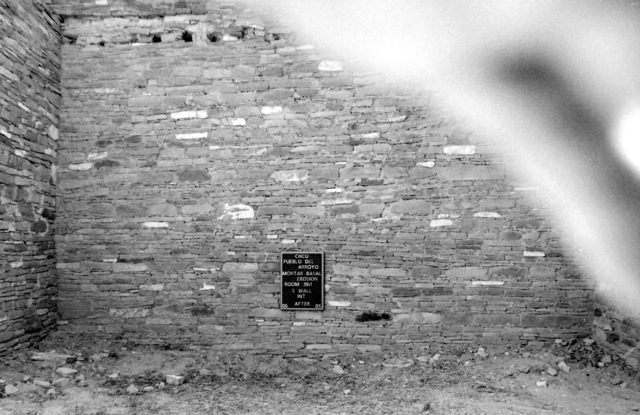

Photo type: After 76121
Image #: 076121
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 75.0
Stone replaced (#): 4.0
Mortar (# buckets): 3.5
Treatment comment: Leo H. Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: East Interior Year 2005
Condition

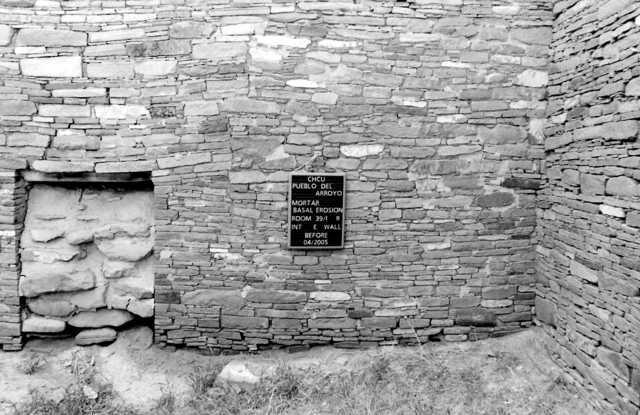

Photo type: Before 76386
Image #: 076386
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: East Interior Year 2005
Condition

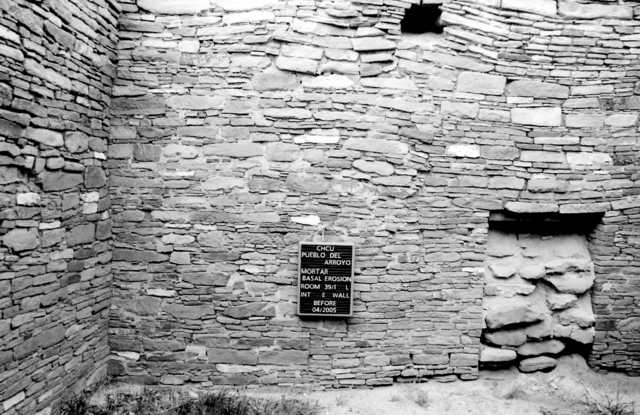

Photo type: Before 76385
Image #: 076385
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: East Interior Year 2005
Treatment

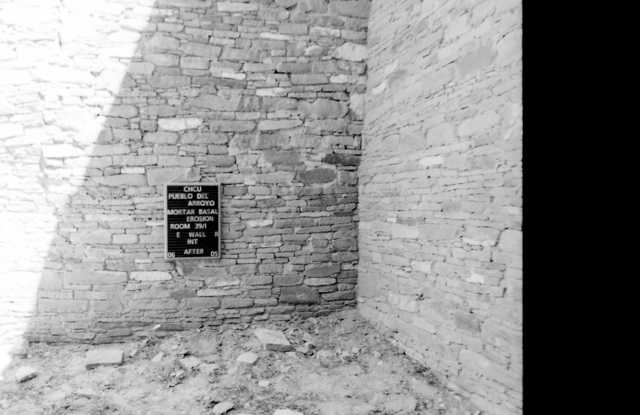

Photo type: After 76284
Image #: 076284
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 112.0
Stone replaced (#): 12.0
Mortar (# buckets): 4.0
Treatment comment: Leo H. Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: East Interior Year 2005
Treatment

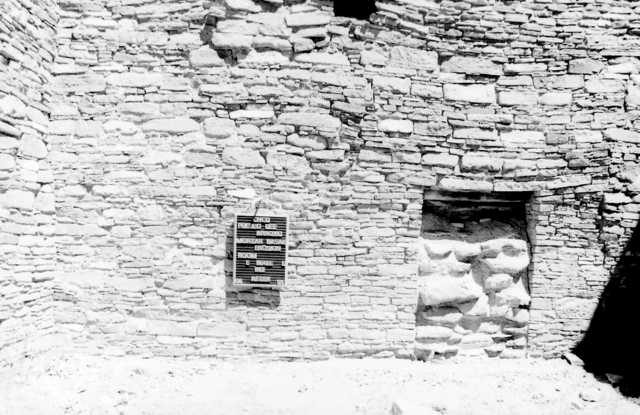

Photo type: After 76283
Image #: 076283
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 112.0
Stone replaced (#): 12.0
Mortar (# buckets): 4.0
Treatment comment: Leo H. Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: North Interior Year 2005
Condition

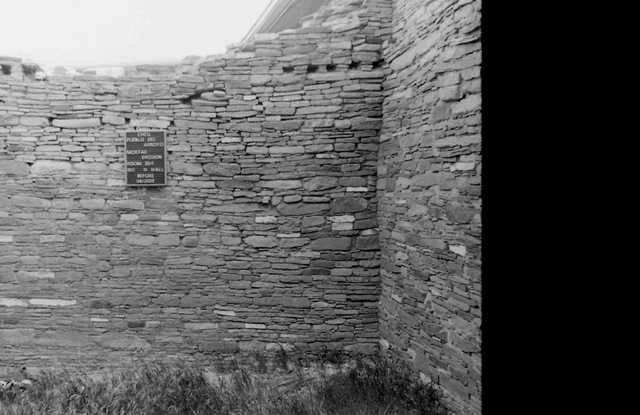

Photo type: Before 76382
Image #: 076382
Catalog #: 85208        Accession #: 801
Condition:
Mortar Erosion: Poor
Other Conditions:
     Mortar Erosion Poor







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Story: 1st Story Wall: North Interior Year 2005
Treatment

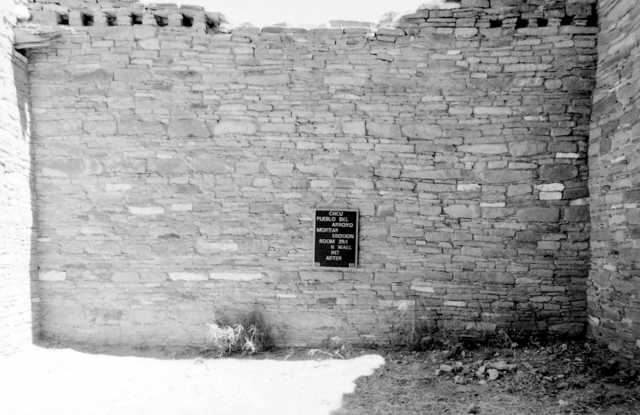

Photo type: After 76277
Image #: 076277
Catalog #: 85208        Accession #: 801
Treatment:
Repointing (sq ft): 36.0
Stone replaced (#): 10.0
Mortar (# buckets): 3.0
Treatment comment: Leo H. Chiquito and John Atencio Jr. both worked in this room.
Other Treatment:
     Replaced Mortar







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Year 2005
Backfill
Start: 25/7/2005 End: 1/8/2005 Person days: 2
Comments: TC drain goes to room 38
Specific Information
Cubic yards of fill: 18.0
Backfill source type: BLM Quarry
Backfill other:
Cloth barrier type: Geotextile
Cloth barrier other:
Other textile type:
Other textile other:
Other textile purpose:
Drain Information
Inlet:
T: 0 L: Other: Other type:
Joint:
Y: 90: 45: 22: Other: Other type:
Drain pipe length: feet      Drain pipe diameter: inches
Avgerage height above geotextile: feet
Drain pipe enters room through:      Other:
Drain pipe leaves room through:      Other:
Drain pipe leaves goes to:
Evaporative Basins
Basin installed
Height above geotextile: 0.0
Basin size:
Capacity: gallons
Wood
Number of pieces buried: none
Note:

Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill
Photo type: Before Backfill 76794
Image #: 076694
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill

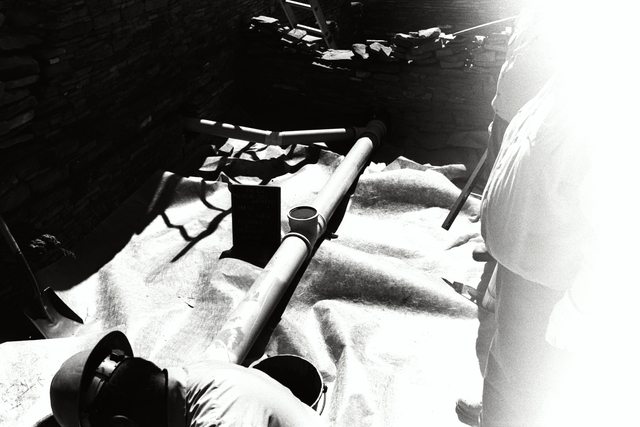

Photo type: Before Backfill 76797
Image #: 076697
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill

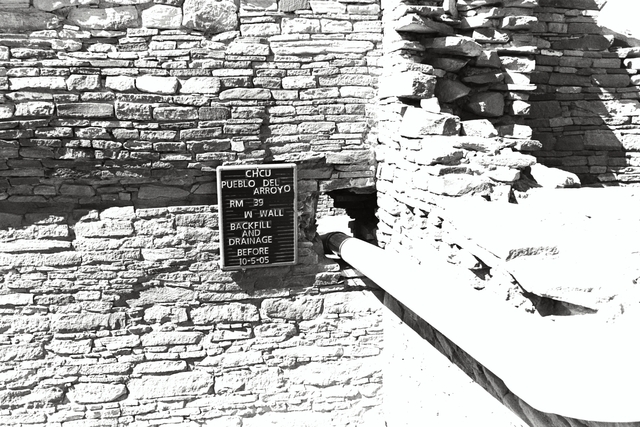

Photo type: Before Backfill 76795
Image #: 076695
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill

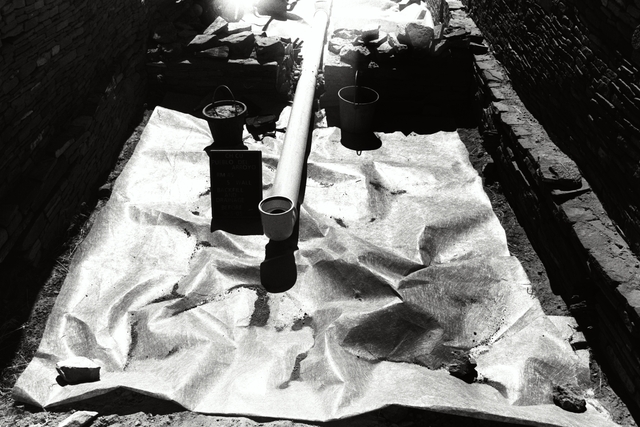

Photo type: Before Backfill 76796
Image #: 076696
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill

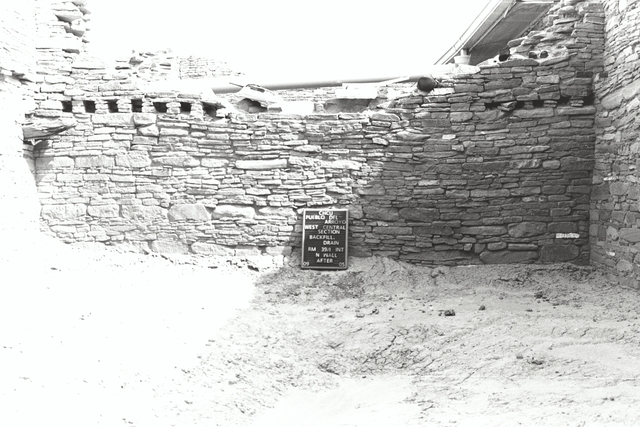

Photo type: After Backfill 76748
Image #: 076748
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill

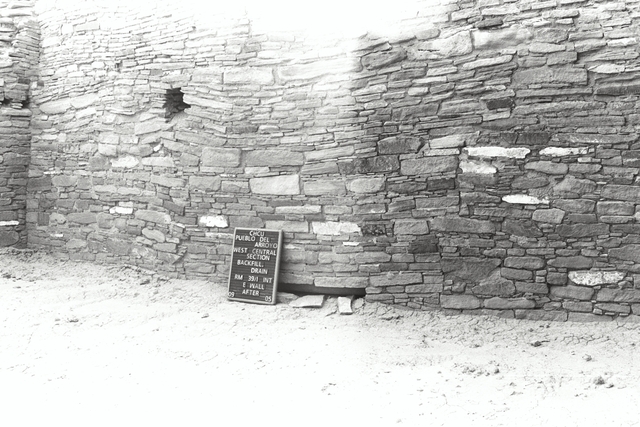

Photo type: After Backfill 76749
Image #: 076749
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill

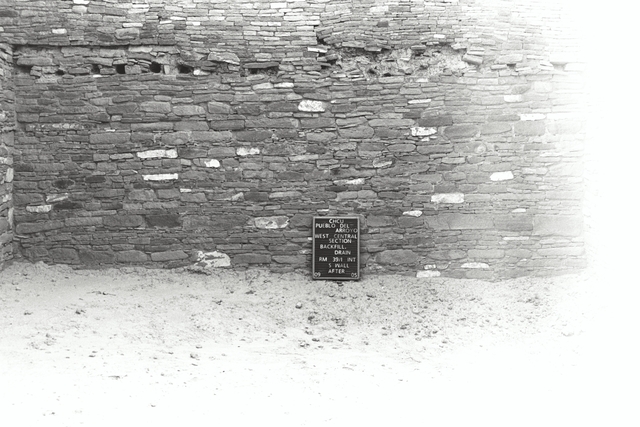

Photo type: After Backfill 76750
Image #: 076750
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill
Photo type: After Backfill 76812
Image #: 076812
Catalog #:        Accession #: 801







Pueblo del Arroyo & Tri-wall 29SJ 1947 Room: Room 39 Wall: Year 2005
Backfill
Photo type: After Backfill 76795
Image #: 076795
Catalog #:        Accession #: 801
